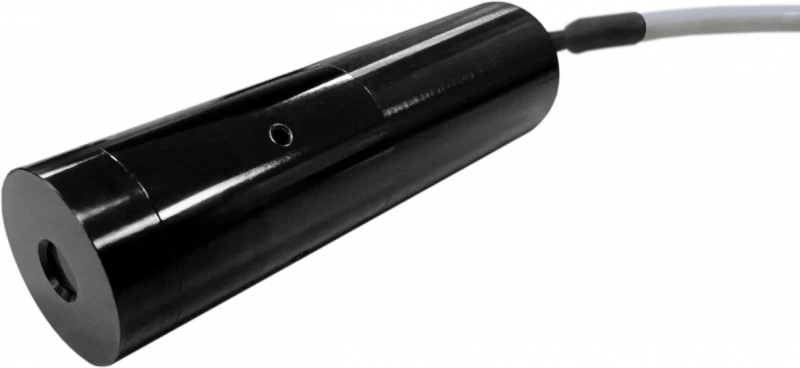

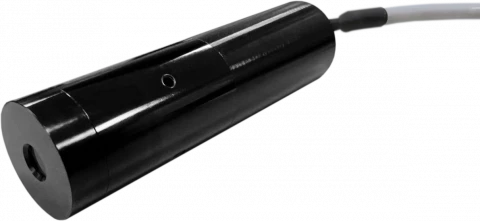

Thumbnail of M15 EEL 450nm Blue Laser Module 0.75mW - AO45010001 photo 1

Description

M15 EEL 450nm Blue Laser Module – 0.75mW Blue Laser for Precision Applications

The M15 EEL 450nm Blue Laser Module (0.75mW) is a high-performance, precision-engineered blue laser designed for exceptional stability and versatility across demanding optical applications. Featuring an integrated Automatic Power Control (APC) circuit, it maintains consistent light output with excellent reliability, ensuring stable performance even under varying environmental conditions.

This module includes an adjustable focus mechanism that enables fine beam tuning to meet the specific requirements of your setup. Its uniform energy distribution makes it ideal for high-accuracy measurement, alignment, and imaging tasks, where precision is paramount.

Engineered for superior optical flexibility, the M15 EEL Laser Module supports a wide range of optical lenses, including Diffractive Optical Elements (DOE) and Powell lenses, allowing users to generate diverse beam patterns such as parallel lines, cross lines, or custom graphic projections.

With support for both Continuous Wave (CW) and Pulse Wave (PW) operation modes, the module adapts seamlessly to dynamic laboratory, industrial, and research environments.

M15 EEL 450nm Blue Laser Module 0.75mW - AO45010001

Visit the LECC Technology Co., Ltd. Store

Specifications

Center Wavelength: 0.45 um
Output Power: 0.75 mW
Wavelength At Peak Emission: 450 +/- 10 nm
Line Size At 1200mm (beam Profile Test FWHM 50%): 1-1.5 mm
Operating Voltage: 24 V
Line Size At 100mm (beam Profile Test FWHM 50%): 1 mm
Driving Circuit: APC
Operating Current: 50 mA
Operating Temp. Range: -20 to 70 °C
Storage Temp. Range: -40 to 85 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • APC Control Board: Ensures consistent light output power.
  • Adjustable Focus: Can be focused according to site conditions, ensuring uniform energy distribution.
  • High Stability: Characterized by stable performance and a minimal error rate.
  • Pattern Versatility: Compatible with various optical lenses like DOE and Powell Lens to produce different graphics such as random numbers, cross lines, parallel lines, etc.
  • Operating Modes: Capable of operating in CW or PW modes.
  • Customizable: Offers variations in patterns and wavelengths based on user requirements.

Applications

  • Automated Inspection: Suitable for AOI visual inspection processes.
  • Medical Precision: Used in precise positioning applications for medical purposes.

Frequently Asked Questions

How can the focus of the module be adjusted?
The module offers adjustable focus, allowing it to be fine-tuned based on site conditions for uniform energy distribution.
Can the module produce different graphical patterns?
Yes, with the help of optical lenses such as the DOE and Powell Lens, it can generate random numbers, cross lines, parallel lines, etc.
What is the operating mode of this laser?
It can operate in both CW (Continuous Wave) or PW (Pulse Wave) modes.
What is the peak emission wavelength of EEL M15?
The typical emission wavelength is 450nm, with a range from 440nm to 460nm.
Is there any specific safety gear recommended while using this blue laser module?
Yes, it's imperative to wear safety goggles when observing or working with the laser to prevent eye damage.
What type of lens material does the module use?
The EEL M15 uses a plastic lens.
What precautions should be taken during soldering?
The temperature of the die-pad portion should remain below 160°C, and an iron temperature less than 180°C should be used for no more than 3 seconds.
For what medical applications is this module useful?
The EEL M15 is valuable for precise positioning tasks within the medical domain.

Got more questions? Use the inquiry form to ask the supplier directly.
