Description
The 1392 nm DFB Butterfly Laser Diode from BOX Optronics is a high-performance continuous-wave semiconductor source engineered for precise water-vapor detection.

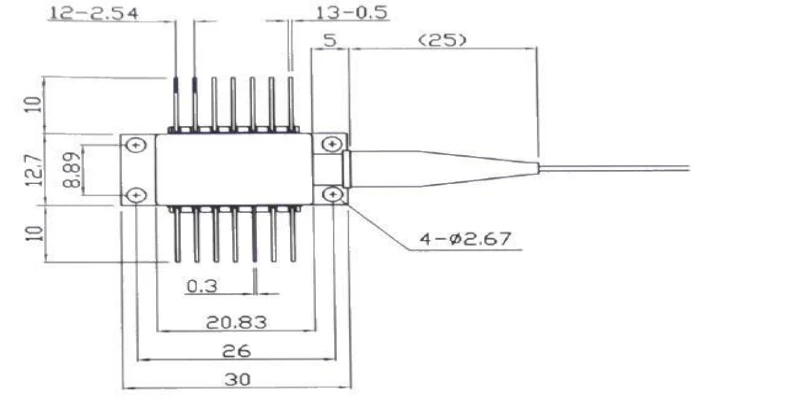

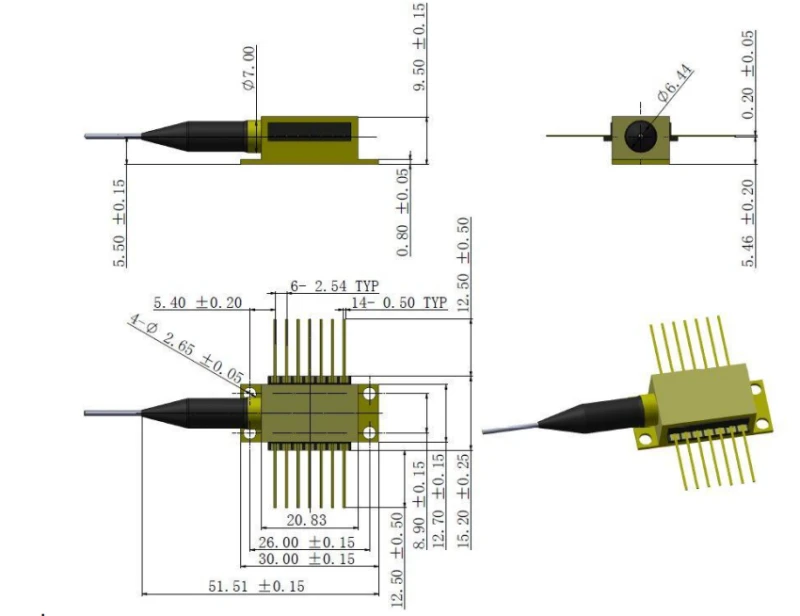

Housed in a hermetic 14-pin butterfly package, it integrates a thermoelectric cooler (TEC) and 10 kΩ NTC thermistor for millikelvin-level wavelength stability across −20 to +60 °C operating conditions.
The device delivers 12 mW typical fiber-coupled power at 50 mA drive current, with a narrow linewidth centered at 1392 nm and an excellent side-mode suppression ratio exceeding 55 dB, ensuring exceptional spectral purity for H2O absorption lines.
A low threshold current of 10 mA and 0.35 mW/mA slope efficiency provide energy-efficient operation, while Telcordia GR-468 qualification and RoHS compliance guarantee long-term field reliability.
The laser is terminated with 1 m of single-mode fiber (8.2/125 µm) and an FC/APC connector, offering low back-reflection and easy integration into gas-sensing modules, LIDAR systems, or environmental monitors.
1392nm DFB Butterfly Laser Diode
Specifications
| Center Wavelength: | 1.392 um |
|---|---|
| Output Power: | 12 mW |
| Threshold Current: | 10 mA |
| Operating Case Temperature: | -20-60 ℃ |
| Slope Efficiency: | 0.35 mW/mA |
| Core/Cladding Diameter: | 8.2/125 µm |
| Fiber Type: | Single model |
Download Data Sheet
Features
- Butterfly package, built-in TEC and NTC
- table wavelength and high power output
- High reliability, fast response , good stability
- Reliability: Telcordia GR-468. RoHS
Applications
- Focus on H2O gas
- Non action for another gas, water and dust
Frequently Asked Questions
What is the main application of the 1392nm DFB Butterfly Laser Diode?
What are the key features of the 1392nm DFB Butterfly Laser Diode?
What is the operating case temperature range for the laser diode?
What is the peak wavelength of the 1392nm DFB Butterfly Laser Diode?
What is the maximum laser forward current for the 1392nm DFB Butterfly Laser Diode?
What type of fiber is used with the 1392nm DFB Butterfly Laser Diode?
What is the side-mode suppression ratio (SMSR) at 50mA for the laser diode?
