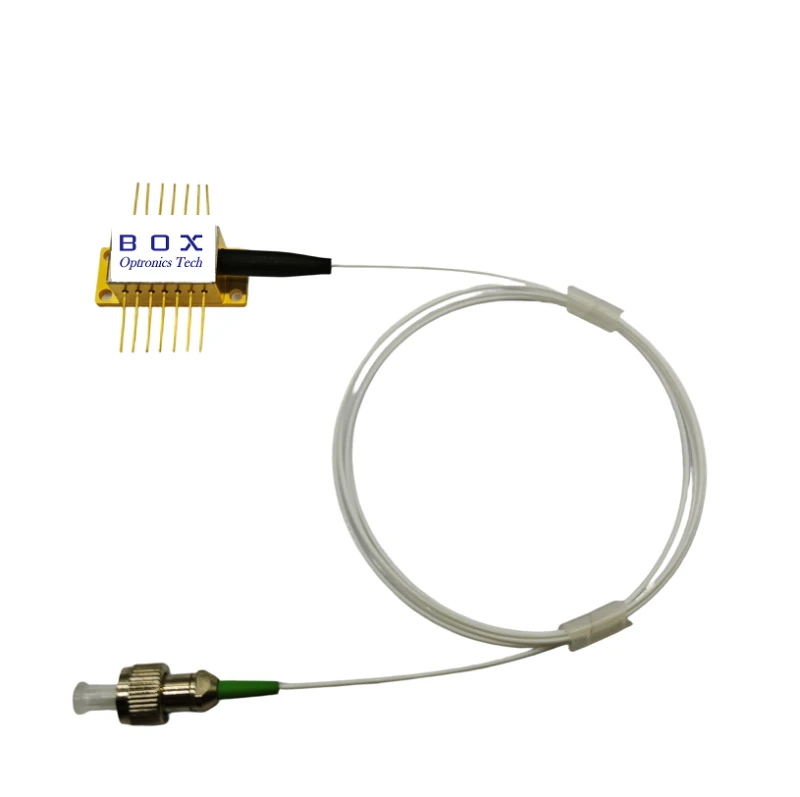

The 660nm FP Butterfly Laser Diode by BOX OptronicsTech is a high-performance semiconductor laser designed for precision optical applications. Featuring a 14-pin butterfly package, this laser diode integrates a built-in thermistor and TEC (Thermoelectric Cooler) for stable performance and temperature control.

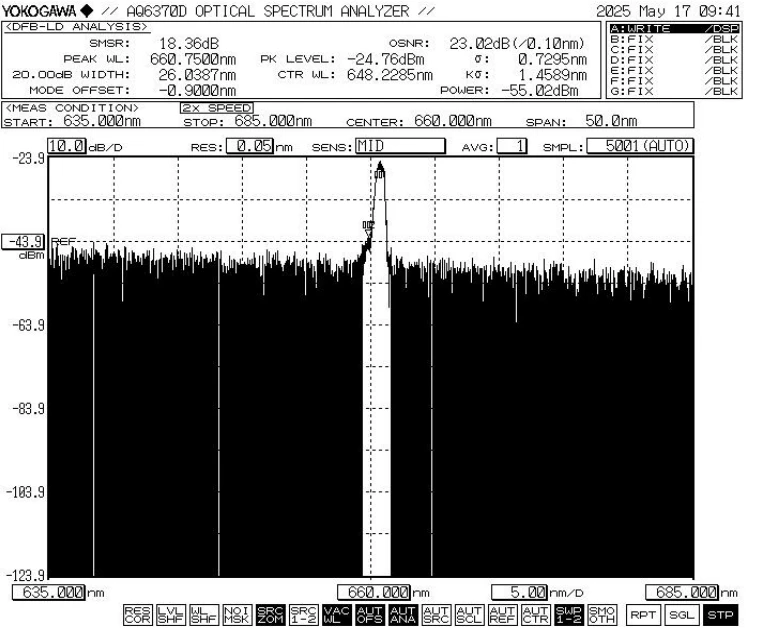

It is compatible with SM630-HP fiber, making it ideal for various optical instruments and lighting systems that require precise wavelength emission. This laser diode operates within a wavelength range of 652 to 670nm, with a typical operating wavelength at 660nm. It offers an optical output power of 30mW, suitable for applications needing moderate power levels.

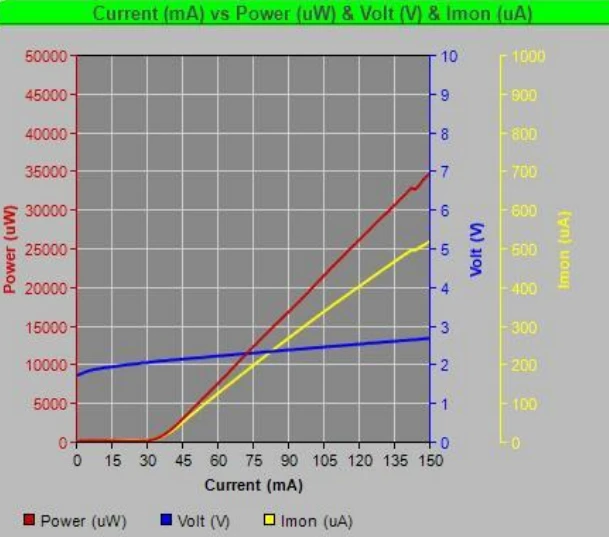

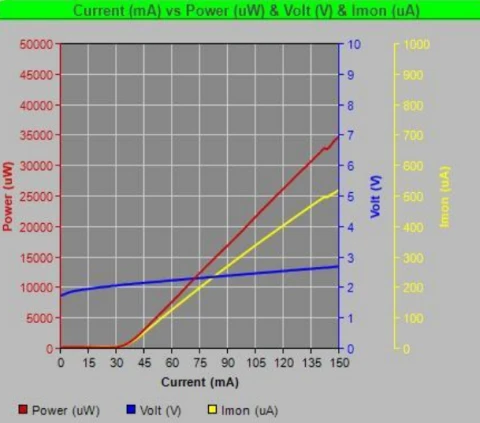

The device is designed to operate within an operating current of 122mA to 250mA and a voltage of 2.4 to 2.5V, ensuring efficient energy consumption. Additional features include a monitor current of 50 to 1500uA and a thermistor resistance of 9.5 to 10.5kΩ at 25°C, which aids in temperature monitoring and control.

The 660nm FP Butterfly Laser Diode is engineered to withstand extreme conditions, with an operating temperature range of -20 to +60°C and a storage temperature range of -40 to +80°C. Its package drawing and PIN-out definition provide a clear guide for integration into existing systems. This product is an excellent choice for customers looking for a reliable and efficient laser solution for their optical projects.
