VCSEL Light Sources for Demanding Photonics Designs

Did You Know?

VCSELs (Vertical-Cavity Surface-Emitting Lasers) are revolutionizing optical communication and sensing technologies! Unlike traditional edge-emitting lasers, VCSELs emit light perpendicular to the surface, allowing for high-density arrays and more efficient data transmission. They're commonly used in applications ranging from 3D facial recognition in smartphones to advanced medical imaging systems. Their unique structure and efficiency make VCSELs a critical component in the future of photonics!

Related Resources

Frequently Asked Questions

A VCSEL (Vertical-Cavity Surface-Emitting Laser) is a semiconductor laser diode in which light oscillates in a cavity perpendicular to the wafer surface and emits vertically through the top surface. In contrast, edge-emitting lasers guide light laterally and emit from a cleaved facet, resulting in higher output powers but typically more elliptical beams and more challenging coupling. VCSELs usually offer circular, low-divergence beams, easier 2D array integration, and better on-wafer testability, but with lower per-emitter power compared to high-power edge emitters.

What Is a VCSEL?

A VCSEL (Vertical-Cavity Surface-Emitting Laser) is a semiconductor laser diode that emits light perpendicular to the chip surface. Unlike edge-emitters, a VCSEL uses a short vertical cavity with distributed Bragg reflectors (DBRs) to achieve low threshold current, circular beam profiles, and straightforward 2D array integration. On FindLight, you can source discrete VCSEL emitters and VCSEL arrays targeted to sensing, communication, and illumination tasks.

Typical VCSEL Specifications

When evaluating a VCSEL, buyers typically compare:

  • Wavelength: Common VCSEL wavelengths include 760–940 nm for 3D sensing, ToF, and proximity detection, as well as 1300–1550 nm for optical communications and LiDAR.

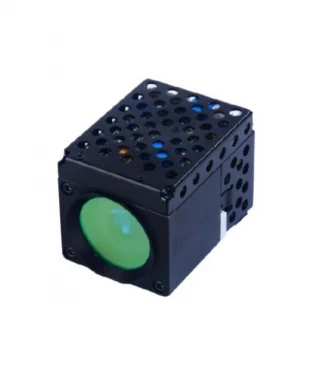

  • Optical output power: From sub-milliwatt continuous-wave (CW) single emitters up to multi-watt pulsed VCSEL array modules for structured light or high-power illumination.
  • Beam characteristics: Circular or near-circular beam, divergence angle, far-field pattern, and polarization state relevant to coupling into fibers or optics.
  • Drive conditions: Threshold current, operating current range, forward voltage, CW vs pulsed operation, and modulation bandwidth for data links or sensing.

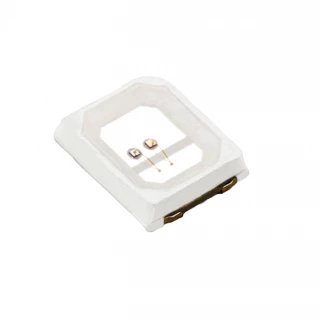

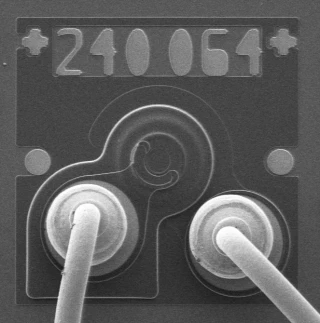

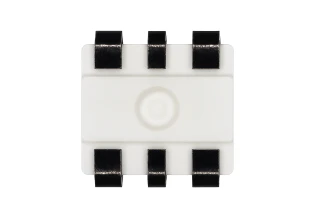

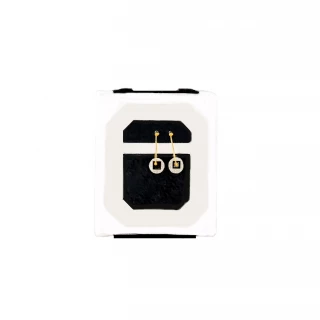

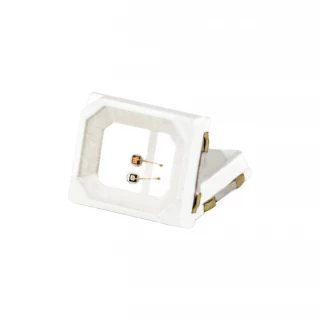

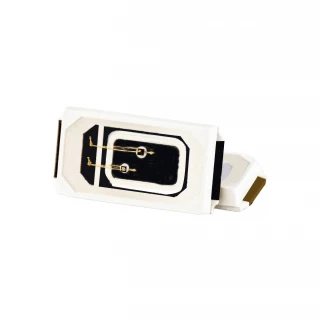

  • Packaging: Bare die VCSEL, TO-can, SMD, or custom submounts, with or without integrated micro-optics and photodiodes.
  • Reliability and environment: Lifetime data, maximum junction temperature, ESD sensitivity, and specified operating temperature range.

Use Cases for VCSEL Devices

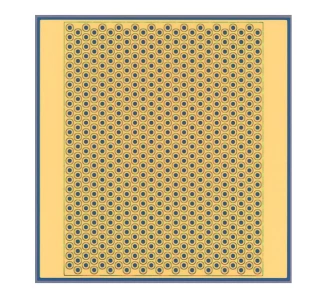

VCSEL components on FindLight support applications such as short-reach optical interconnects, position and displacement sensing, ToF 3D imaging, gesture recognition, consumer and industrial LiDAR, and optical encoders. Their compatibility with 2D arrays makes the VCSEL suitable for pattern projection and high-resolution illumination.

Buyer Guidance on FindLight

To select an appropriate VCSEL, start by fixing wavelength and required optical power at the target operating mode (CW or pulsed). Next, compare beam divergence, array geometry, and package style against your optical and mechanical constraints. Review drive current, efficiency, and thermal requirements to match your driver electronics and heatsinking strategy.

On FindLight you can directly compare VCSEL datasheets across manufacturers, filter by wavelength, power, and package, and request quotes from multiple vendors without registration. Use the quote forms to specify quantities, custom testing, or binning needs so suppliers can respond with relevant VCSEL options for your development or production program.
