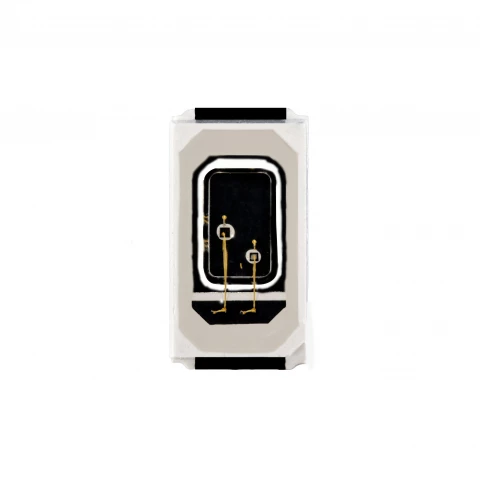

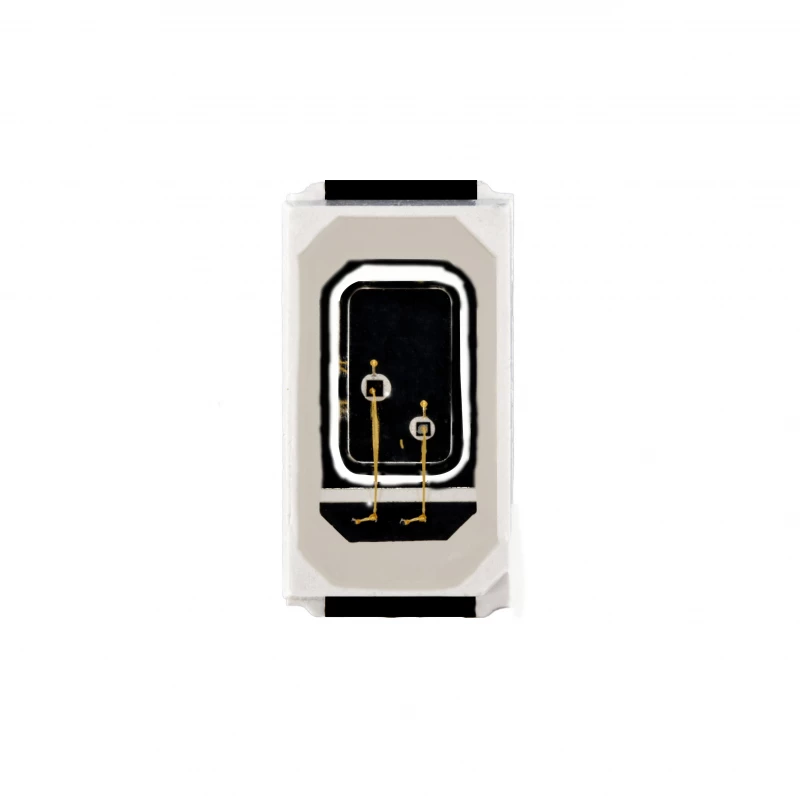

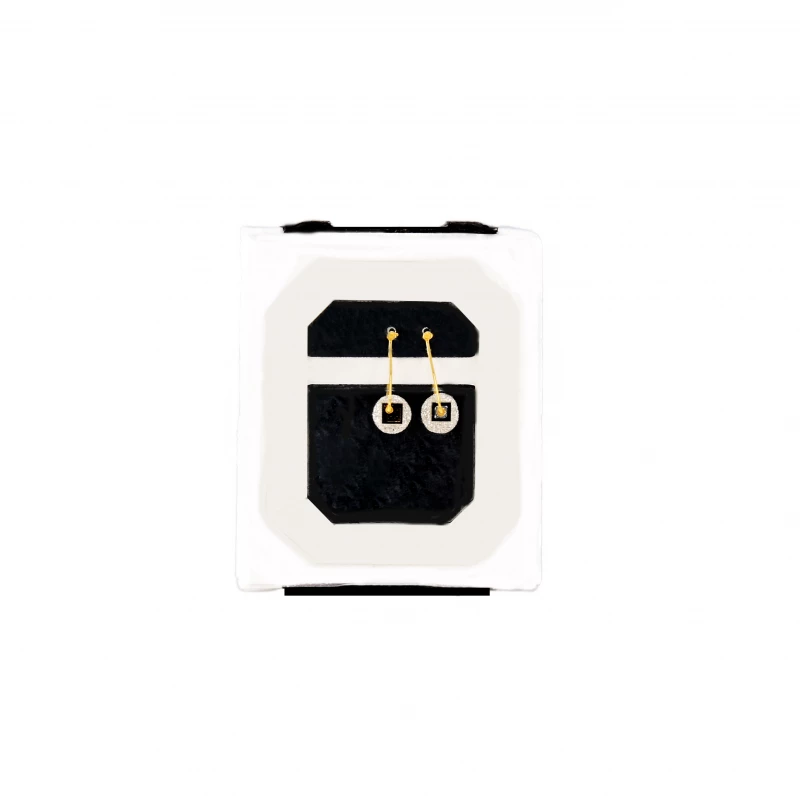

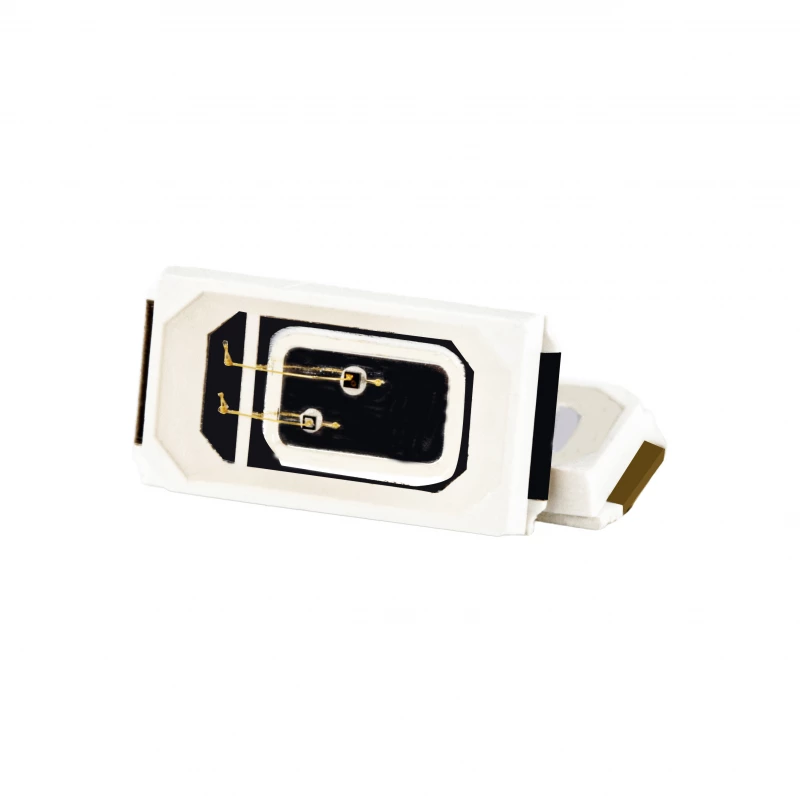

680nm Laser Diode, VCSEL, SMD/SMT, 680nm/5mW/2835, Red Light Laser Therapy, LLLT, PBMT

Name: 680nm Laser Diode, VCSEL, SMD/SMT, 680nm/5mW/2835, Red Light Laser Therapy, LLLT, PBMT
Brand: DE-RAY
Availability: InStock

Description

VCSEL is a new generation of laser devices, which is more suitable for processing compared to EEL lasers. VCSEL can be directly mounted using conventional surface mount machines. VCSEL can be packaged in different ways, such as 5730, 2835 or customized according to customer requirements.

The VCSEL spot is circular, making power easier to control, and our company can provide customized services for customers from development to production.

As one of the few factories with manufacturing capabilities, we can provide customized designs for customers, from research and development to mass production. Our goal has always been to create unique and personalized products for our customers.

Specifications

Wavelength:	680 nm
Optical Power (CW):	0.005 W
Threshold Current:	2.6 mA
VF:	2.6 V
Output Power:	4.0-6.0 mW
Wavelength:	673-687 nm
Angel:	22 deg
Chip Specification:	8*8 mil

Download Data Sheet

Features

More easily processed, reducing production costs.

Spot, angle, and power can be controlled.

There are various packaging forms, and multiple wavelengths can be packaged in one.

Customization of 655-1064nm is acceptable.

Compatible with SMT

Applications

Medical, consumer electronics, wearable devices.

Oximeters, hair generators, massagers, LLLT, PBM, PBMT, Red Light Laser Therapy, robots, and distance measuring devices.

Medical field: photo bio modulation, sports medicine, eye light, Diabetes, Diabetic Peripheral Neuropathy, physical therapy, Skin care Innovation, Nuon Medical, Dermatology Tech, Skin Health, Hair Restoration, Hair Regrowth, genomic medicine brain, neurology, neuroscience, neurodegeneration

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

DE-RAY

On FindLight:

since 2024

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

Are you the original manufacturer?

Yes, we are DERAY Optoelectronics Co., Ltd. in China, and we complete everything from die production to packaging in our factory.

Can you customize it?

Yes, we accept customization: 1. From 655nm to 1064nm wavelength; 2. From 0.002mW to 10W, please contact us directly for more power; 3.Packaging form: Accepting various standard SMD packaging.

What are the advantages of VCSLE compared to EEL?

VCESL is surface mount soldering (SMT), while EEL is a plug-in, making VCSEL easier to solder, significantly improving yield, lower soldering costs, and overall lower processing costs. VCSEL, due to its small size, can be designed in smaller and more diverse forms.

Can different wavelengths be customized in one package?

We accept customization for up to 5 different wavelengths.
