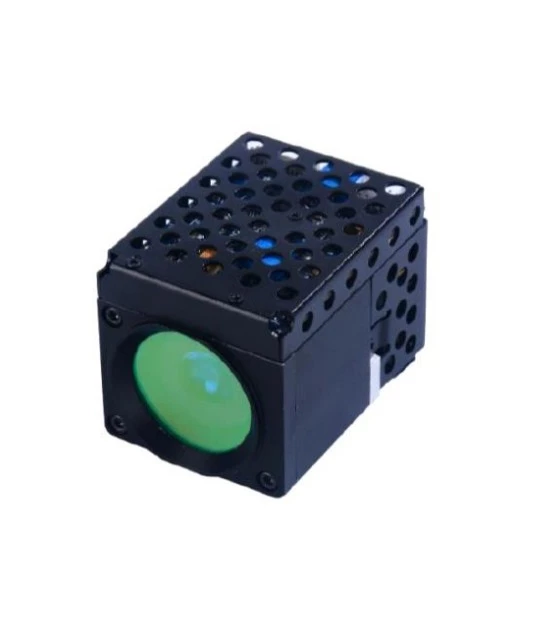

FLTT-808-2.2W-500m-CAP IR Laser Illuminator 808nm 2.2W 500m
Description
The IR laser illuminator FLTT-808-2.2W-500m-CAP is a high-performance product with integrated high quality VCSEL chip and excellent optic design. It has outstanding circuit control with high efficiency and wide beam angle zooming which can match the field of view angle of most cameras, like high-speed dome, PTZ and traffic monitoring cameras. The interfaces are user friendly and offer operating voltage control, communication protocols and installation schematic. The fan angle can be electronically adjusted via serial port. The output beam is very uniform and speckle free.
FLTT-808-2.2W-500m-CAP IR Laser Illuminator 808nm 2.2W 500m
Specifications |
|
|---|---|
| Wavelength: | 808 nm |
| Optical Power (CW): | 2.2 W |
Features
Electrical Beam Angle Zooming
Illumination Range up to 500m
High Reliability, Lifetime up to 50000 hours
Compact and Easy to Integrate
TTL Interface
Low Off-axis Divergence
Uniform Beam Intensity, Speckle Free
Operating State Memory
Low Heat Production, High Efficiency
Applications
Video Surveillance Systems
Automobile Night Vision (ADAS)
Machine Vision
Gesture Recognition
Display
Military
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
The FLTT-808-2.2W-500m-CAP IR Laser Illuminator is used for video surveillance systems, automobile night vision (ADAS), machine vision, gesture recognition, display, medical applications, and military applications.
The illumination range of the FLTT-808-2.2W-500m-CAP IR Laser Illuminator is up to 500m.
The fan angle of the FLTT-808-2.2W-500m-CAP IR Laser Illuminator can be electronically adjusted via serial port within a tolerance of ±0.2°.
The operating voltage of the FLTT-808-2.2W-500m-CAP IR Laser Illuminator is 12V.
The FLTT-808-2.2W-500m-CAP IR Laser Illuminator has a lifetime of up to 50,000 hours.
