808nm, VCSEL, Laser Diode, SMD/SMT 3W/43mil/3227 for Laser Therapy, Laser Facial, Skin Rejuvenation, VAPE Infrared Heating

Name: 808nm, VCSEL, Laser Diode, SMD/SMT 3W/43mil/3227 for Laser Therapy, Laser Facial, Skin Rejuvenation, VAPE Infrared Heating
Brand: DE-RAY
Availability: InStock

Description

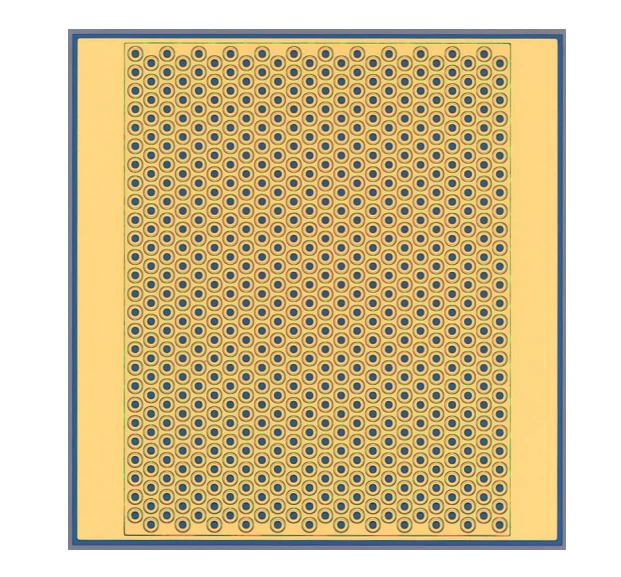

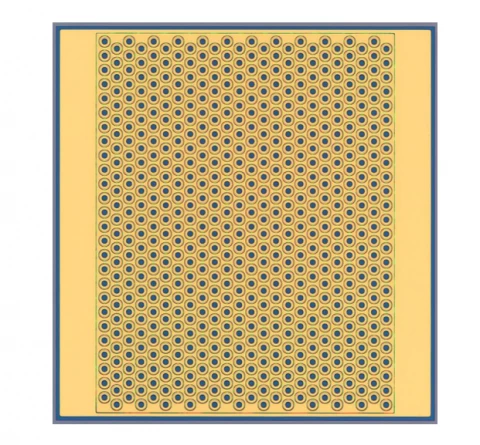

VCSEL is a new generation of laser devices, which is more suitable for processing compared to EEL lasers. VCSEL can be directly mounted using conventional surface mount machines. VCSEL can be packaged in different ways, such as 5730, 2835 and 3227 or customized according to customer requirements.

The VCSEL spot is circular, making power easier to control, and our company can provide customized services for customers from development to production.

As one of the few factories with manufacturing capabilities, we can provide customized designs for customers, from research and development to mass production. Our goal has always been to create unique and personalized products for our customers.

Specifications

Wavelength:	808 nm
Optical Power (CW):	3 W
Threshold Current:	690 mA
Differential Resistance:	0.2 Ohms
Output Power:	3.6 W
Wavelength:	808 nm

Download Data Sheet

Features

More easily processed, reducing production costs.

Spot, angle, and power can be controlled.

There are various packaging forms, and multiple wavelengths can be packaged in one.

Customization of 655-1064nm is acceptable.

Compatible with SMT.

Applications

Medical, consumer electronics, wearable devices.

Oximeters, hair generators, massagers, LLLT, PBM, PBMT, Red Light Laser Therapy, robots, and distance measuring devices.

Medical field：photobiomodulation，sportsmedicine，eyelight，Diabetes，DiabeticPeripheralNeuropathy，physicaltherapy，SkincareInnovation，NuonMedical，DermatologyTech，SkinHealth，HairRestoration，HairRegrowth，genomicmedicine brain，neurology，neuroscience， neurodegeneration

Used for outdoor assisted navigation，AGV, Sweeping robots, service robot

808nm, VCSEL, Laser Diode, SMD/SMT 3W/43mil/3227 for Laser Therapy, LLLT, PBMT, Laser Facial, Skin Rejuvenation (Custom Available）

Laser Skin Treatment, Hair Removal, Laser Tattoo Removal, Laser for Skin pigmentation, Brain health

Sensor light source

Consumer electronic products

Machine vision

Infrared lighting

Industrial

VAPE heat not burn module (HNB) iqos (Max 6W, Array Overlay)

VAPE Infrared heating heat not burn(HNB)，E-cigarette, Electronic-cigarette IR Heat

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

DE-RAY

On FindLight:

since 2024

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

Are you the original manufacturer?

Yes, we are DERAY Optoelectronics Co., Ltd. in China, and we complete everything from die production to packaging in our factory.

Can you customize it?

VCESL is surface mount soldering (SMT), while EEL is a plug-in, making VCSEL easier to solder, significantly improving yield, lower soldering costs, and overall lower processing costs. VCSEL, due to its small size, can be designed in smaller and more diverse forms.

What are the advantages of VCSLE compared to EEL?

Can different wavelengths be customized in one package?

We accept customization for up to 5 different wavelengths.
