Description
The 980nm 10Gbps Extended Temp VCSEL supports operating environments from -40°C to +125°C for a high-performance interconnect solution. Integrated into transceivers or sensors, this device has been designed and tested to maintain high-performance in harsh environment applications, including next-generation automotive optical transceivers.

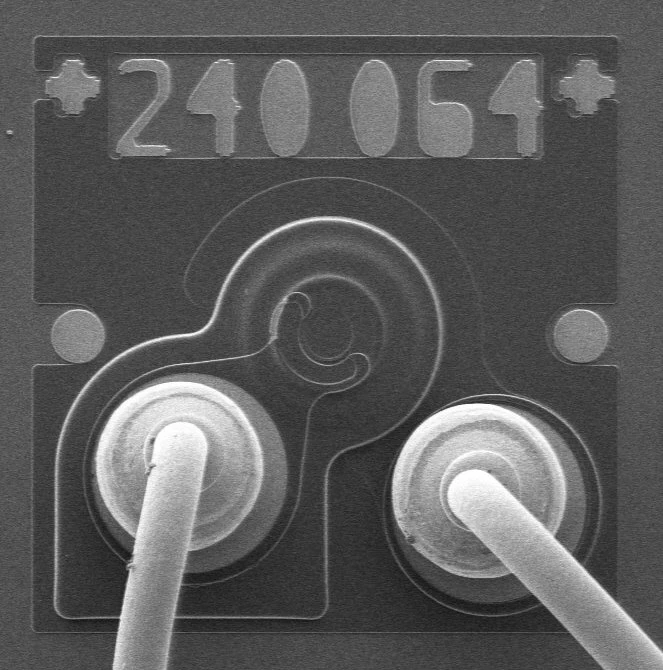

980nm 10 Gbps Extended Temp VCSEL
Specifications
Wavelength: | 980 nm |
---|---|
Optical Power (CW): | 1 W |
Variation Of Wavelength With Temp: | -0.06 to 0.07 nm/°C |
Spectral Width: | 0.4 nm |
Threshold Current: | 0.7 mA |
Average Operating Current: | 3 mA |
Operating Voltage: | 3.15 V |
Optical Output Power: | 1.6 mW |
Small Signal Bandwidth: | 7.75 GHz |
Beam Divergence Half Angle: | 16 deg |
Slope Efficiency: | 0.5 to 0.75 mW/mA |
Differential Resistance: | 89 Ω |
Features
- Operating temperature from -40°C to +125°C
- Top-emitting
- Single channel
Applications
- Automotive LiDAR: The device's ability to operate in a wide temperature range makes it suitable for use in automotive LiDAR systems, which require reliable performance in challenging environments.
- Industrial Automation: The device could be used in industrial automation applications such as machine vision systems, where high-speed and temperature stability are important factors.
- Data Communications: The VCSEL could be used in data communication applications such as high-speed optical links between servers in a data center or for interconnects between printed circuit boards.
- Medical Equipment: The device could be used in medical equipment such as endoscopes or other imaging systems that require a high-speed and temperature-stable light source.
- Fiber Optic Sensing: The VCSEL could be used in fiber optic sensing applications such as strain or temperature sensing, where high-speed and stable light output is required.
Frequently Asked Questions
What is the operating temperature range of the 980nm 10Gbps Extended Temp VCSEL?
The operating temperature range is from -40°C to +125°C.
What are the applications of the 980nm 10Gbps Extended Temp VCSEL?
The applications include automotive LiDAR, industrial automation, data communications, medical equipment, and fiber optic sensing.
What is the emission wavelength of the 980nm 10Gbps Extended Temp VCSEL?
The emission wavelength is between 965nm and 990nm.
What is the average operating current of the 980nm 10Gbps Extended Temp VCSEL?
The average operating current is 3mA.
What is the optical output power of the 980nm 10Gbps Extended Temp VCSEL?
The optical output power ranges from 1.0mW to 1.6mW, depending on the temperature and current.
