650nm Laser Diode, VCSEL, SMD/SMT, 650nm/660nm/5mW/5730, Red Light Laser Therapy, LLLT, PBMT

Name: 650nm Laser Diode, VCSEL, SMD/SMT, 650nm/660nm/5mW/5730, Red Light Laser Therapy, LLLT, PBMT
Brand: DE-RAY
Availability: InStock

Description

VCSEL is a new generation of laser devices, which is more suitable for processing compared to EEL lasers. VCSEL can be directly mounted using conventional surface mount machines. VCSEL can be packaged in different ways, such as 5730, 2835 or customized according to customer requirements.

The VCSEL spot is circular, making power easier to control, and our company can provide customized services for customers from development to production.

As one of the few factories with manufacturing capabilities, we can provide customized designs for customers, from research and development to mass production. Our goal has always been to create unique and personalized products for our customers.

Specifications

Wavelength:	650 nm
Optical Power (CW):	0.005 W
Threshold Current:	TYP:1.5, Max:2.5 mA
VF:	2.3-2.6 V
Output Power:	4.5-5.5 mW
Wavelength:	655-665 nm
PCE:	20-24 %
Angle:	19 deg
Chip Specification:	8*8 mil
Size:	5.73.60.8 mm

Download Data Sheet

Features

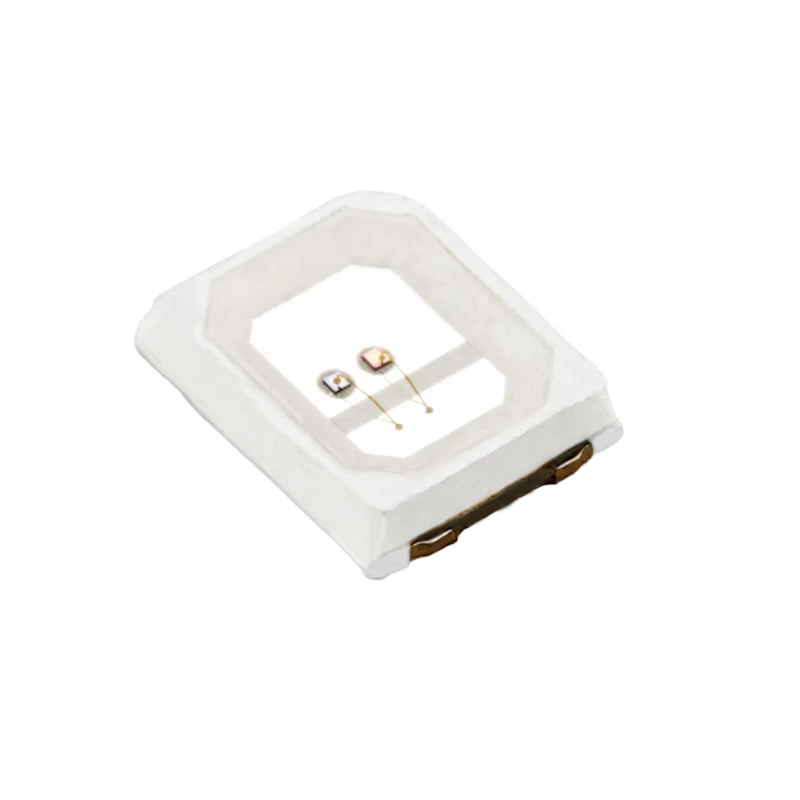

Product Name: Semiconductor Laser Device

Part Number: DRS660-0005-08-5730E3

Packaging: 5730 Encapsulation

Luminous Color: Red with Wavelength of 660nm + Zener

Chip Specification: 8mil x 8mil

Luminous Angle: 19 Degrees

Electrostatic Sensitivity: Yes

Optical Characteristics:
- Threshold Current (Ith): Typical 1.5mA, Max 2.5mA
- Forward Voltage (VF): Min 2.3V, Max 2.6V at If=10mA
- Output Power (Pop): Min 4.5mW, Max 5.5mW at If=10mA
- Wavelength (λop): Min 655nm, Max 665nm
- Divergence Angle: Typical 19°, Max 23° at If=10mA
- Power Conversion Efficiency (PCE): Min 20%, Max 24% at If=10mA

Reel Dimensions: Loaded Quantity of 4000 PCS per Reel

Applications

Medical Devices: Utilized in medical equipment for precise surgical procedures and diagnostics.

Industrial Automation: Applied in manufacturing processes for alignment, cutting, and welding tasks.

Consumer Electronics: Integrated in devices such as laser pointers and optical drives.

Telecommunications: Used in optical communication systems for data transmission.

Research and Development: Essential in laboratories for experiments involving light manipulation and measurement.

Security Systems: Implemented in surveillance and security equipment for motion detection and imaging.

Automotive Industry: Employed in advanced driver-assistance systems (ADAS) for range finding and object detection.

Entertainment and Lighting: Used in stage lighting and laser shows for visual effects.

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

DE-RAY

On FindLight:

since 2024

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

Are you the original manufacturer?

Yes, we are DERAY Optoelectronics Co., Ltd. in China, and we complete everything from die production to packaging in our factory.

Can you customize it?

Yes, we accept customization: 1. From 655nm to 1064nm wavelength; 2. From 0.002mW to 10W, please contact us directly for more power; 3. Packaging form: Accepting various standard SMD packaging.

What are the advantages of VCSLE compared to EEL?

VCSEL is surface mount soldering (SMT), while EEL is a plug-in, making VCSEL easier to solder, significantly improving yield, lower soldering costs, and overall lower processing costs. VCSEL, due to its small size, can be designed in smaller and more diverse forms.

Can different wavelengths be customized in one package?

We accept customization for up to 5 different wavelengths.
