Ultra Compact UC160-190 Recirculating Chiller
Solid State Cooling Systems
Available with a 160-190 Watt capacity, the UC160-190 delivers precise temperature control using ultra-reliable thermoelectric modules with lifetimes exceeding 200,000 hours. UC160-190 responds instantly to changes in load, holding to ± 0.1°C, even near ambient. Its universal, variable power supply only provides power when ...
Data Sheet
T-Three Temperature Control
Solid State Cooling Systems
The 300 Watt T-Three delivers a cost-efficient way to optimize your equipment’s performance through greater thermal stability. T-Three responds instantaneously to changes in load, achieving thermal control from 0 to 50 °C with a repeatability of ± 0.05 °C, even near ambient. The system’s smooth-flow ...
Data Sheet

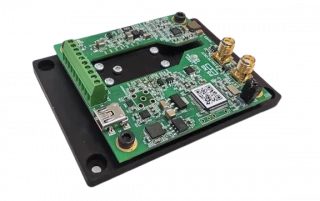

766 SHORT PULSE SEED LASER DIODE DRIVER
Analog Modules
AMI’s Model 766 short pulse seed laser diode driver is ideal for driving 14-pin butterfly packaged laser diode modules for applications which require pulse widths less than 1ns. Applications include materials processing, time-resolved spectroscopy, LIDAR and others. The driver circuitry operates from a single 5V power source. ...
Data Sheet
773 HIGH CURRENT PULSED LASER DIODE DRIVER
Analog Modules
The Model 773 is a highly compact, low voltage DC input power converter/laser diode driver designed to supply pulsed high current for laser diode-stack loads. Pulsed output current is 118A with less than 25us risetime into diodestacks of 2 to 5V at an average power to the load of 1.0W. The driver weighs 2.1 oz. in a compact package ...
Data Sheet
786 QCW LASER DIODE DRIVER ASSEMBLY
Analog Modules
The Model 786 is a single channel compact QCW laser diode driver designed to power direct coupled laser diodes. The input is via a 3.6V DC lithium battery or power supply. Current amplitude is adjustable by a potentiometer and solder pad connections are present to connect the laser diode. Output pulsewidth will follow the external ...
Data Sheet
880D HIGH POWER CW LASER DIODE CONTROLLER
Analog Modules
The Model 880D Laser Diode Controller provides CW output currents to drive laser diodes for pumping solid-state lasers. The Model 880D can be configured with up to three internal power modules to provide up to 6kW for CW diode loads. Control of the Model 880D can be achieved from the front panel or remotely via an RS-232 interface ...
Data Sheet
5705 ISOLATED LASER DIODE POWER MODULE
Analog Modules
The Model 5705 isolated laser diode power module uses a proprietary power conversion technique to charge energy storage capacitors for CW or pulsed diode-pumped solid-state laser applications. A differentially isolated output allows the Model 5705 to be configured with either positive or negative output. With the addition of an ...
Data Sheet
787 STACKABLE CW & PULSED LASER DIODE DRIVER
Analog Modules
AMI’s Model 787 OEM laser diode driver is a highly efficient, current regulated, low ripple tri-phase laser diode driver designed to power pulsed and CW high current laser diode stacks. Proprietary technology allows AMI to offer a 50A, 5.0V driver with industry leading efficiency and footprint. Multiple drivers can be stacked ...
Data Sheet
785 ULTRA LOW RIPPLE CW & PULSED LASER DIODE DRIVER
Analog Modules
AMI’s Model 785 OEM laser diode driver is ideal for compact industrial and medical direct illumination applications that require extremely low ripple and/or pulse shaping. Proprietary technology allows AMI to offer a 0-20 A, 2-26 V driver with industry leading output current stability and small footprint. Contact AMI today to ...
Data Sheet
784 OEM CW & PULSED LASER DIODE DRIVER
Analog Modules
AMI’s Model 784 OEM laser diode driver (pump laser diode driver) is ideal for compact industrial and medical laser applications. Proprietary technology allows AMI to offer a 50A, 2.5V driver with industry leading efficiency and footprint. RoHS and military versions are available. Contact AMI today to discuss your custom requirements.
Data Sheet
763 OEM Seed Laser Diode Driver Assembly
Analog Modules
AMI’s Model 763 OEM seed laser diode driver is ideal for driving 14-pin butterfly packaged laser diode modules for use in CW or pulsed fiber MOPA systems. Applications include materials processing, LIDAR systems for remote sensing, fiber optic temperature sensing, laser communication and rangefinding. The driver is implemented ...
Data Sheet
762 OEM Seed Laser Diode Driver Assembly
Analog Modules
AMI’s Model 762 OEM programmable seed laser diode drivers are ideal for driving 14-pin butterfly packaged laser diode modules for use in CW or pulsed fiber MOPA systems. Applications include materials processing, LIDAR systems for remote sensing, laser communication and rangefinding.
Data Sheet
Integrated Thermal Control System
Vektrex Electronic Systems Inc
The Vektrex Integrated Thermal Control System (ITCS) uses proprietary water-based thermal control to maintain consistent LED and laser device temperatures during high power testing applications. LED/VCSEL manufacturers and third-party test facilities standardize on ITCS chambers for their testing needs. Temperature ...
Data Sheet
SF8XXX drivers series have special design for supply laser diode. Driver SF8XXX include high stability current source (0,01mА) for laser diode and TEC for precision maintaining the temperature on peiltier element (TEM) (0,01 °C).
  • Maximum Current LD (I): 250; 750; 1500  mA
  • Output Voltage LD (V): 0.5-3  V
  • Current Stability: 0.1  %
  • Current Set Accuracy: 1 %
  • Output Current Noise: 10-15   µA
  • ...
Data Sheet

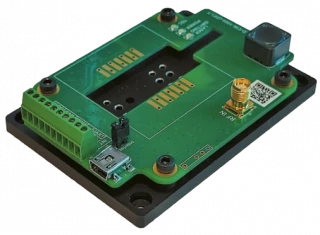

SF8XXX-ZIF14 drivers series have special design for supply laser diode in butterfly package with 14 pin pump laser diodes. Driver include high stability current source (0,01mА) for laser diode and TEC for precision maintaining the temperature on peiltier element (TEM) (0,01 °C). Driver have an integrated mounting Azimuth socket ...
  • Maximum Current LD (I): 250; 750; 1500 mA
  • Output Voltage LD (V): 0.5-3  V
  • Current Stability: 0.1 %
  • Current Set Accuracy: +/- 1 %
  • Output Current Noise: 10-15 µA
  • ...
Data Sheet
SF8XXX-ZIF14 drivers series have special design for supply laser diode in butterfly package with 14 pin pump laser diodes. Driver include high stability current source (0,01mА) for laser diode and TEC for precision maintaining the temperature on peiltier element (TEM) (0,01 °C). Driver have an integrated mounting Azimuth socket ...
  • Laser Diode Protection: Soft-Start Current Ramp/ Current limit/ Temperature limit/ Reverse current protection/ ESD and transient protection
  • Maximum Current LD (I) : 3000 mA
  • Output Voltage LD (V): 0.5-3  V
  • Current Stability: 0.1  %
  • Current Set Accuracy: < +/- 1  %
  • ...
Data Sheet
SF6XXX is the series of high power, compact OEM constant current laser diode drivers. Unique laser driver circuit solutions allows to achieve high efficiency (up to 97%) and high power density. Aluminum base plate provides effective remove heat from laser diode driver module with the water or air cooling. Laser current driver have ...
  • Laser Diode Protection: Soft-Start Ramp to Current Setpoint/ User Adjustable Current Limit/ Over-Current Protection Fast Shutdown/ Over-Temperature Thermal Warning and Shutdown /Reverse Current Protection/ Crowbar Circuit Protection/ Disable Input/ Interlock
  • Output Current Range (I): 0 ~ 25  A
  • Output Voltage (0.73*Vin Max) (V): 5 ~ 40  V
  • Minimum Current Set-Point Step Size: 0.01 A
  • Rise Time (Iout = 12,5A): min - 140μs; max - 300μs
  • ...
Data Sheet

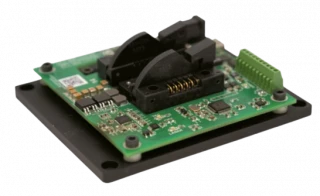

MBL1500A controller series have special design for supply laser diode in Butterfly package in both Type 1 and Type 2 14-pin Laser Diodes. Controller include high stability current source (0,01mА) for laser diode, TEC for precision maintaining the temperature on peiltier element (TEM) (0,01 °C) and Mount with Azimuth ZIF Socket ...
  • Output Current LD (I): : 1500  mA
  • Output Voltage LD (V): : 0.5-3  V
  • Setpoint Resolution: : 0,1 mA
  • Rise Time: : <4000  μs
  • Fall Time: : <8000  μs
  • ...
Data Sheet
SF6XXX is the series of high power, compact OEM constant current laser diode drivers. Unique laser driver circuit solutions allows to achieve high efficiency (up to 97%) and high power density. Aluminum base plate provides effective remove heat from laser diode driver module with the water or air cooling. Laser current driver have ...
  • Laser Diode Protection: Soft-Start Ramp to Current Setpoint/ User Adjustable Current Limit/ Over-Current Protection Fast Shutdown/ Over-Temperature Thermal Warning and Shutdown /Reverse Current Protection/ Crowbar Circuit Protection/ Disable Input/ Interlock
  • Output Current Range (I): 0-30  A
  • Output Voltage Range (0.75*Vin Max) (V): 1-10  V
  • Setpoint Resolution: 0.01  A
  • Rise Time (Iout = 15A) : min - 300μs; max - 700μs
  • ...
Data Sheet
SF6XXX is the series of high power, compact OEM constant current laser diode drivers. Unique laser driver circuit solutions allows to achieve high efficiency (up to 97%) and high power density. Aluminum base plate provides effective remove heat from laser diode driver module with the water or air cooling. Laser current driver have ...
  • Output Current Range (I): 0-15  A
  • Output Voltage Range (0.75*Vin Max) (V): 1-10  V
  • Setpoint Resolution: 0.01  A
  • Rise Time: (Iout = 7,5A): min - 150μs; max - 500μs
  • Rise Time: (Iout = 15A): min - 140μs; max - 500μs
  • ...
