WTCP5V5A PWM Temperature Controller
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

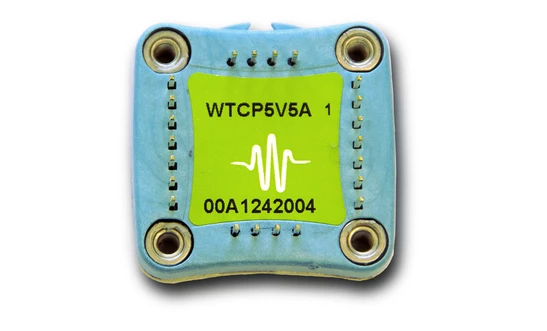

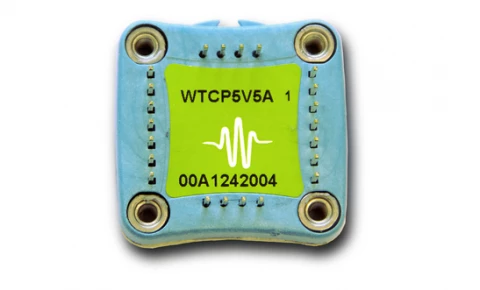

The WTCP5V5A PWM Temperature Controller is engineered to deliver the benefits of Pulse Width Modulated (PWM) control in a compact, PCB-mounted package. This controller is characterized by its high efficiency, low power dissipation, and exceptional stability and accuracy, making it an ideal choice for applications where space and efficiency are paramount. Whether it is for electro-optical systems, airborne instrumentation, or medical diagnostic equipment, the WTCP5V5A stands out as a versatile solution.
Safety is a priority with the WTCP5V5A. It incorporates built-in safety features such as current and voltage limits, ensuring robustness under real-world operating conditions. This reliability translates to less downtime, fewer service calls, and ultimately, more satisfied customers. The design focus on long-term reliability ensures that this controller is a dependable component in your systems.
The WTCP5V5A is designed for seamless integration, operating from a single 5 V power supply. Alternatively, it can be configured to use separate power supplies for the controller and load, which further reduces output current noise. The optional WTCPEVAL evaluation board streamlines the configuration process, providing everything necessary to adapt the WTCP for diverse applications and load conditions. The onboard feedback loop adjustment switches simplify tuning, significantly reducing development time.
With minimal passive external components required, the WTCP5V5A is straightforward to implement. Thanks to its high-efficiency output stage, additional heatsinking is generally unnecessary, further simplifying the integration process.
WTCP5V5A PWM Temperature Controller
Specifications |
|
|---|---|
| Current: | ±5.0 A |
| Supply Voltage: | 5 VDC |
| Short Term Stability: | 0.001°C |
| Long Term Stability: | 0.002°C |
| Package Size: | 1.3” x 1.28” x 0.31” |
Features
- Compact and Efficient Design: The WTCP5V5A PWM Temperature Controller offers high efficiency and low power dissipation in a compact, PCB-mounted package, ideal for space-constrained applications.
- High Stability and Accuracy: Achieves short-term stability of 0.001°C and long-term stability of 0.002°C, making it suitable for precision applications.
- Versatile Power Supply Options: Operates from a single 5 VDC supply or can utilize separate power supplies for reduced noise in sensitive applications.
- Robust Safety Features: Built-in current and voltage limits enhance reliability and protect against real-world operating conditions.
- Easy Integration: Minimal external components required and no additional heatsinking needed due to the high-efficiency output stage.
- Comprehensive Evaluation Board: The WTCPEVAL board facilitates quick configuration and tuning with onboard feedback loop adjustment switches.
- High Current Drive Capability: Capable of driving up to ±5.0 A of TEC current, supporting a wide range of thermal management applications.
- Small Footprint: Measures just 1.3” x 1.28” x 0.31”, providing a powerful solution in a compact size.
- RoHS Compliant: Environmentally friendly design adheres to RoHS standards.
Applications
- Electro-Optical Systems: Ideal for applications requiring compact size and high efficiency.
- Airborne Instrumentation: Suitable for use in environments where space and weight are limited.
- Medical Diagnostic Equipment: Provides precision temperature control needed in sensitive medical devices.
- Evaluation and Testing: The WTCPEVAL evaluation board simplifies configuration for various applications, reducing development time.
- OEM Integration: The WTCPOEM OEM PCB allows for seamless integration into custom systems.
- Thermal Management: Use with WEV300, WEV301, or WEV302 kits for enhanced thermal management, including options for fans and heatsinks.
Frequently Asked Questions
The WTCPEVAL evaluation circuit board includes everything needed to quickly configure the WTCP for a wide range of applications and load conditions, and the onboard feedback loop adjustment switches simplify tuning.
The WTCP5V5A is suitable for applications requiring high efficiency, low power dissipation, and high stability, such as electro-optical systems, airborne instrumentation, and medical diagnostic equipment.
The WTCP5V5A can operate from a single 5 V power supply, or the WTCP and load can be driven from separate power supplies for even lower output current noise.
The WTCP5V5A Temperature Controller is a compact and efficient Pulse Width Modulated (PWM) control instrument designed for temperature control applications.
The WTCP5V5A has built-in safety features such as current limit and voltage limit to make it robust to real-world operating conditions.
