Description
The linewidth/phase noise analyzer provides fully automated measurements of ultra-low phase noise and laser linewidth. We are able to measure the linewidth of the laser < 1Hz without complicated setup.
The entire system is very easy to operate via a PC.

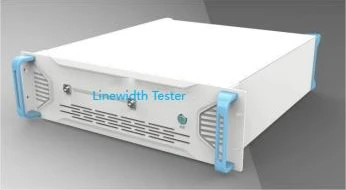

3Hz Laser Linewidth Noise Tester
Specifications
| Input Optical Power Range: | 0dbm ～ 30dBm |
|---|---|
| Frequency Offset Range: | 10Hz ~ 10Mhz |
| White Noise Levels: | -160 dBc/Hz |
| Dimension: | 3U （ 483 x 524 x 140 ） |
Download Data Sheet
Features
- Lorentz line width < 1Hz
- Input Optical Power Range: 0dbm ～ 30dBm
- Frequency Offset Range: 10 Hz ~ 10Mhz
- White Noise Levels: -160 dBc/Hz
- Dimension: 3U （ 483 x 524 x 140 ）
Applications
- Selectable wavelength Range(nm)
- 575 – 710 / 740 – 935 / 965 – 1065 /
- 1000 – 1100/ 1260 – 1360/ 1360 – 1460/
- 1460 – 1530/ 1530 – 1565/ 1565 – 1625/
- 1647 – 1655 / 1900 – 1950/ 1950 – 2100
- The tester can be equipped with both modules
Frequently Asked Questions
What does the linewidth/phase noise analyzer measure?
The linewidth/phase noise analyzer provides fully automated measurements of ultra-low phase noise and laser linewidth.
What is the minimum laser linewidth that can be measured?
The analyzer can measure the linewidth of the laser to less than 1 Hz.
How is the system operated?
The entire system is very easy to operate via a PC.
What is the input optical power range for the analyzer?
The input optical power range is 0 dBm to 30 dBm.
What are the frequency offset ranges supported by the analyzer?
The frequency offset range supported by the analyzer is from 10 Hz to 10 MHz.
What are the dimensions of the analyzer?
The dimensions of the analyzer are 3U (483 x 524 x 140 mm).
What is the white noise level of the analyzer?
The white noise level of the analyzer is -160 dBc/Hz.
