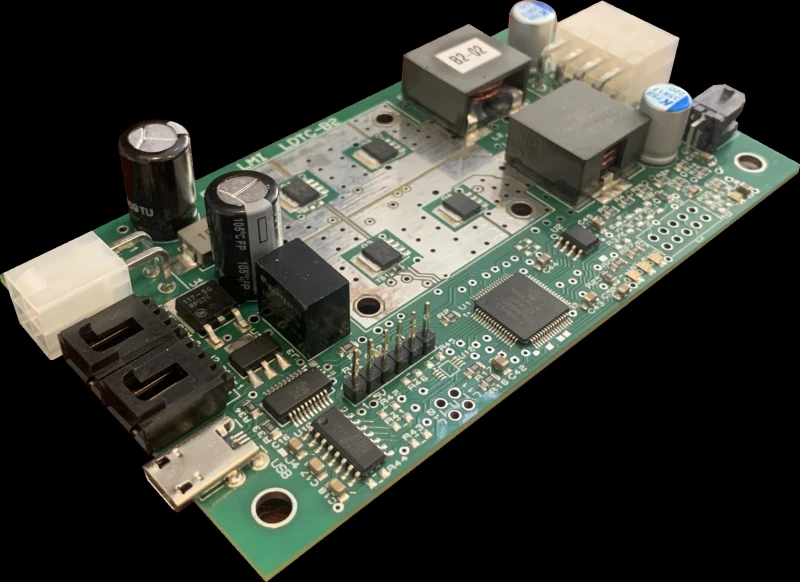

Thumbnail of Digital TEC Temperature Controller ±15 A photo 1

Description

The TCW is a current driver designed to drive and control the temperature of Peltier driven thermal systems. Includes a user interface with tools for controlling, monitoring and calibration. It is fully controllable and configurable through a USB to Serial digital interface and has analog I/O for monitoring and control.

Digital TEC Temperature Controller ±15 A

Visit the Flash Photonics Store

Specifications

Output Current: ±15 A
Output Voltage: ±24 V
Input Voltage: 12 - 25 V
Temperature Stability: 0.01 C
Interface: Digital and Analog

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Bipolar output current up to ±15A
  • Temperature stability up to ±0.01°C
  • Adjustable current limits
  • USB C or Micro USB, and RS232 digital communication
  • Pass-through support for up to 8 controllers on a single USB line
  • Intuitive GUI with auto-calibration
  • Compatible with NTC and RTD temperature sensors
  • Standalone, remote, and script-based operation

Applications

  • Lab Research: A reliable and durable one size fits all solution for controlling the temperature of laser systems as well as a wide range of thermal systems.
  • System Integration: The TCW works excellent as a robust component in laser systems for medical, industrial and defense applications. With analog and digital interface for critical monitoring.

Frequently Asked Questions

What is the TCW-1525?
The TCW-1525 is a 15A bipolar TEC temperature controller designed to drive and control the temperature of Peltier driven thermal systems.
What is the output current and voltage of the TCW-1525?
The TCW-1525 has a bipolar output current of up to ±15A and an output voltage of ±24V.
What temperature stability does the TCW-1525 offer?
The TCW-1525 offers temperature stability up to ±0.01°C.
How can the TCW-1525 be controlled?
The TCW-1525 can be controlled through a USB to Serial digital interface, and it also has analog I/O for monitoring and control. It supports standalone, remote, and script-based operation.
What communication options are available for the TCW-1525?
The TCW-1525 supports USB C or Micro USB, and RS232 digital communication.
Is the TCW-1525 compatible with different types of temperature sensors?
Yes, the TCW-1525 is compatible with NTC and RTD temperature sensors.
What are the dimensions and operating temperature range of the TCW-1525?
The dimensions of the TCW-1525 are 115mm x 64mm x 15mm, and it operates within a temperature range of 10 to 55°C.

Got more questions? Use the inquiry form to ask the supplier directly.
