Description
SF8XXX-ZIF14 series laser diode controller is specially designed to work with laser diodes in butterfly packaging with 14 pin pump laser diodes. These drivers include high stability current source (0.01mА) for laser diode and TEC for maintaining a precise temperature through a Peltier element (TEM) (+/- 0.01 °C). Driver have an integrated mounting Azimuth socket for butterfly packaged devices and large heat sink for stable heat dissipation.
Laser Diode Controller 3A with TEC for Butterfly LD 14 pin Model: SF8300-ZIF14
Specifications
Laser Diode Protection: | Soft-Start Current Ramp/ Current limit/ Temperature limit/ Reverse current protection/ ESD and transient protection |
---|---|
Maximum Current LD (I) : | 3000 mA |
Output Voltage LD (V): | 0.5-3 V |
Current Stability: | 0.1 % |
Current Set Accuracy: | < +/- 1 % |
Output Current Noise: | 10-15 µA |
ТЕС Output Current: | ±4 A |
TEC Output Voltage: | ±4 V |
TEC Output Current Ripple: | 2 ~ 4 mА |
TEC Feedback Sensor NTC: | 10 kOhm |
Temperature Control Range: | +15 to +40 °C |
Dimensions: | 101.6 x 61 x 28.3 mm |
Weight: | 142 g |
Input Voltage Supply (Vin): | 5 V |
User Interface : | RS-232 / UART/ USB/Analog/Trim Potentiometers for Driver Current and TEC Power |
Features

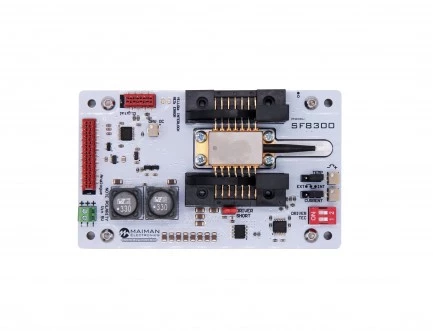

- All-in-One Current Source, Temperature Controller and Mount with Azimuth ZIF Socket for Butterfly
- Compatible with Type 1 Butterfly 14-pin Laser Diode
- LD Low current ripple: ≤ 10uA
- Current stability < 0.1%
- Integrated PID controller, doesn\'t require setup
- Soft-Start Current Ramp, Current Limit, Temperature Limit for Laser Diode Protection

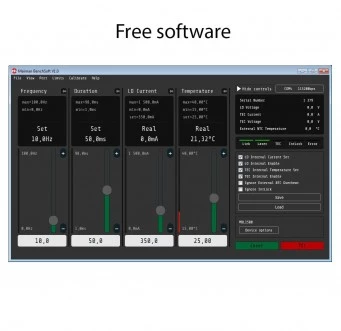

- Free software
Applications
- Driving/controlling Butterfly Laser Diodes 14 pin Pinout Type 1.
- Laser pumping, laser spectroscopy, laboratory test set-ups.
- These devices are an excellent choice for laser diode from II-VI Laser Enterprise, Eblana Photonics, 3SP Technologies, Furukawa and etc.
Frequently Asked Questions
Is there a user manual available for the laser diode controller?
Yes, there is a datasheet and user manual available for the SF8300-ZIF14 laser diode controller. It is recommended to read the manual thoroughly before powering on the driver. If you have any doubts or suggestions, you can contact Maiman Electronics LLC.
What are the applications of the laser diode controller?
The laser diode controller is suitable for driving/controlling butterfly laser diodes 14 pin Pinout Type 1. It can be used for laser pumping, laser spectroscopy, laboratory test set-ups, and is an excellent choice for laser diodes from II-VI Laser Enterprise, Eblana Photonics, 3SP Technologies, Furukawa, and more.
What are the features of the laser diode controller?
The laser diode controller includes an all-in-one current source, temperature controller, and mount with azimuth ZIF socket for butterfly. It is compatible with Type 1 Butterfly 14-pin Laser DiodeLD, has low current ripple, and current stability of less than 0.1%. It also has an integrated PID controller, doesn't require setup, and has a soft-start current ramp, current limit, and temperature limit for laser diode protection. Free software is also included.
What is the SF8XXX-ZIF14 series laser diode controller designed for?
The SF8XXX-ZIF14 series laser diode controller is specially designed to work with laser diodes in butterfly packaging with 14 pin pump laser diodes.
What is the temperature stability of the laser diode controller?
The laser diode controller has a TEC for maintaining a precise temperature through a Peltier element (TEM) with a temperature stability of +/- 0.01 °C.
