Description
The PDD-1000 is a sophisticated series of high-power pulsed diode drivers, engineered to deliver peak output power of up to 10kW, with an average output power reaching up to 1000W. This series is designed, first of all, for medical and medical aesthetic treatments, namely, for hair removal applications, for machines with two handpieces. It allows to use both flashlamp and diode applicators in the same hair removal system simultaneously.
Operating the PDD-1000 is straightforward, requiring a +24 V DC power supply to energize its interface circuits. The series offers several variants, each with different maximum output voltage levels (Vmax), which can be selected at the time of order. The default Vmax is set at 50 V, but it can be customized up to 200 V upon request.
Imax * Vmax shouldn’t exceed maximum peak power (10kW).
It is advisable to select a Vmax that closely aligns with your diodes' operating voltage to achieve optimal performance. The output current level can be adjusted within a working range from 0 A to Imax by applying a DC voltage to the appropriate pin, providing users with flexibility in operation.
Designed for seamless integration into secondary circuits of hair removal systems, the PDD-1000 does not require individual certifications for compliance with medical standards, yet it meets all necessary requirements. This makes it suitable for use in medical systems without the need for modifications, additional filtration, or extra protective measures. The PDD-1000 series stands out in the market due to its high reliability and efficiency. Its OEM design is easy to integrate, and it offers customizable parameters for tailored solutions, making it an attractive choice for businesses seeking robust and adaptable diode drivers.

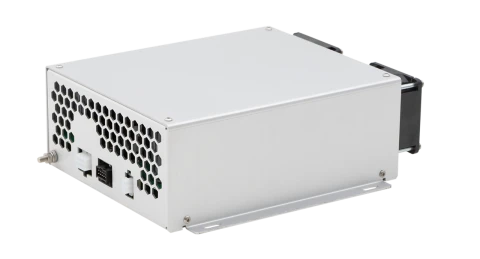

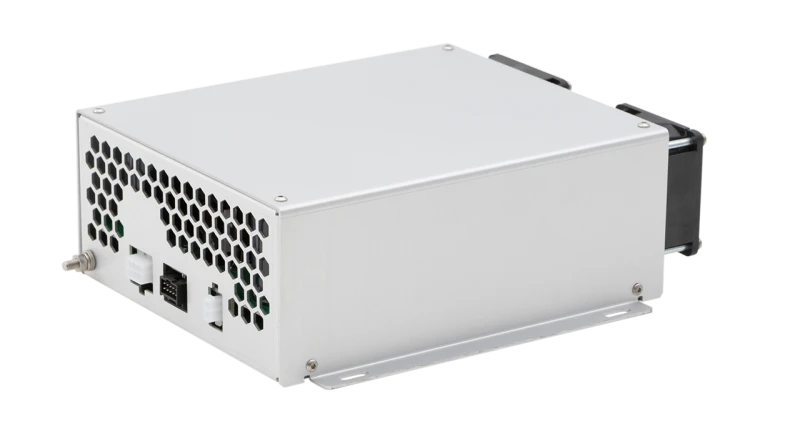

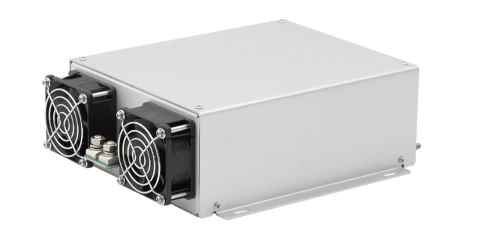

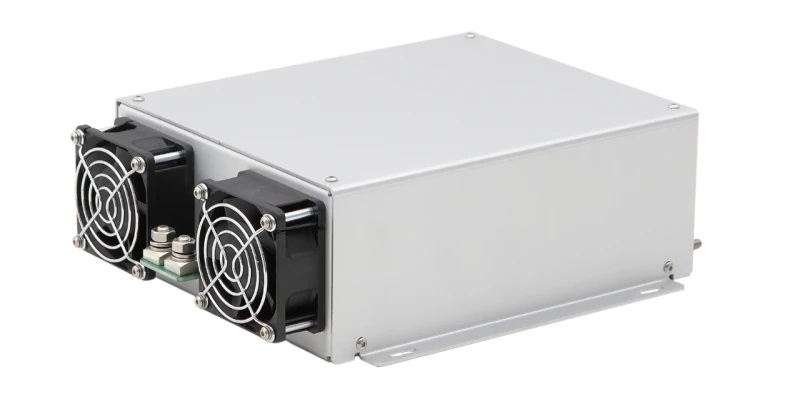

PDD-1000 High-Power Pulsed Diode Driver for Hair Removal Systems
Specifications |
|
|---|---|
| Peak Output Power: | 10 kW |
| Averaged Output Power: | 1 kW |
| Input Voltage: | 300 V |
| Power Input Current: | <5 A |
| +24V DC Input: | +24 V DC, 1 A max |
| Maximum Output Voltage (VMAX): | 50 V by default (up to 200 V on request) |
| Maximum Output Current (IMAX): | 200 A by default |
| Pulse Width: | 1 ms - 100 ms |
| Risetime/falltime: | <1 ms (10-90% level) |
| Current Accuracy: | <1% of IMAX |
| Current Overshoot: | <1% of IMAX |
| Operation Temperature: | 0 … +40 °C |
| Storage Temperature: | -20 … +60 °C |
| Weight: | Approx. 2.2 kg |
Features
- High-Power Output: The PDD-1000 pulsed diode driver series offers peak output power up to 10kW and averaged output power up to 1000W, making it ideal for high-demand applications.
- Optimized for Hair Removal Systems with two handpieces: Specifically designed for direct diode hair removal, it can power both flashlamp and diode applicators in the same system.
- Adjustable Output Current: Users can set the output current level within a range of 0 A to IMAX by applying a DC voltage to the respective pin.
- Medical Compliance: Fully corresponds to medical standards, allowing use in medical systems without modifications or additional filtration.
- Cooling: No external cooling required, simplifying system design.
- Mechanical Specifications:
- Weight: Approx. 2.2 kg
- Dimensions: Refer to dimensional drawing
Applications
1000W pulsed laser diode driver PDD-1000 is a series of drivers. The modules are fast-switching, low-noise, accurate and efficient current sources for laser diodes. They were developed, first of all, for medical and medical aesthetic treatments, namely, for hair removal applications, for machines with two handpieces. It allows to use both flashlamp and diode applicators in the same hair removal system simultaneously.
