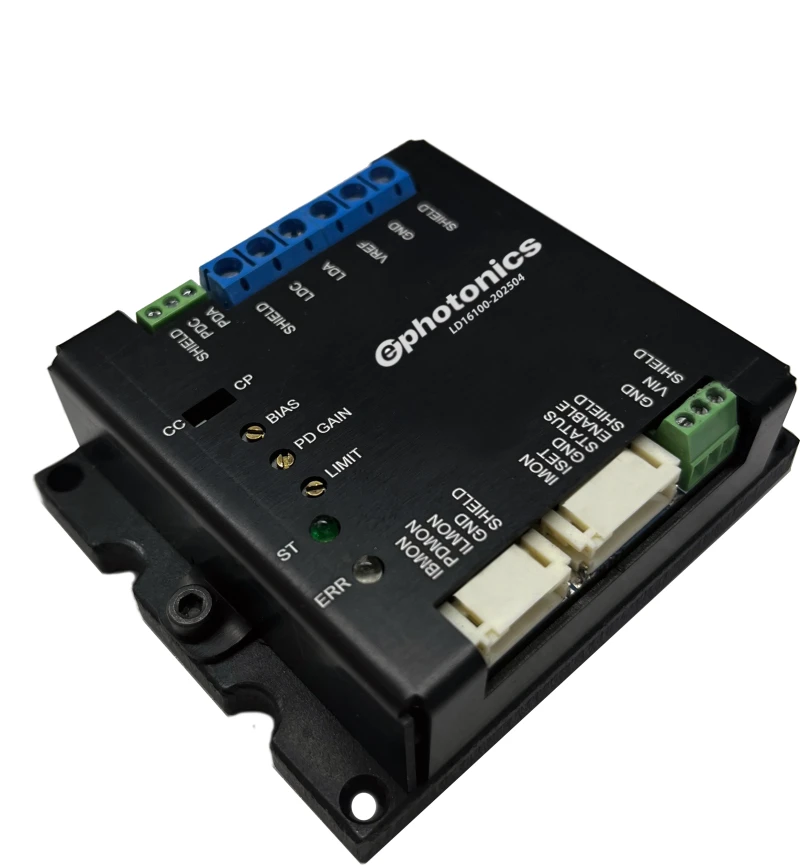

The LDD16100 Laser Diode Driver is a cutting-edge solution designed to meet the demanding requirements of modern laser applications. This driver is part of the renowned LDD series, known for delivering high current and compliance voltage in a remarkably compact design. Its innovative engineering ensures cost-effective and ultra-efficient performance, making it an ideal choice for a wide range of uses.

With an output current capability of up to 16 A and an impressive efficiency of up to 94%, the LDD16100 sets a new standard in laser diode driving technology. Its high compliance voltage, reaching up to 100 V, allows for versatile integration into various systems. The driver supports both constant current and power modes, providing flexibility and precision in operation. Additionally, the adjustable current limit feature ensures safe and reliable performance under diverse conditions.

The LDD16100 is engineered for stability and precision, with long-term current stability of less than 250 ppm. Its rapid rise and fall times, coupled with external arbitrary waveform modulation, make it a robust choice for dynamic applications. The compact dimensions of 57x60x22 mm and a weight of just 140 g make it perfect for OEM integration, offering a small footprint without compromising on power or functionality.

Designed for ease of use and integration, the LDD16100 includes features such as reverse current protection and enable control. Its ability to handle a wide range of supply voltages from 11 to 36 V further enhances its adaptability. Whether for fiber laser pumping, direct diode lasers, or solid-state laser pumping, the LDD16100 provides the reliability and performance needed for advanced laser systems.
