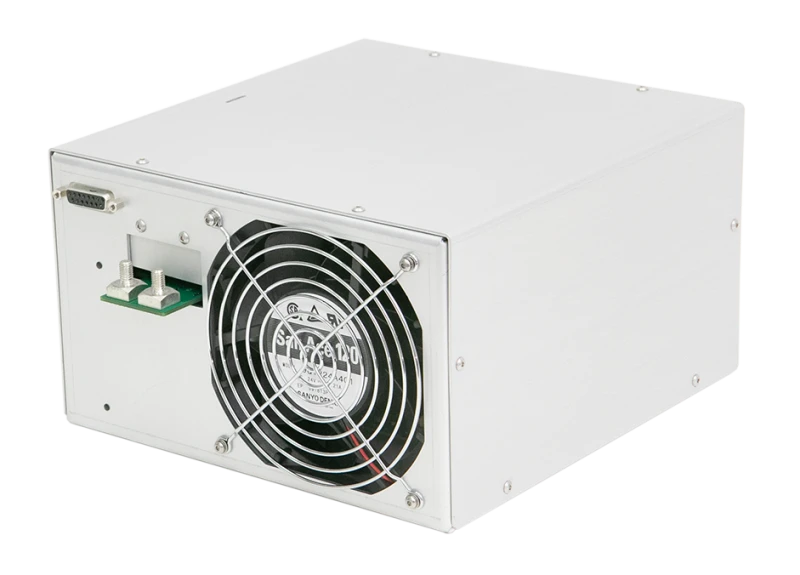

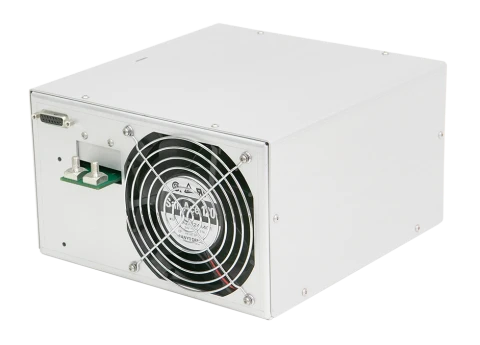

Laser diode driver PDD-1600 , high power up to 1.6 kW
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Poland
-
Sold by:
-
On FindLight:
since 2020
Description
Laser diode driver PDD-1600 is probably the most powerful 1600W pulsed laser diode driver module in the aesthetic world. It provides fast-switching, low-noise, accurate and efficient current for laser diodes. PDD-1600 was developed, first of all, for medical aesthetic treatments, namely, for hair removal, but also have found applications in other medical systems. For hair removal systems it suitable also for 8 cm2 or larger spot sizes.
By default, the driver has averaged output power up to 1600 W and maximum peak output power up to 10 kW (depending on user defined Imax and Vmax), runs on common 100‑240 V AC, 50/60 Hz, so you don’t need extra power supply for the driver. There is a modification available with averaged output power over 2000 W with 200-240 V AC input. Less powerful series are laser diode driver PDD-300 and PDD-1000 specially designed for systems with two handpieces: IPL + diodes.
Several variants of PDD-1600 pulsed laser diode driver module are possible with different maximum output voltage level (Vmax), selected at the moment of order. We would recommend to pick Vmax as close as possible to your diodes operating voltage in order to provide the optimal working mode of the device.
During operation an output current level could be set up in a working range (0 A ‑ Imax) by user, applying a DC voltage to the respective pin.
Since the driver was specially designed for hair removal applications, it is fully compliant to the latest versions of medical standards: IEC 60601-1:2005/AMD1:2012 for electrical safety and IEC 60601-1-2:2014 for EMC, so PDD-1600 can be used in medical systems without any modifications, any additional filtration or additional means of protection.
High reliability and efficiency, easy to integrate OEM design and customizing parameters for tailored solutions make PDD-1600 series an attractive product on the market.
Please, also take a look at less power 300W PDD-300 pulsed laser diode driver module.
We have also laser diode drivers with CW regime
Laser diode driver PDD-1600 , high power up to 1.6 kW
Specifications |
|
|---|---|
| Maximum Current LD: | 200 A |
| Standards: | IEC 60601-1 ed.3 and IEC 60601-1-2 |
| Compliance Voltage, Max: | 100 V |
| Output Power, Max (avg): | 1.6 kW |
| Output Power, Max (peak): | 100 kW |
Features
- 100-240 V AC input
- Peak output power up to 10 kW (up to 15 kW on request)
- Average output power up to 1600 W (up to 2000 W on request)
- Output current up to 200 A
- Compliance voltage up to 100 V
- Forced-air cooling with integrated fan
Applications
Hair removal with direct diodes
