Laser Diode Driver with TEC Model: SF8XXX-NM
Description
SF8XXX series laser diode driver has been specifically designed for laser diode supplies. Driver SF8XXX includes high stability current source (0.01mА) for laser diodes and TEC for precision temperature control using a Peltier element (TEM) (+/-0.01 °C).
Laser Diode Driver with TEC Model: SF8XXX-NM
Specifications |
|
|---|---|
| Maximum Current LD (I): | 250; 750; 1500 mA |
| Output Voltage LD (V): | 0.5-3 V |
| Current Stability: | 0.1 % |
| Current Set Accuracy: | 1 % |
| Output Current Noise: | 10-15 µA |
| ТЕС Output Current: | ±4 A |
| TEC Output Voltage: | ±4 V |
| TEC Output Current Ripple: | 2-4 mА |
| TEC Feedback Sensor NTC: | 10 kOhm |
| Temperature Control Range: | +15 to +40 °C |
| Dimensions: | 57.9 x 61 x 22 mm |
| Weight: | 115 g |
| Input Voltage Supply (Vin): | 5 V |
| User Interface : | RS-232 / UART/ USB/Analog/Trim Potentiometers for Driver Current and TEC Power |
| Laser Diode Protection: | Soft-Start Current Ramp/ Current limit/ Temperature limit/ Reverse current protection/ ESD and transient protection |
Features
- All-in-One Current Source, Temperature Controller
- Low current ripple: ≤ 10uA
- Current stability < 0.1%
- Integrated PID controller, doesn't require setup
- Soft-Start Current Ramp, Current Limit, Temperature Limit for Laser Diode Protection

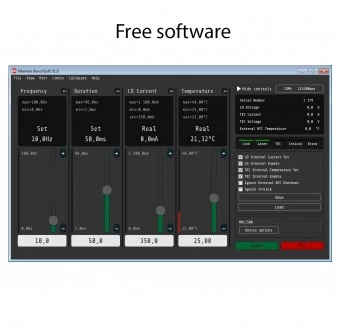

- Free software
Applications
- Driving/controlling Laser Diodes for laser pumping, laser spectroscopy, laboratory test set-ups.
- These devices are an excellent choice for laser diodes from II-VI Laser Enterprise, Eblana Photonics, 3SP Technologies, Furukawa and etc.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Russia
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The SF8XXX series laser diode driver is used for driving and controlling laser diodes for laser pumping, laser spectroscopy, and laboratory test set-ups.
The controls of the SF8XXX series laser diode driver include potentiometers on the board and external input.
The SF8XXX series laser diode driver includes a high stability current source for laser diodes, TEC for precision temperature control, low current ripple, integrated PID controller, soft-start current ramp, current limit, and temperature limit for laser diode protection.
The TEC controller features of the SF8XXX series laser diode driver include temperature stabilization range, low current ripple, integrated PID controller, adjustable TEC output current limit, and working with sensor NTC 10 kOhm.
The SF8XXX series laser diode driver has been specifically designed for laser diode supplies.
