SMD VCSEL 680/850/940 nm 2–7 mW – Compact Multi-Wavelength Laser Diode

Description

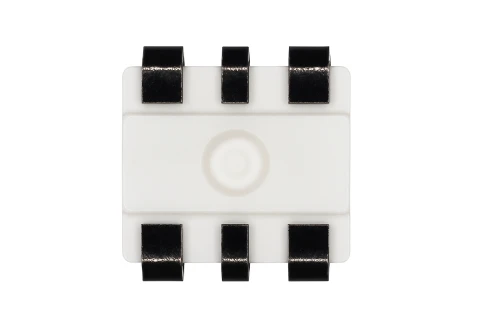

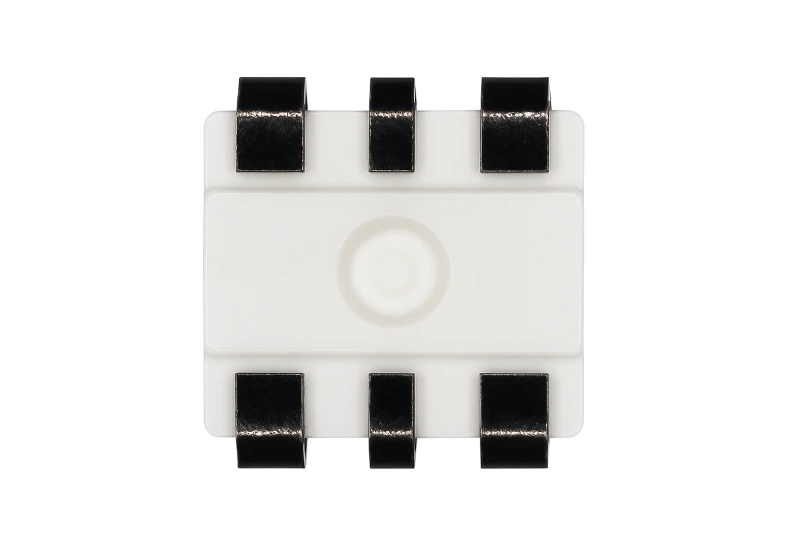

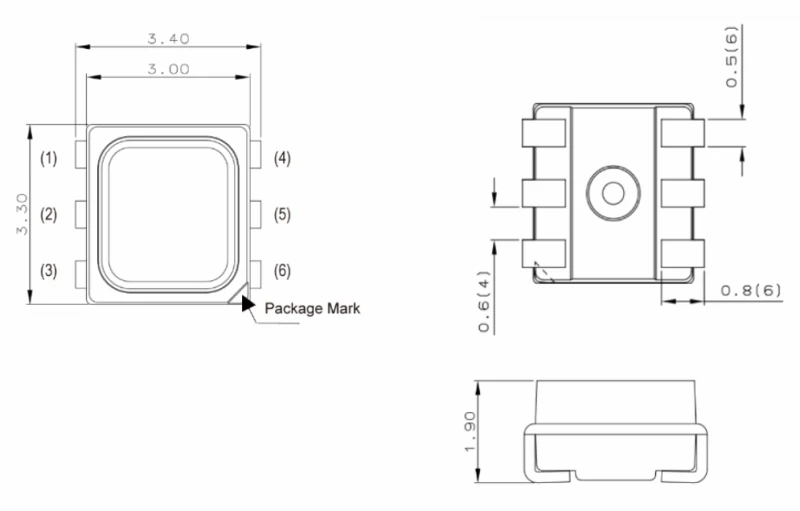

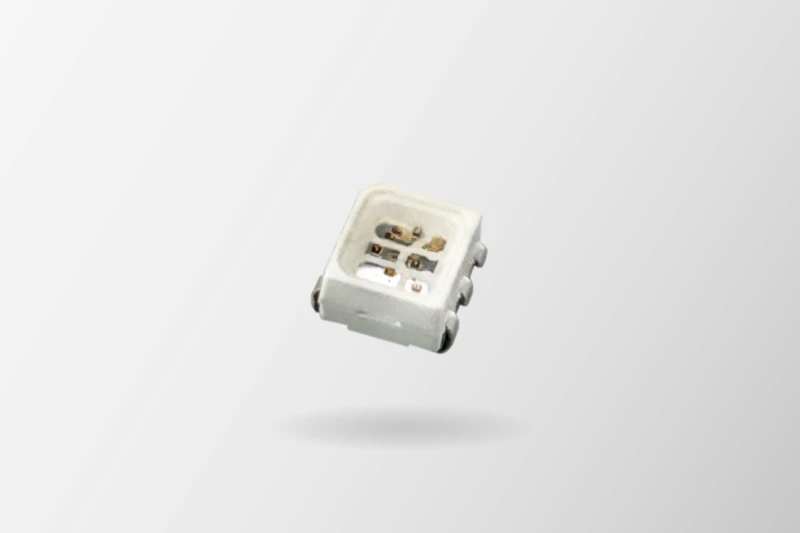

The SMD VCSEL LSZZ030001 is a cutting-edge solution that integrates three wavelengths - 680nm, 850nm, and 940nm - within a compact 3.4 x 3.3 mm package. This innovative design contributes to a lighter, thinner, and shorter product, making it an ideal choice for modern applications where space and weight are critical considerations. The integration of multiple wavelengths in a single package not only optimizes the device's efficiency but also enhances its versatility across various uses.

One of the standout features of this SMD VCSEL is its compatibility with automated production processes. The SMD welding method significantly reduces production losses and man-hours, streamlining manufacturing operations. Additionally, the built-in Zener diode offers superior anti-static capabilities, ensuring reliable performance even in challenging environments. The VCSEL technology is renowned for its high-speed operation, low power consumption, and compact size, positioning it as a pivotal component in the next generation of technological advancements.

Designed with precision, the SMD VCSEL LSZZ030001 is engineered to meet the demands of modern industries. Its energy efficiency and economical nature make it a sustainable choice for manufacturers looking to minimize operational costs while maximizing output. The device's robust construction and advanced features ensure it remains a reliable and durable option for a wide range of applications.

Specifications

Wavelength:	680 nm
Optical Power (CW):	0.002 W
Wavelength:	680/850/940 nm
Output Power:	2 - 7 mW
Threshold Current (680nm):	4 mA
Threshold Current (850nm):	2 mA
Threshold Current (940nm):	1.5 mA
Forward Voltage (680nm):	2.3 V
Forward Voltage (850nm):	2.2 V
Forward Voltage (940nm):	2.3 V
Beam Divergence (FWHM) (680nm) Parallel:	25 deg
Beam Divergence (FWHM) (680nm) Perpendicular:	25 deg
Beam Divergence (FWHM) (850nm) Parallel:	36 deg
Beam Divergence (FWHM) (850nm) Perpendicular:	36 deg
Beam Divergence (FWHM) (940nm) Parallel:	38 deg
Beam Divergence (FWHM) (940nm) Perpendicular:	38 deg
Lasing Wavelength (680nm):	670-690 nm
Lasing Wavelength (850nm):	840-860 nm
Lasing Wavelength (940nm):	930-950 nm
Manufacturer Part Number (MPN):
FindLight SKU:

Download Data Sheet

Features

Compact Design: Combining three wavelengths in a 3.4x3.3mm package, making the product lighter, thinner, and shorter.
Automated Production: The SMD welding method enables automatic production, reducing production losses and man-hours. Engineered for seamless cooperation with automated production lines, ensuring consistency and high throughput.
Enhanced Durability: Built-in Zener diode provides better anti-static ability.
High Performance: VCSEL offers high-speed operation and low power consumption, making it a key component in the new generation of products.
Energy Efficient: Designed to be economical and energy-saving.
Healthcare Applications: Suitable for use in healthcare LLLT products.
Triple Wavelength Integration: Seamlessly combines three distinct wavelengths in a single compact package, optimizing versatility and performance.
Eco-Friendly Performance: Offers superior energy efficiency, making it both an economical and environmentally-conscious choice for diverse applications.

Applications

Advanced Sensing: Use in devices requiring high-speed optical sensing across multiple wavelengths.
Medical Imaging: Ideal for advanced diagnostic equipment requiring precision and reliability.
Consumer Electronics: Integration in smartphones, tablets, and wearable devices for advanced features like facial recognition and augmented reality.
Industrial Automation: Improve accuracy and speed in manufacturing and assembly lines.
Automotive: Deployment in advanced driver assistance systems (ADAS) for better vehicle and road sensing.
Security Systems: Utilize in advanced surveillance and biometric authentication systems.
Healthcare LLLT Devices: Leverage in Low-Level Laser Therapy (LLLT) products for therapeutic applications.
Research & Development: Integral for labs working on next-gen optical technologies and experiments.
Compact Design Needs: Perfect for products requiring condensed laser components without compromising on performance.

Add to Watchlist (My Watchlist)

Ships from:

Taiwan

Sold by:

LECC Technology Co., Ltd.

On FindLight:

since 2023

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What makes the SMD VCSEL LSZZ030001 unique in terms of design?

The SMD VCSEL LSZZ030001 combines three distinct wavelengths within a compact 3.4x3.3mm package. This design allows products to be lighter, thinner, and shorter.

How does the SMD welding method benefit production?

The SMD welding method facilitates automated production, reducing manual hours and production losses.

What inherent features does the built-in Zener diode offer?

The built-in Zener diode provides superior anti-static protection.

What are the key advantages of the VCSEL?

VCSEL boasts benefits like high-speed operation, low power consumption, and a compact size, positioning it as a key component for next-generation applications.

What are the primary applications of the SMD VCSEL LSZZ030001?

It's primarily designed for Healthcare LLLT (Low-Level Laser Therapy) products.

How many wavelengths does the SMD VCSEL LSZZ030001 support?

It supports three wavelengths: 680nm, 850nm, and 940nm.

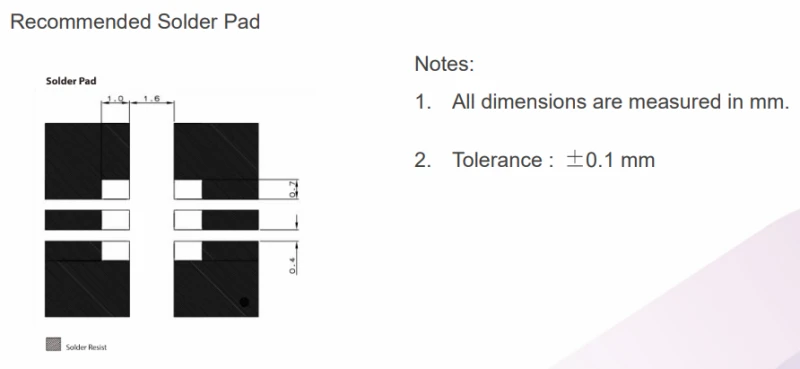

What measures should be taken during soldering?

Ensure the die-pad portion temperature remains below 160°C, use a heat sink for heat radiation on the package, and keep the soldering iron temperature below 180°C for a maximum of 3 seconds.
