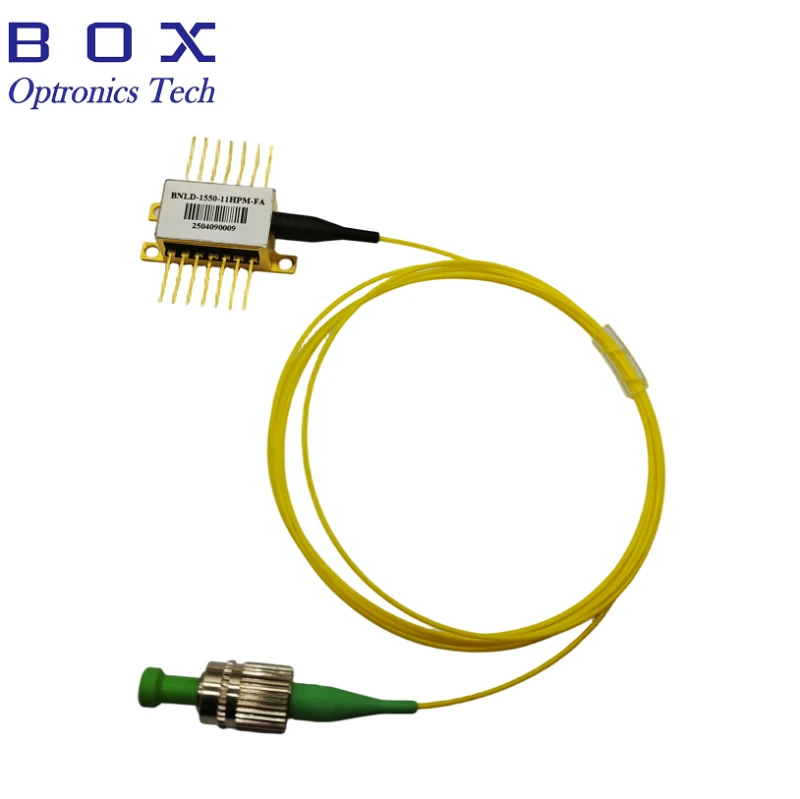

Thumbnail of 1550nm 100mW PM Fiber Coupled Laser photo 1

Description

BFLD-1550-1HPM-FA is a 100 mW, continuous-wave, narrow-linewidth DFB laser module in a standard 14-pin butterfly package.

Centered at 1550 nm with typical linewidth ≤1 MHz, it delivers ultra-stable, single-frequency output through PM fiber with FC/APC connector. The device integrates a high-performance MQW DFB chip, TEC, thermistor, monitor photodiode and 30 dB optical isolator, ensuring low noise, low drift and excellent SMSR (>45 dB).

Operating current is 600 mA typical, bandwidth 2.5 GHz, RIN ≤-160 dB/Hz, and polarization extinction ≥20 dB. Hermetic sealing and Telcordia-qualified components guarantee 25-year lifetime wavelength drift within ±0.1 nm.

Designed for coherent detection, microwave photonics, DWDM transmission and high-precision fiber sensing, the module provides turnkey, turnkey-ready CW light that is both reliable and easy to integrate.

1550nm 100mW PM Fiber Coupled Laser

Visit the Shenzhen Box Optronics Technology Co.,Ltd. Store

Specifications

Center Wavelength: 1.55 um
Output Power: 100 mW
Output Power: 10mW -100mW
Bandwidth(@-3dB): 2.5GHz
Fiber Type: PM fiber
Connector Type: FC/APC

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 100mW High output power
  • Industry-standard, 14PIN butterfly package
  • Built-in TEC and optical isolator
  • High-performance, multi quantum well (MQW) distributed-feedback (DFB) laser
    Reliability: Telcordia GR-468. RoHS

Applications

  • LAN, WAN and metro networks
  • Laser sources
  • CATV systems

Frequently Asked Questions

What is the output power of the BFLD-1550-1HPM-FA laser?
The BFLD-1550-1HPM-FA laser has an output power of 100 mW.
What type of package does the laser use?
The laser uses an industry-standard 14 PIN butterfly package.
What are the main applications of this laser?
The main applications include LAN, WAN and metro networks, laser sources, and CATV systems.
What is the center wavelength of the laser?
The center wavelength of the laser is 1550 nm.
What type of fiber is used with this laser?
The laser uses polarization maintaining (PM) fiber.
What is the operating temperature range for the laser?
The operating case temperature range for the laser is -10 to 65 ℃.
What is the connector type for the fiber?
The fiber uses an FC/APC connector type.
