Description
The 1064nm DFB Laser Diode Butterfly Module is a cutting-edge component designed to meet the rigorous demands of telecommunication applications. This module is meticulously engineered with a built-in Thermoelectric Cooler (TEC), thermistor, and Monitor Photodiode (MPD), all integrated within a robust 14-pin butterfly package. Its hermetic design ensures high reliability and performance, making it an ideal choice for environments requiring precision and stability.
One of the standout features of this laser diode module is its narrow linewidth and high power output, which are critical for applications that demand precision and accuracy. The module supports customization of pin definitions, allowing for tailored solutions to meet specific customer requirements. This flexibility, combined with its high-performance characteristics, makes it a versatile component in various advanced technological fields.
The 1064nm DFB Laser Diode Butterfly Module is designed with user safety and product longevity in mind. It is essential to handle the module with care, as semiconductor chips are sensitive to electro-static damage. Proper grounding and the use of antistatic materials during transportation and handling are crucial to prevent electrical overstress (EOS) damage. By adhering to recommended precautions, users can ensure the module's optimal performance and durability.

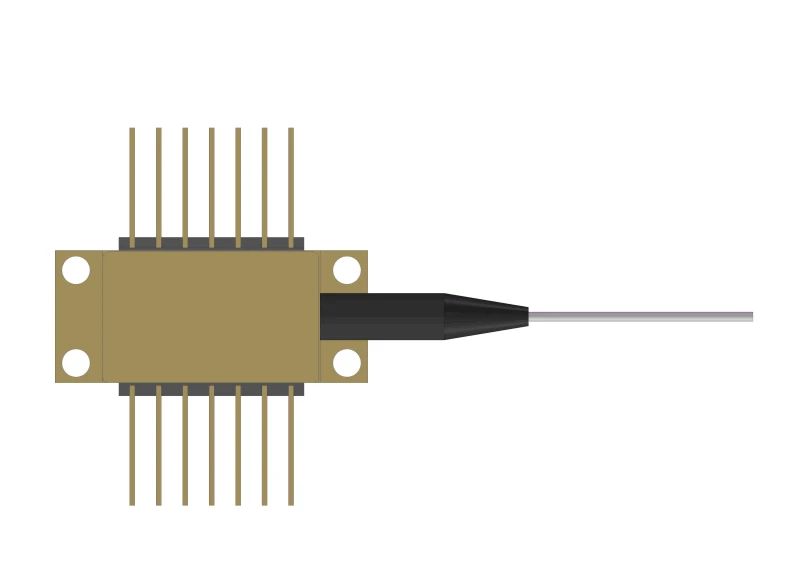

1064nm DFB Laser Diode Butterfly Module with TEC
Specifications
| Center Wavelength: | 1.064 um |
|---|---|
| Output Power: | 36 mW |
| Jacket: | ∅900 um |
| Connector: | FC/APC |
| Fiber Length: | 1 m |
| Fiber Type: | SM CORNING HI1060 |
| Resistance Value: | 10 KΩ |
| TEC Current: | 2.5 mA |
| TEC Voltage: | 4 V |
| Side Mode Suppression Ratio: | 35 dB |
| Peak Wavelength: | 1062-1066 nm |
| Wavelength Current Coefficient: | 0.005 nm/mA |
| Wavelength Temperature Coefficient: | 0.08 nm/℃ |
| Forward Voltage: | 1.5-2 V |
| Slope Efficiency (Front Facet): | 0.5-0.9 W/A |
| Output Optical Power: | 20-36 mW |
| Threshold Current: | 20-30 mA |
| Laser Forward Current: | 500 mA |
| Laser Reverse Voltage: | 2 V |
| Optical Output Power: | 250 mW |
| Operation Temperature: | -60 ℃ |
| Storage Temperature: | -85 ℃ |
Download Data Sheet
Features
- High Reliability: Designed for consistent performance and durability.
- Applications: Ideal for Metrology, Seed Laser, and Spectroscopy.
- Integrated Components: Built-in TEC, thermistor, and MPD within a 14 PIN butterfly package.
- Hermetic Design: Meets telecommunication standards with narrow linewidth and high power.
- Customization: Supports customer-specified pin definition customization.
- Fiber Type: SM CORNING HI1060 with FC/APC connector.
- Fiber Length: 1 meter from module case to fiber end.
- Electro-Static Discharge (ESD) Precautions: Ensure proper grounding and use of antistatic materials during handling and transportation.
Applications
- Metrology
- Seed laser
- Spectroscopy
