Description

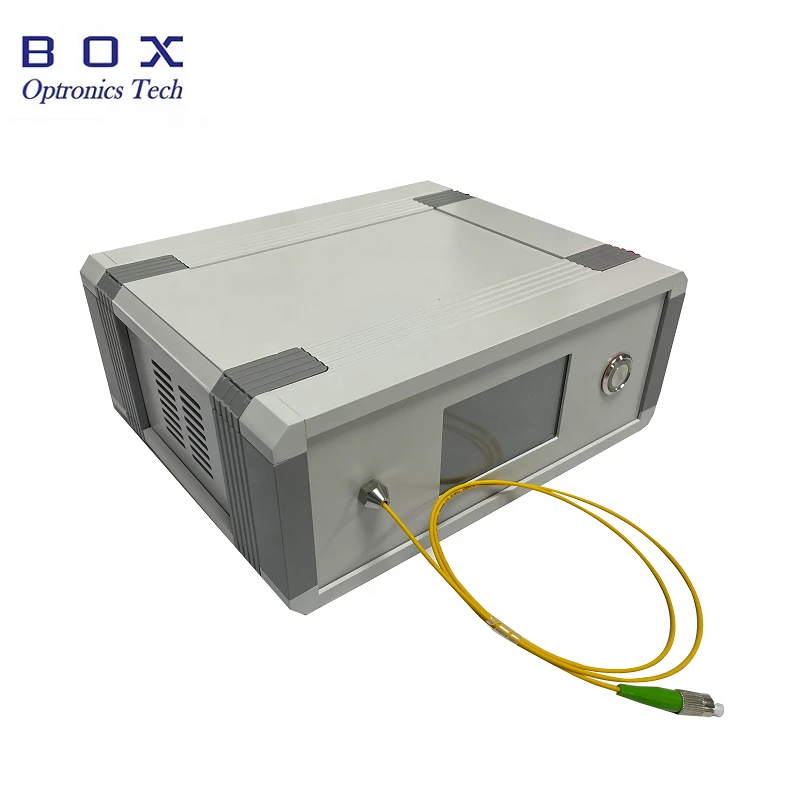

BOX Optronics’ DWDM Laser Source is a high-performance, continuous-wave DFB semiconductor laser engineered for precision WDM applications.
Delivering 10 mW of ultra-stable output across the full C-band from 1528.77 nm to 1610.06 nm on the 100 GHz ITU grid, the module exhibits a narrow linewidth (<5 MHz) and excellent side-mode suppression (>30 dB).
Advanced drive and TEC circuits guarantee ≤±0.02 dB short-term and ≤±0.05 dB long-term power stability, while wavelength accuracy is held within ±0.5 nm.
Units are available in compact 150 × 125 × 20 mm module or benchtop 195 × 220 × 120 mm formats, both with FC/APC connectorized SMF-28 or PM1550 fiber. Operating temperature spans −5 °C to +55 °C; power consumption is <15 W from a single 5 V DC supply. A color LCD provides real-time status, enabling easy integration into rack or field systems.
Ideal for fiber-optic sensing, medical imaging, component testing and DWDM network simulation, the laser source combines telecom-grade reliability with laboratory-grade precision for researchers and system integrators who demand stable, repeatable, ITU-grid-locked emission in a turnkey package.
DWDM Laser Source
Specifications |
|
|---|---|
| Center Wavelength: | 1.52 um |
| Output Power: | 10 mW |
| Wavelength Accuracy: | +/-0.5 nm |
| Spectral Linewidth: | < 5 MHz |
| Side Mode Suppression Ratio: | >30 dB |
| Fiber Type: | SMF-28/PM1550 |
| Connector: | FC/APC |
| Dimensions 1.0: | 195(W)×220(D)×120(H) mm |
Features
- High output power;
- 1528.77~1610.06nm DWDM band Center Wavelengths (100GHz spacing)
- Power and spectral stability;
- Module or Benchtop package;
- Color LCD status display
Applications
- Fiber optic sensing;
- Medical imaging;
- Fiber optic device testing.
