Thumbnail of 760nm 10mW DFB Laser Source photo 1

Description

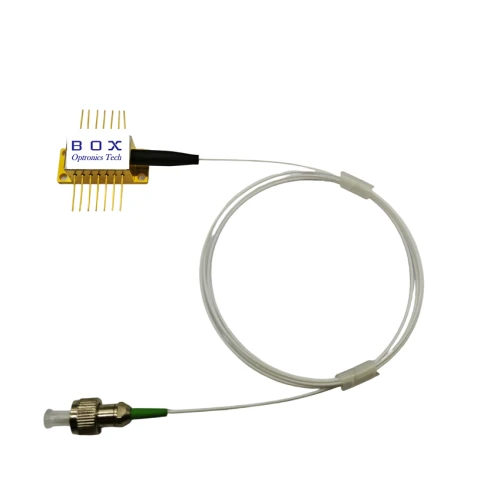

The BFLD-760-10SM-FA is a 760nm 10mW MQW DFB butterfly laser diode integrates a thermistor, TEC , fitted with 780-HP single-mode fiber pigtail.

At 25°C, it outputs minimum 10mW optical power at max 50mA operating current, featuring ≥30dB SMSR and slope efficiency ≥0.4mW/mA. The built-in 10kΩ thermistor (B=3950K) and TEC stabilize its working temperature between 15–40°C.Its operating temperature ranges -20~+65°C, storage from -40~+85°C, complying with Telcordia GR-468 and RoHS.

Two 14-pin pinout types support flexible integration. Protected against overcurrent, overvoltage and 500V ESD, it applies to oxygen detectors, medical laser therapy and laser indicators.



Tel/Whatsapp：+86-18476865009

760nm 10mW DFB Laser Source

Visit the Shenzhen Box Optronics Technology Co.,Ltd. Store

Specifications

Operating Wavelength: 760nm +/-1nm
Optical Output Power: 10 mW
Side Mode Suppression Ratio: 30 dB
Spectral Width (-20dB): 0.1 nm
Slope Efficiency: 0.4 mW/mA

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  •  Multi-Quantum Well (MQW) distributed feedback(DFB) lasers;
  • Built-in thermistor and TEC ;
  •  780-HP SM or PM780 fiber pigtail;
  • Operating temperature -20~ +65℃.

Reliability: Telcordia GR-468. RoHS.

Applications

  • Medical laser treatment;
  • Laser indicator;
  •  Oxygen gas detector.

Frequently Asked Questions

What is the operating wavelength of the 760nm DFB Laser Source?
The operating wavelength of the 760nm DFB Laser Source is 760±1 nm.
What are the packaging options available for the 760nm DFB Laser Source?

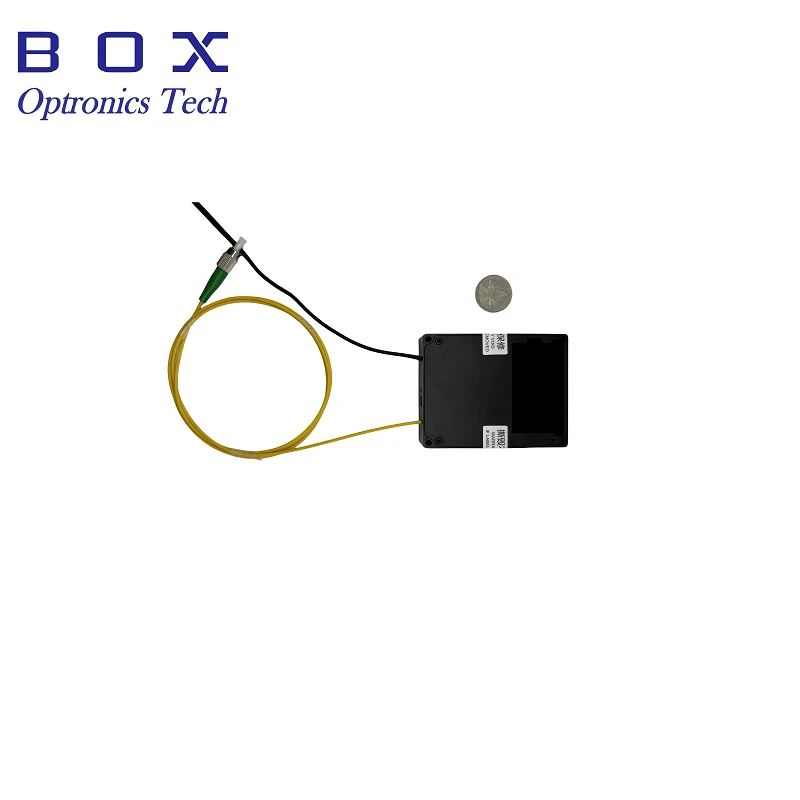

The 760nm DFB Laser Source is available in a desktop (benchtop) or modular package.
What are the main applications of the 760nm DFB Laser Source?
The main applications include medical laser treatment, laser indicators, and oxygen gas detection.

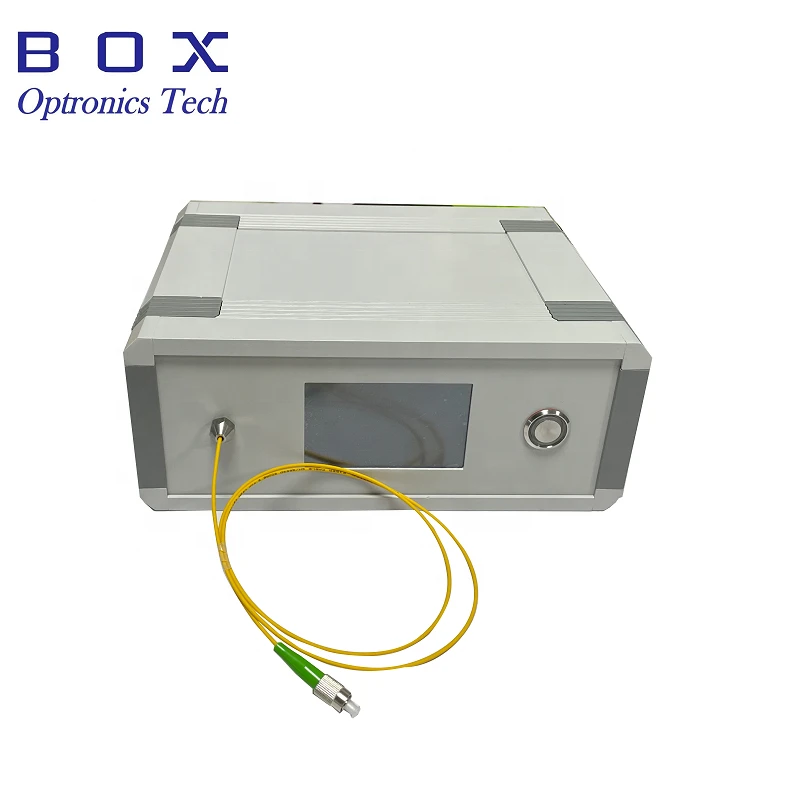

What is the power supply requirement for the benchtop version of the 760nm DFB Laser Source?
The benchtop version requires an AC power supply of 110~240V and consumes less than 20W.
What is the power instability of the 760nm DFB Laser Source over short and long terms?
The short-term (15 minutes) power instability is ≤±0.02 dB, and the long-term (8 hours) power instability is ≤±0.05 dB.
What type of connector is used with the 760nm DFB Laser Source?
The 760nm DFB Laser Source uses an FC/APC connector.
What is the operating temperature range for the 760nm DFB Laser Source?
The operating temperature range is -5°C to +55°C.
