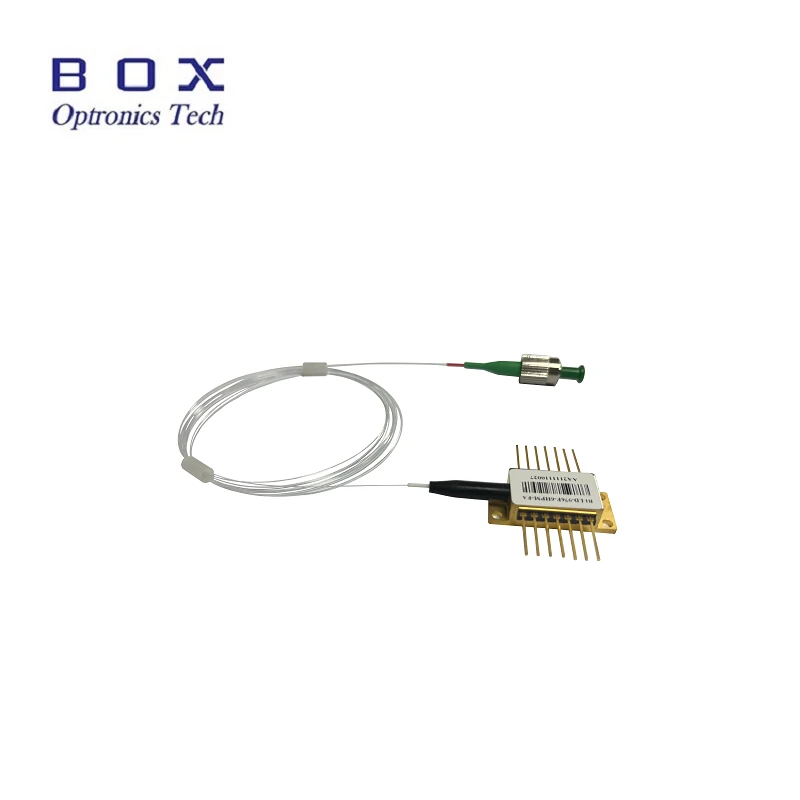

Thumbnail of 980nm 600mW Pump Laser photo 1

Description

BOX Optronics’ BFLD-980F-6HPM-N0 is a Telcordia-grade 980 nm pump laser module engineered for high-gain, low-noise EDFA chains.

A fiber-Bragg-grating-locked chip delivers 600 mW of kink-free, single-mode power at 974-977 nm with <2 nm RMS width and ±0.5 nm thermal drift, ensuring flat DWDM gain across the C-band.

The 14-pin butterfly package integrates a high-efficiency TEC, 10 kΩ thermistor and rear-facet monitor for closed-loop wavelength and power stability from –5 °C to 75 °C case. Epoxy-free, flux-free construction and PM980 fiber pigtail guarantee long-term reliability and low splice loss in submarine, CATV trunk and reduced-pump-count amplifier architectures.

 Electrical interfaces follow industry pin-out; no external optics are required. Units are burn-in screened and shipped with 1.5 m bare fiber for immediate integration into EDFA or Raman cards.

Custom center wavelengths, power levels and connectorization are available on request

980nm 600mW Pump Laser

Visit the Shenzhen Box Optronics Technology Co.,Ltd. Store

Specifications

Center Wavelength: 0.976 um
Output Power: 600 mW
200-700: mW
Spectrum Width: 2 nm
Pigtail Type: Bare fiber
Fiber Type: PM980 fiber

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Kink-free operating power up to 600mW
  • epoxy-free, and flux-free 14-PIN butterfly package with SM Hi1060 or PM fiber
  • Fiber Bragg grating stabilization
  •  Wavelength selection available
  •  Integrated thermoelectric cooler, thermistor, and monitor diode

Applications

  • Dense wavelength division multiplexing(DWDM) erbium doped fiber amplifiers(EDFA)
  • Reduced pump-count EDFA architectures
  • Very long distance cable television(CATV) trunks and very high node count distribution

Frequently Asked Questions

What is the peak wavelength of the 1392nm DFB Butterfly Laser Diode?
The peak wavelength of the 1392nm DFB Butterfly Laser Diode is 1392 nm.
What are the key features of the 1392nm DFB Butterfly Laser Diode?
The key features include a butterfly package with built-in TEC and NTC, stable wavelength and high power output, high reliability, fast response, and good stability.
What applications is the 1392nm DFB Butterfly Laser Diode suitable for?
It is suitable for focusing on H2O gas and is non-reactive to other gases, water, and dust.
What is the maximum operating case temperature for the laser diode?
The maximum operating case temperature is 60 ℃.
What is the side-mode suppression ratio (SMSR) at 50 mA?
The side-mode suppression ratio (SMSR) at 50 mA is between 40 and 55 dB.
What type of fiber is used with the 1392nm DFB Butterfly Laser Diode?
The laser diode uses a single-mode fiber with a core/cladding diameter of 8.2/125 µm.
What is the TEC power consumption of the laser diode?
The TEC power consumption is up to 3.8 W.

Got more questions? Use the inquiry form to ask the supplier directly.
