Page 6 - CW Semiconductor Lasers

This 650nm diode laser produces 1000mW from a 150um emitter in the free space packages or 800mW from the fiber in the fiber coupled packages. It has a low threshold current and high slope efficiency, which results in a low operating current which enhances reliability.

Specifications

Center Wavelength: 0.65 um
Output Power: 1000 mW
Emitter Size: 150 um
This 680nm diode laser produces 2000mW from a 300um emitter in the free space packages or 1600mW from the fiber in the fiber coupled packages. It has a low threshold current and high slope efficiency, which results in a low operating current which enhances reliability.

Specifications

Center Wavelength: 0.68 um
Output Power: 2000 mW
Emitter Size: 300 um
This 680nm diode laser produces 1200mW from a 150um emitter in the free space packages or 960mW from the fiber in the fiber coupled packages. It has a low threshold current and high slope efficiency, which results in a low operating current which enhances reliability.

Specifications

Center Wavelength: 0.68 um
Output Power: 1200 mW
Emitter Size: 150 um

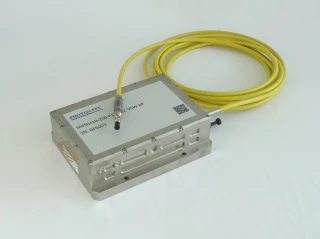

The 450nm diode laser emits 200W CW from a 200µm fiber pigtail with a BPP of 20mm.mrad.The diode module comes with hermetically sealed package, water cooling baseplate and a high-power SMA connector. Thermistor and photodiode are integrated in the package. To drive the diode an appropriate power supply is available. 450nm laser ...

Specifications

Center Wavelength: 0.45 um
Output Power: 200000 mW
Optical Fiber Core: 200 µm
Numerical Aperture: 0.22
Beam Parameter Product: 22 mm.mrad
Low noise tunable laser for sensing and scientific applications. Based on telecom platform, with high volume production and inherent quality control and reliability. Optimized firmware and electronics design ensures suitability for highest demanding applications and provides alternative to high-cost single-wavelength solutions for ...

Specifications

Center Wavelength: 1.55 um
Output Power: 40 mW

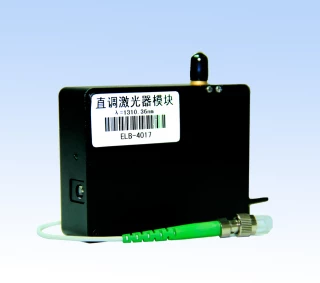

DML -XX series of analog broadband direct-tuning transmitters use a highly linear microwave direct-coupled DFB laser (DML), a fully transparent operating mode without RF drive amplifiers and integrated automatic power control (APC) and automatic temperature control (ATC) circuit to ensures that the laser can transmit up to 18 GHz of ...

Specifications

Center Wavelength: 1530 um
Output Power: 10 mW

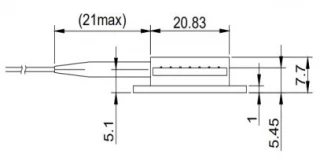

The DWDM Butterfly Laser Module RZLD-1562.23-10-BP-FA-14 is a high-quality, high-power DFB laser diode with a butterfly package that's perfect for optical transmitter systems. With a built-in thermo-electric cooler (TEC), this laser diode is able to function properly in a variety of environments. This laser module features high ...

Specifications

Center Wavelength: 1.562 um
Output Power: 5 mW
Optical Isolation (optional): 35 dB
Spectral Width (-20 DB): 0.1 to 1 nm
Wavelength Temperature Coefficient: 0.08 to 0.12 nm/degC
This 780nm red diode laser produces 1200mW from a 50um emitter in the free space packages or 960mW from the fiber in the fiber coupled packages. It has a low threshold current and high slope efficiency, which results in a low operating current which enhances reliability.

Specifications

Center Wavelength: 0.78 um
Output Power: 960 mW
This 1550nm red diode laser produces 1000mW from a 60um emitter in the free space packages or 800mW from the fiber in the fiber coupled packages. It has a low threshold current and high slope efficiency, which results in a low operating current which enhances reliability.

Specifications

Center Wavelength: 1.55 um
Output Power: 800 mW

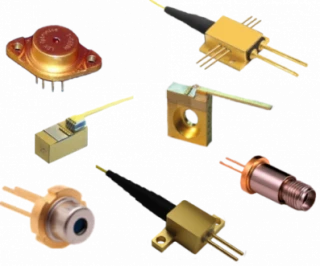

This 1064nm red diode laser produces 1500mW from a 50um emitter in the free space packages or 1200mW from the fiber in the fiber coupled packages. It has a low threshold current and high slope efficiency, which results in a low operating current which enhances reliability.

Specifications

Center Wavelength: 1.064 um
Output Power: 1200 mW

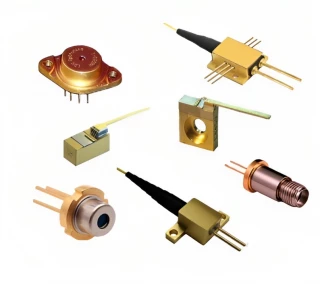

The LDX-XXXX-885 is a high-power multimode laser diode designed to provide reliable and efficient laser performance at a wavelength of 885nm. This laser diode offers a wide range of output power options, with up to 6000mW in free space and up to 4800mW when used with fiber optics. It boasts high output power and dynamic range, ...

Specifications

Center Wavelength: 0.885 um
Output Power: 2500 mW
Operating Temperature: 25 °C
Threshold Current: 200 mA
Operating Current: 2500 mA
This 860nm diode laser produces 1500mW from a 100um emitter in the free space packages or 1250mW from the fiber in the fiber coupled packages. It has a low threshold current and high slope efficiency, which results in a low operating current which enhances reliability.

Specifications

Center Wavelength: 0.86 um
Output Power: 1500 mW
The LDX-XXXX-860 is a versatile multimode laser diode with a wavelength of 860nm. It offers high output power and dynamic range, making it suitable for a wide range of applications. Custom packaging options are available, and custom wavelengths and laser designs can be accommodated upon request.

Specifications

Center Wavelength: 0.86 um
Output Power: 4000 mW
Operating Temperature: 25 °C
Threshold Current: 575 mA
Operating Current: 3900 mA
This 830nm diode laser produces 1600mW from a 100um emitter in the free space packages or 1280mW from the fiber in the fiber coupled packages. It has a low threshold current and high slope efficiency, which results in a low operating current which enhances reliability.

Specifications

Center Wavelength: 0.83 um
Output Power: 1600 mW
High-power diode laser bars for the most demanding applications. They are extremely reliable, efficient, and durable. This high power laser diode bar is available on the standard CS package. Other package options are available upon request. Our semiconductor products are easily assembled using standard soldering methods. The material ...

Specifications

Center Wavelength: 0.69 um
Output Power: 12000 mW
Operating Current: 22000 mA
High-power diode laser bars for the most demanding applications. They are extremely reliable, efficient, and durable. This high power laser diode bar is available on the standard CS package. Other package options are available upon request. Our semiconductor products are easily assembled using standard soldering methods. The material ...

Specifications

Center Wavelength: 0.76 um
Output Power: 20000 mW
Operating Current: 28000 mA
High-power diode laser bars for the most demanding applications. They are extremely reliable, efficient, and durable. This high power laser diode bar is available on the standard CS package. Other package options are available upon request. Our semiconductor products are easily assembled using standard soldering methods. The material ...

Specifications

Center Wavelength: 0.73 um
Output Power: 20000 mW
Operating Current: 12000 mA
High-power diode laser bars for the most demanding applications. They are extremely reliable, efficient, and durable. This high power laser diode bar is available on the standard CS package. Other package options are available upon request. Our semiconductor products are easily assembled using standard soldering methods. The material ...

Specifications

Center Wavelength: 0.67 um
Output Power: 10000 mW
Operating Current: 21000 mA
High-power diode laser bars for the most demanding applications. They are extremely reliable, efficient, and durable. This high power laser diode bar is available on the standard CS package. Other package options are available upon request. Our semiconductor products are easily assembled using standard soldering methods. The material ...

Specifications

Center Wavelength: 0.66 um
Output Power: 10 mW
Operating Current: 21000 mA
High-power diode laser bars for the most demanding applications. They are extremely reliable, efficient, and durable. This high power laser diode bar is available on the standard CS package. Other package options are available upon request. Our semiconductor products are easily assembled using standard soldering methods. The material ...

Specifications

Center Wavelength: 0.68 um
Output Power: 12000 mW
Operating Current: 24000 mA
