Description

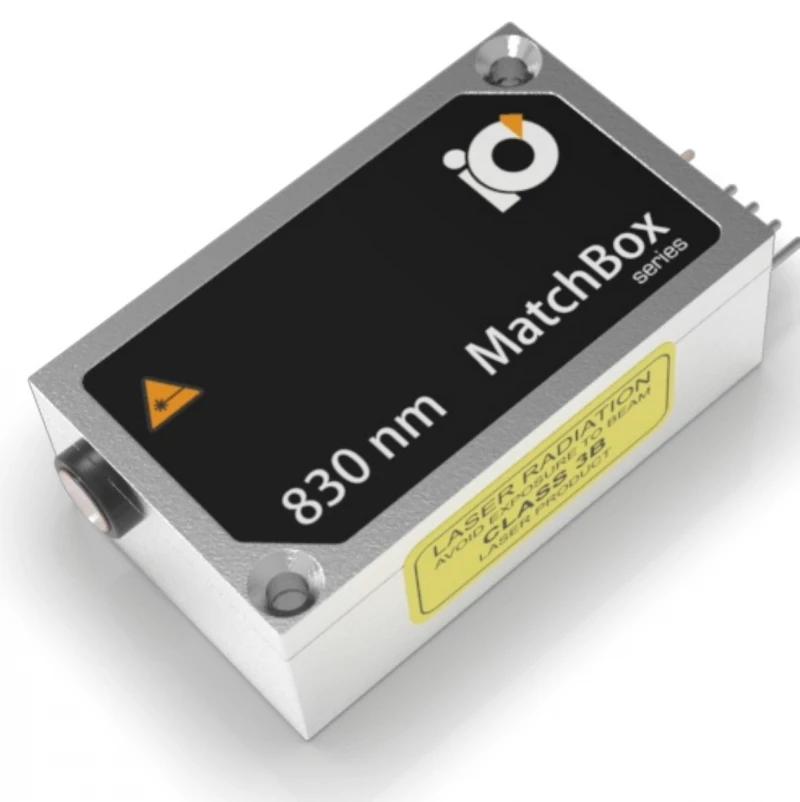

The 830L-1XA Laser Diode Module is a compact and versatile laser source from RPMC Lasers Inc. It operates at a wavelength of 830nm and offers multiple fiber-coupled options.

With its ultra-compact all-in-one design and thermally stabilized optics, this laser module ensures reliable and maintenance-free operation. It features automatic power control and operates on a 5VDC input voltage. The 830L-1XA is suitable for a wide range of applications and is available in various configurations.

0830L-11A-NI-NT-NF: Laser Diode Module (Single Mode | 830nm | 130mW)

Specifications

Center Wavelength: 0.83 um
Output Power: 130 mW
Polarization Direction: Horizontal
Polarization Contrast: 2000:1
Longitudinal Modes: Multiple
Modulation Bandwidth: 10 MHz
Spectral Line Width FWHM: 0.5 nm
Intensity Noise: 0.25 %
Laser Safety Class: 3B
Power Stability: 0.1 %
Transversal Modes: TEM00
Net Weight: 0.12 kg
Storage Temperature: -10 to +50 ℃
Temperature Stabilization: Internal TEC
Warm Up Time: 0.5 min
Optimum Heatsink Temperature: 20 °C
Dimensions: 50 x 30 x 18 mm
Max. Power Consumption: 2 W
External Power Supply Requirement: +5 V DC, 1.5 A
Input Voltage: 5 VDC
M Effective: 1.2
Vertical Beam Divergence: 0.9 mrad
Horizontal Beam Divergence: 1.6 mrad

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 830nm
  • Multiple Fiber Coupled Options
  • Ultra-compact All-in-one Design
  • Thermally Stabilized Optics
  • Monolithic Design
  • Hermetically Sealed
  • Automatic Power Control
  • 5VDC Input Voltage

Applications

  • Life Science Applications
  • Flow Cytometry
  • Optical Surface Flatness Testing
  • Confocal Microscopy
  • Doppler LIDAR
  • Raman Spectroscopy

Frequently Asked Questions

What are some applications of the 0830L-11A-NI-NT-NF laser diode module?
Some applications of the 0830L-11A-NI-NT-NF laser diode module include laser diffraction particle analysis, confocal microscopy, food sorting, and flow cytometry.
What is the control interface type of the 0830L-11A-NI-NT-NF laser diode module?
The control interface type of the 0830L-11A-NI-NT-NF laser diode module is UART/USB.
What is the warranty period for the 0830L-11A-NI-NT-NF laser diode module?
The warranty period for the 0830L-11A-NI-NT-NF laser diode module is 12 months.
What is the output power of the 0830L-11A-NI-NT-NF laser diode module?
The output power of the 0830L-11A-NI-NT-NF laser diode module is 130mW.
What is the wavelength of the 0830L-11A-NI-NT-NF laser diode module?
The wavelength of the 0830L-11A-NI-NT-NF laser diode module is 830nm.

Got more questions? Use the inquiry form to ask the supplier directly.
