Description
The M15 EEL Laser (405nm, 150mW) is a state-of-the-art laser device designed for precision and versatility. It incorporates an APC circuit that ensures unwavering light output power, setting it apart as a premium adjustable focus module. Depending on the unique demands of your site conditions, this module offers unparalleled focusing capabilities, ensuring an evenly distributed energy output, making it indispensable for advanced measurement tasks.
Renowned for its outstanding stability, the M15 EEL Laser Module is engineered to deliver results with minimal error margins. One of its standout features is its compatibility with a variety of optical lenses, including DOE and Powell Lens. This adaptability allows users to modify graphics effortlessly, whether you need random numbers, precise parallel lines, cross lines, or more. Furthermore, whether your applications require Continuous Wave (CW) or Pulse Wave (PW) operations, this module stands ready to deliver.
For professionals seeking accuracy and flexibility, the M15 EEL Laser Module (405nm, 150mW) is the ultimate choice.

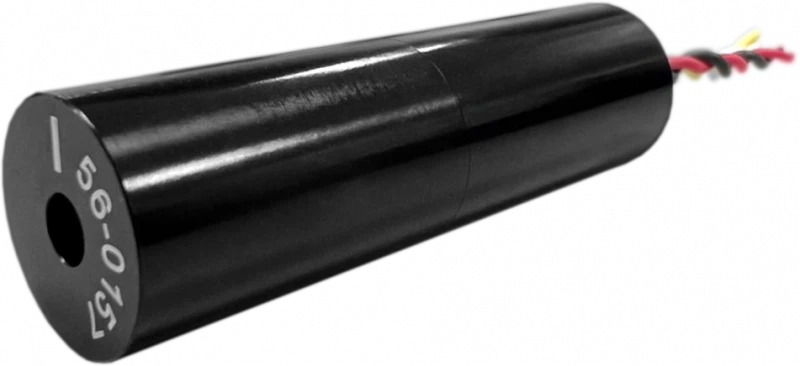

M15 EEL Laser 405nm 150mW - AD40F00002
Specifications
| Center Wavelength: | 0.405 um |
|---|---|
| Output Power: | 150 mW |
| CW Optical Power: | 150 mW |
| Operating Current: | 120 mA |
| Monitor Current (Iop=120mA): | 0.85 mA |
| Operating Voltage: | 5 V |
| Wavelength At Peak Emission: | 405 nm |
| Operating Temp. Range: | -10 to 50 °C |
| Storage Temp. Range: | -40 to 85 °C |
| Spot Size At 285mm @13.5%: | <120/240 um |
| Driving Circuit: | APC |
Download Data Sheet
Features
- APC Control Board: Ensures consistent light output power.
- Adjustable Focus: Can be focused according to site conditions, ensuring uniform energy distribution.
- High Stability: Characterized by stable performance and a minimal error rate.
- Pattern Versatility: Compatible with various optical lenses like DOE and Powell Lens to produce different graphics such as random numbers, cross lines, parallel lines, etc.
- Operating Modes: Capable of operating in CW or PW modes.
- Customizable: Offers variations in patterns and wavelengths based on user requirements.
Applications
- Automated Inspection: Suitable for AOI visual inspection processes.
- Medical Precision: Used in precise positioning applications for medical purposes.
Frequently Asked Questions
What's the primary purpose of the APC Control Board?
How can the focus of the module be adjusted?
Can the module produce different graphical patterns?
What is the operating mode of this laser?
What is the peak emission wavelength of EEL M15 blue laser module?
Is there any specific safety gear recommended while using this module?
What type of lens material does this 405nm laser module use?
What precautions should be taken during soldering?
For what medical applications is this module useful?
