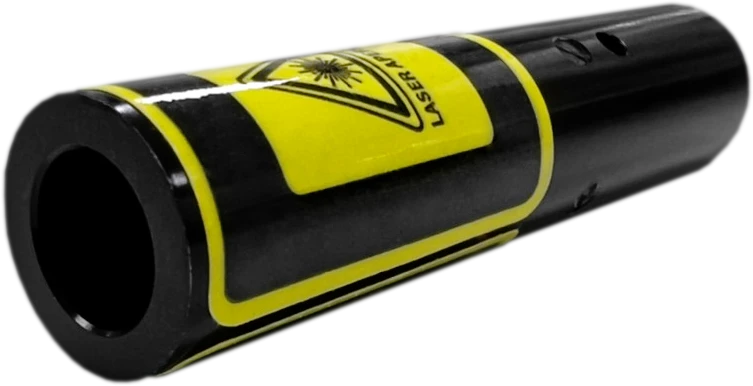

M12 655 nm 0.409 mW EEL Laser Module – Adjustable Focus, Stable Output

Description

Discover the unparalleled performance of our 650nm diode laser module, EEL M12. Renowned for its superior heat dissipation, this module is powered by an advanced APC circuit ensuring a consistently stable optical power output. With a sturdy structure crafted from a high-quality aluminum anode finish, this laser module not only boasts high stability but also offers customizable appearance colors to fit varied customer preferences.

What sets our 650nm diode laser module apart is its design, being one of LECC's most common public version sizes. It's tailored to save customers from incurring additional mold costs during the early stages of development. With our efficient manufacturing capacity, customers can swiftly transition from order placement to mass production, thereby reducing development time and accelerating market entry.

Specifications

Center Wavelength:	0.655 um
Output Power:	0.4 mW
CW Optical Power:	0.7 mW
Operating Current:	100 mA
Operating Voltage:	5 5
Wavelength At Peak Emission:	655 nm
Operating Temp. Range:	0 to 70 °C
Storage Temp. Range:	-10 to 85 °C
Line Size At 400mm:	1.5 mm
Fan Angle:	71 deg.

Download Data Sheet

Features

Stable power output of 1-2mW

Excellent heat dissipation

APC circuit integration for consistent optical output

Customizable appearance color

Sturdy aluminum anode structure

High stability design

Saves on mold costs during initial development

Ready for mass production orders

Meets Class 2M specifications

Wavelength customization available on demand

Applications

Medical Applications:

Diagnostic tool illumination

Medical measurement location aids

Surgical site illumination

Augmented and Virtual Reality:

AR headset tracking systems

VR positional tracking

MR (Mixed Reality) device calibration

Aiming and Positioning:

Precision aiming devices

Surveying equipment illumination

Target designation in sports or recreational activities

Manufacturing and Production:

Assembly line positioning

Laser engraving and marking assistance

Quality control inspection aids

Research & Development:

Laboratory experiments requiring precise light sources

Photonics and optics research tools

Prototype development for new optical devices

Add to Watchlist (My Watchlist)

Ships from:

Taiwan

Sold by:

LECC Technology Co., Ltd.

On FindLight:

since 2023

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the power output of the EEL M12 AL63010004 laser module?

The power output of the EEL M12 AL63010004 laser module is stable and lies between 1 to 2mW.

How does the EEL M12 AL63010004 ensure stable optical power output?

The module includes an APC circuit ensuring excellent heat dissipation and consistent power output.

Can the appearance color of the EEL M12 be customized?

Yes, the appearance color of the EEL M12 can be tailored according to customer requirements.

How does the EEL M12 AL63010004 help in cost-saving during development?

It's one of the standard public version sizes of LECC, which eliminates the cost of molds in the initial phase of development.

What are the primary applications of the EEL M12 AL63010004?

The EEL M12 is primarily used in medical measurement locations, AR, VR, MR applications, and as an aiming device.

What is the wavelength at peak emission for the EEL M12?

The wavelength at peak emission for the EEL M12 is 520nm.

What precautions should be taken when handling the EEL M12 laser module?

Measures include grounding the device and circuits, wearing anti-static clothing, using wrist straps, storing in anti-static containers, and designing circuits to avoid excessive current spikes.
