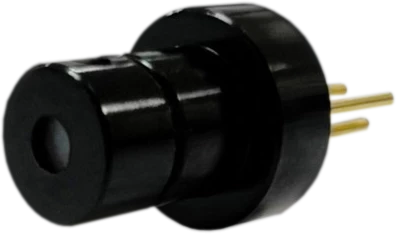

M6 655 nm 2–4 mW EEL Laser Module – Compact, High Precision

Description

The EEL series 655nm Laser Diode Module introduces a state-of-the-art diode laser module with a diameter of just 6mm. Standing out as the most compact in our standard public version modules, this semiconductor laser uniquely combines precision and miniaturization.

Primarily designed for applications like signal processing, sensing, instrumentation, and sweeping robots, this 658nm diode laser module is also pivotal in automation and process control, testing, and measurement. Given its unparalleled efficiency, it's swiftly becoming an essential tool in the modern automation industry.

Specifications

Center Wavelength:	0.655 um
Output Power:	2 mW
CW Optical Power:	2~4 mW
Operating Current:	40 mA
Operating Voltage:	2.3 V
Wavelength At Peak Emission:	655 nm
Operating Temp. Range:	-10 to 60 °C
Storage Temp. Range:	-40 to 85 °C

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Optimized for Portability: Designed with a sleek form factor making it perfect for portable devices and on-the-go applications.
High Optical Energy Density: Ensures more accurate measurements, improving the precision and reliability of readings.
Ultra-Fine Beam Size: With a beam size of less than 1mm, it guarantees pinpoint accuracy for focused operations.
Consistent Performance: Features a narrow range of PTP variation, ensuring stable and reliable outputs during operation.

Applications

Biotech Solutions: Enables advanced biological research and medical diagnostics.
Precision Sensors: Essential for accurate data collection and environmental monitoring.
PM2.5 Detection: Critical for monitoring air quality and ensuring health safety.
Efficient Barcode Scanning: Ensures quick, accurate reads for streamlined operations.

Name

Work Email

Organization

Your message to supplier

Ships from:

Taiwan

Sold by:

LECC Technology Co., Ltd. ✓ Verified Supplier

On FindLight:

since 2023

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the diameter of the EEL M6 series 655nm Laser Diode Module?

The diameter of the EEL M6 series is 6mm, making it the smallest of the standard public version modules in the Dishen Electronics EEL series.

Which industries or applications can benefit from the EEL M6?

The EEL M6 is used in signal processing, sensing and instrumentation, automation and process control, sweeping robots, testing, and measurement. It's especially indispensable in the automation industry.

What are the specific features of the EEL M6?

The EEL M6 is suitable for portable products, offers high optical energy density for more accurate measurements, has a beam size of less than 1mm, and a narrow range of PTP variation.

What is the operating power of the EEL M6?

The EEL M6 operates between 3-4mW with a peak emission wavelength of 658nm.

Are there any cautions related to the laser diode operation?

Yes, the laser diode is sensitive to Electrostatic Discharge (ESD) and surge. Measures should be taken to ground the device, wear anti-static clothing, and use ESD-protected storage. Direct eye exposure to the laser beam, even through lenses or optical fibers, can damage the eyes. It's advised to use safety goggles.

What is the recommended soldering temperature for the EEL M6?

The recommended soldering temperature is less than 180°C, applied within 3 seconds, and only on the leads.
