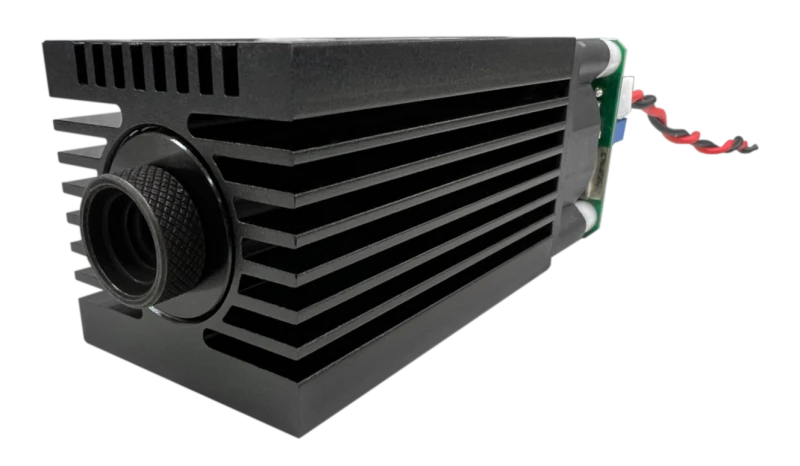

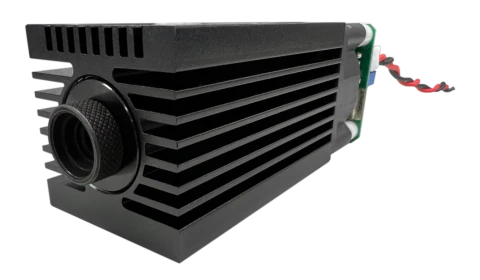

Thumbnail of Blue CW Diode Laser Module 450nm 3W – M12 EEL Package photo 1

Description

Discover the unparalleled performance of our Blue CW Diode Laser Module 450nm 3W. Renowned for its superior heat dissipation, this module is powered by an advanced APC circuit ensuring a consistently stable optical power output. With a sturdy structure crafted from a high-quality aluminum anode finish, this laser module not only boasts high stability but also offers customizable appearance colors to fit varied customer preferences.

What sets our 450nm diode laser module apart is its design, being one of LECC's most common public version sizes. It's tailored to save customers from incurring additional mold costs during the early stages of development. With our efficient manufacturing capacity, customers can swiftly transition from order placement to mass production, thereby reducing development time and accelerating market entry.

Blue CW Diode Laser Module 450nm 3W – M12 EEL Package

Visit the LECC Technology Co., Ltd. Store

Specifications

Center Wavelength: 0.45 um
Output Power: 3000 mW
CW Optical Power Range: 2 - 3 W
Operating Current: 2000 mA
Operating Voltage: 12 V
Wavelength At Peak Emission: 450 +/- 10 nm
Operating Temp. Range: -10 to 50 °C
Storage Temp. Range: -40 to 85 °C
Spot Size At 50mm @50%: <50x500 um
Driving Circuit: ACC

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Stable power output of 2 to 3 W
  • Excellent heat dissipation
  • APC circuit integration for consistent optical output
  • Customizable appearance color
  • Sturdy aluminum anode structure
  • High stability design
  • Saves on mold costs during initial development
  • Ready for mass production orders
  • Meets Class 2M specifications
  • Wavelength customization available on demand

Applications

Medical Applications:

  • Diagnostic tool illumination
  • Medical measurement location aids
  • Surgical site illumination

Augmented and Virtual Reality:

  • AR headset tracking systems
  • VR positional tracking
  • MR (Mixed Reality) device calibration

Aiming and Positioning:

  • Precision aiming devices
  • Surveying equipment illumination
  • Target designation in sports or recreational activities

Manufacturing and Production:

  • Assembly line positioning
  • Laser engraving and marking assistance
  • Quality control inspection aids

Research & Development:

  • Laboratory experiments requiring precise light sources
  • Photonics and optics research tools
  • Prototype development for new optical devices

Frequently Asked Questions

What is the power output of the Blue CW Diode Laser Module 450nm 3W – M12 EEL Package?
The power output of the Blue CW Diode Laser Module 450nm 3W – M12 EEL Package is stable and lies between 2000 to 3000mW.
How does the EEL M12 ensure stable optical power output?
The module includes an APC circuit ensuring excellent heat dissipation and consistent power output.
Can the appearance color of the EEL M12 be customized?
Yes, the appearance color of the EEL M12 can be tailored according to customer requirements.
How does the EEL M12 help in cost-saving during development?
It's one of the standard public version sizes of LECC, which eliminates the cost of molds in the initial phase of development.
What are the primary applications of the Blue CW Diode Laser Module 450nm 3W – M12 EEL Package?
The EEL M12 is primarily used in medical measurement locations, AR, VR, MR applications, and as an aiming device.
What is the wavelength at peak emission for the EEL M12?
The wavelength at peak emission for the EEL M12 is 450nm.
What precautions should be taken when handling the EEL M12 laser module?
Measures include grounding the device and circuits, wearing anti-static clothing, using wrist straps, storing in anti-static containers, and designing circuits to avoid excessive current spikes.

Got more questions? Use the inquiry form to ask the supplier directly.
