SMD Laser Diode (808nm | 200mW) - LS80K00001 (Pack of 20)
Ask a Question
-
Made by:
LECC Technology Co., Ltd.
-
Made in:
Taiwan
-
Ships in:
7 days
-
Delivers to:
United States
-
Shipping:
$95.00
-
Warranty:
-
Returns:
-
Ships from:
Taiwan
-
Sold by:
-
On FindLight:
since 2023
Description

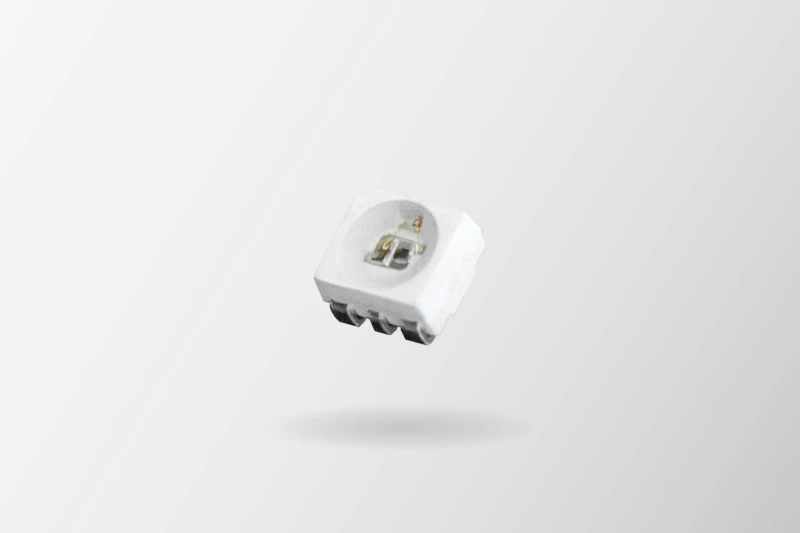

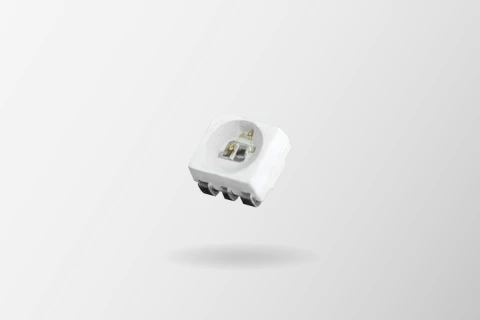

The SMD Laser Diode LS80K00001 is a compact and efficient solution for various industrial applications. With its small dimensions of just 3.4x3.3mm, this laser diode is designed to be lightweight and shorter, making it an ideal choice for space-constrained environments. The surface mount device (SMD) construction allows for seamless integration into automated production lines, significantly reducing production loss and labor hours. This ease of integration is further enhanced by the diode's robust design, which includes a built-in Zener diode for superior anti-static capability and reliable performance.
The LS80K00001 operates at a wavelength of 808nm, with a typical radiant power output of 200mW. This laser diode is engineered for high efficiency, aligning with the mainstream direction of industry research and development. Its SMD packaging not only facilitates high thermal dissipation but also ensures that the device remains stable and effective under various operating conditions. The inclusion of a Zener diode enhances its durability, making it a reliable choice for long-term use.
In manufacturing and industrial settings, the LS80K00001 stands out due to its ability to meet stringent operational requirements while maintaining a compact form factor. Its design supports easy handling and integration, ensuring that it can be incorporated into existing systems with minimal adjustments. The laser diode's construction underscores its suitability for applications where precision and reliability are paramount, making it a valuable component in cutting-edge technological solutions.
NOTE: There is a fee of $95 for the shipment of 1 to 5 packs (each pack with 20 laser diodes) to the USA.
SMD Laser Diode (808nm | 200mW) - LS80K00001 (Pack of 20)
Specifications |
|
|---|---|
| Center Wavelength: | 0.808 um |
| Output Power: | 200 mW |
| Threshold Current: | 55 mA |
| Operating Current: | 230 mA |
| Operating Voltage: | 1.8 V |
| Slope Efficiency: | 1.1 mW/mA |
| Beam Divergence: | 6.5 deg. |
| (FWHM): | 28 deg. |
Features
- Package: Ag Plated 6 pad design package with silicone resin
- Dimension: 3.4 mmx3.3 mmx1.9 mm
- Peak wavelength at 25°C: 650nm (typ.)
- Standard optical power output: 3.5mW
- Single mode lasing
Applications
- Photodynamic Therapy (PDT)
- Medical Imaging
- Surgical Procedures
- Dental Procedures
- Fiber Optic Transmissions
- Data Communication
- Laser Range Finders
- Laser Pointers for Presentations
- Gas Sensing
- Environmental Monitoring
- Lab Studies and Experiments
- Development of New Laser-Based Technologies
Frequently Asked Questions
The laser diode is distinctively compact, measuring just 3.5x2.8mm. It's both lighter and shorter in product application.
The surface mount element construction (SMD) welding makes it easier to integrate with automatic production, reducing production losses and labor hours.
The built-in Zener diode provides enhanced anti-static capability ensuring reliable operation and heightened efficiency.
This laser diode is specifically designed for medical applications.
It has dimensions of 3.4 mm x 3.3 mm x 1.9 mm with a tolerance of 0.1 mm.
Users should ground the device and circuits, wear anti-static clothing, and use power supplies that don't exceed the diode's optical power output.
Soldering should be done at temperatures less than 180°C within 3 seconds, and it's advised to use a heat sink on the package to dissipate heat.
