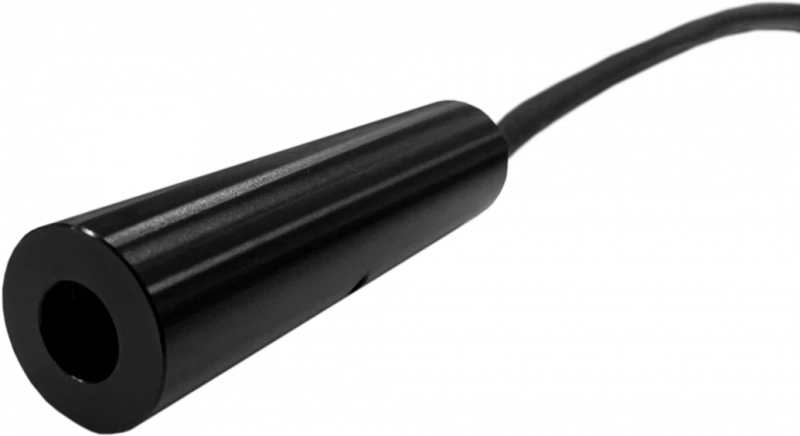

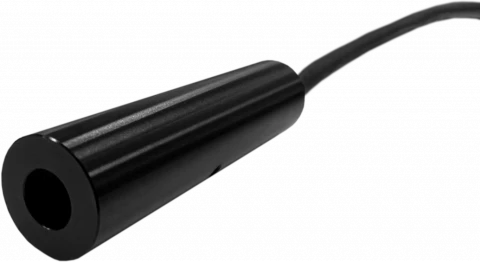

Thumbnail of M12 EEL 658nm Laser Module 25mW - AD65280002 photo 1

Description

Discover the unparalleled performance of our 658nm diode laser module, EEL M12. Renowned for its superior heat dissipation, this module is powered by an advanced APC circuit ensuring a consistently stable optical power output. With a sturdy structure crafted from a high-quality aluminum anode finish, this laser module not only boasts high stability but also offers customizable appearance colors to fit varied customer preferences.

What sets our 658nm diode laser module apart is its design, being one of LECC's most common public version sizes. It's tailored to save customers from incurring additional mold costs during the early stages of development. With our efficient manufacturing capacity, customers can swiftly transition from order placement to mass production, thereby reducing development time and accelerating market entry.

M12 EEL 658nm Laser Module 25mW - AD65280002

Visit the LECC Technology Co., Ltd. Store

Specifications

Center Wavelength: 0.658 um
Output Power: 25 mW
Wavelength At Peak Emission: 658 +/- 7 nm
Spot Size At 100mm @13.5%: ≤25 um
Spot Size At 100mm @50%: ≤15 um
Operating Voltage: 5 V
Driving Circuit: APC / PWM
Operating Current: 140 mA
Operating Temp. Range: -10 to 50 °C
Storage Temp. Range: -20 to 70 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Stable power output of 1-2mW
  • Excellent heat dissipation
  • APC circuit integration for consistent optical output
  • Customizable appearance color
  • Sturdy aluminum anode structure
  • High stability design
  • Saves on mold costs during initial development
  • Ready for mass production orders
  • Meets Class 2M specifications
  • Wavelength customization available on demand

Applications

Medical Applications:

  • Diagnostic tool illumination
  • Medical measurement location aids
  • Surgical site illumination

Augmented and Virtual Reality:

  • AR headset tracking systems
  • VR positional tracking
  • MR (Mixed Reality) device calibration

Aiming and Positioning:

  • Precision aiming devices
  • Surveying equipment illumination
  • Target designation in sports or recreational activities

Manufacturing and Production:

  • Assembly line positioning
  • Laser engraving and marking assistance
  • Quality control inspection aids

Research & Development:

  • Laboratory experiments requiring precise light sources
  • Photonics and optics research tools
  • Prototype development for new optical devices

Frequently Asked Questions

What is the EEL M12 AD65280002?
The EEL M12 AD65280002 is a laser diode with a wavelength of 658nm and an optical power output of 25mW, designed for applications such as medical measurement, AR/VR/MR, and aiming devices.
What are the key features of the EEL M12 AD65280002 658nm diode laser?
The key features include stable power output, compliance with Class 2M specifications, customizable wavelengths, excellent heat dissipation, and a sturdy aluminum anode structure.
What is the operating temperature range for the EEL M12 AD65280002 658nm diode laser?
The operating temperature range for the EEL M12 AD65280002 is from -10°C to 50°C.
What precautions should be taken to prevent damage to the laser diode?
Precautions include grounding the device and circuits, wearing anti-static clothing and wrist straps, using anti-static containers, and designing circuits to avoid excessive current spikes.
What is the recommended soldering temperature for the EEL M12 AD65280002?
The recommended soldering temperature is less than 180°C for a duration of up to 3 seconds, focusing on the leads only.
What safety measures should be taken when operating the laser diode?
Safety measures include avoiding direct eye exposure to the laser beam, using safety goggles, and ensuring the laser is not viewed through lenses or optical fibers.
Can the appearance color of the EEL M12 AD65280002 red diode laser be customized?
Yes, the appearance color of the EEL M12 AD65280002 can be customized according to customer needs.

Got more questions? Use the inquiry form to ask the supplier directly.
