Description

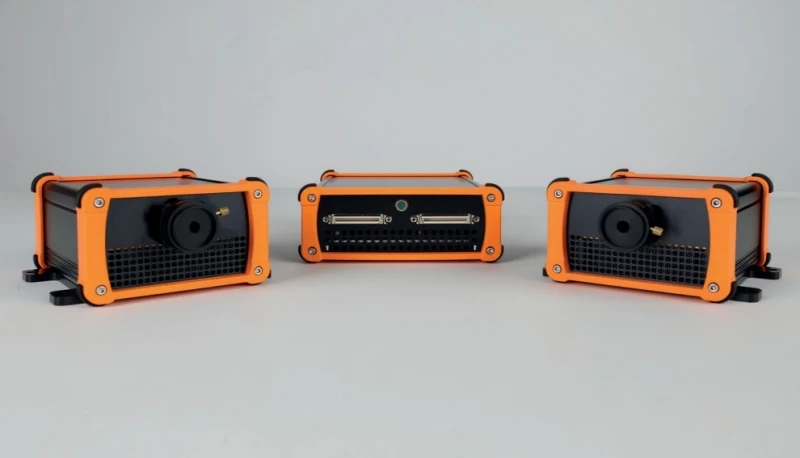

The PowerMir 4.0um High-Power Pulsed Quantum Cascade Laser System is a versatile and user-friendly air-cooled benchtop system designed for lab development purposes. It offers plug-and-play functionality, allowing customers to easily set up and operate the system. This quantum cascade laser (QCL) system is equipped with user-friendly Windows software that controls both temperature and current, ensuring optimal performance and preventing laser damage.
With software modulation or external TTL signal control, users can easily adjust the power output according to their requirements. Additionally, the QCL's driver can be connected to one or two laser heads, accommodating different projects regardless of wavelength or power. CE-marked and featuring an interlock, this system prioritizes safety and compliance.
PowerMir 4.0um High Power Pulsed Quantum Turnkey System (450mW Standard Beam)
Specifications
| Output Power (avg): | 0.45 W |
|---|---|
| Wavelength: | 4 um |
| Pulse Duration: | 300 – 300 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
| Physical Interface: | USB interface for PC connexion (USB cable supplied); TTL trig IN connector for TTL external signal; TTL trig OUT connector for synchronization |
| Software: | A user friendly Windows software is supplied |
| Input Power: | 24V DC (an AC/DC power transformer is supplied) |
| Dimensions: | Laser head: 20cm x 15cm x 6cm | Driver: 25cm*15cm*6cm |
| Weight: | 925 g |
| Operating Temperature: | +10 to +30 °C |
| Laser Head Cooling: | Air cooled |
| Pulse Frequency: | 500 kHz |
| Beam Quality: | TM00 Gaussian beam, M²<1.5 |
| Output Beam Dimension For The Standard Beam Option (window Output): | Typically 3 mm (vertical) x 2 mm (horizontal) |
| Polarization: | Linear vertically polarized (>98%) |
| Reliability: | > 3500 h |
| Mode Of Operation: | Quasi-CW, high duty cycled pulsed |
Download Data Sheet
Features
- Air-cooled plug-and-play benchtop system
- User-friendly Windows software for temperature and current control
- Power modulation via software or external TTL signal
- Compatible with one or two laser heads for versatility
- CE-marked with interlock for safety and compliance
Applications
- Lab development
- Research and development projects
- Spectroscopy
- Sensing applications
- Industrial processing
Frequently Asked Questions
What is included in the PowerMir 4.0um QCL laser system package?
The package includes the air-cooled plug-and-play benchtop system, user-friendly Windows software, and necessary accessories for operation.
How can I modulate the power output of this quantum cascade laser system?
The power output can be easily modulated using the software provided or through an external TTL signal.
Is the QCL laser system compatible with different projects?
Yes, the system's driver can be connected to one or two laser heads, providing versatility for various projects regardless of wavelength or power requirements.
Is the PowerMir 4.0um quantum cascade laser system compliant with safety standards?
Yes, the system is CE-marked and equipped with an interlock for safety compliance, ensuring safe operation in laboratory environments.
What are the main applications of this laser system?
The PowerMir 4.0μm laser system is suitable for a wide range of applications including lab development, research projects, spectroscopy, sensing applications, and industrial processing.
