Description

The PowerMir 4.0um High-Power Pulsed Quantum Cascade Laser is an advanced mid-infrared laser solution engineered for demanding applications. Encased in a robust High Heat Load (HHL) package, this quantum cascade laser (QCL) boasts built-in thermoelectric cooling and collimated optics to ensure precise and stable performance even in harsh environments. With a hermetically sealed design and nitrogen gas fill, it offers exceptional reliability and longevity.

The integrated thermoelectric cooler (TEC) allows for efficient temperature control, while the built-in collimated lens enhances beam quality for accurate targeting and measurement. Operating at peak currents ranging from 1 to 4 Amps, and with a wall-plug efficiency of 5 to 10%, this QCL delivers consistent and powerful performance. Whether used for gas sensing, environmental monitoring, or industrial processes, the PowerMir 4.0um laser offers unmatched versatility and reliability in mid-infrared laser technology.

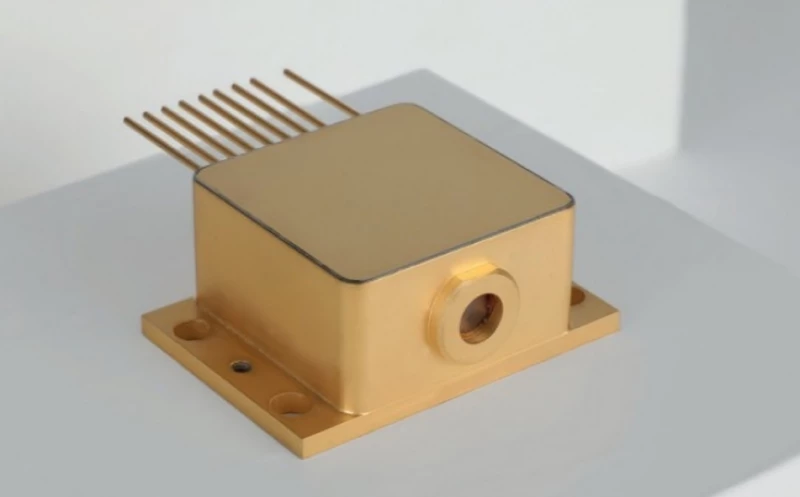

PW4000450HSNA: PowerMir 4.0um High Power Pulsed Quantum Cascade Laser 450mW HHL Package Standard Beam

Specifications

Output Power (avg): 0.45 W
Wavelength: 4 um
Pulse Duration: 300 – 300 ns
Tuning Range Around Center Wavelength: Not Applicable
Packaging: Hermetically sealed HHL package with nitrogen gas fill
Thermoelectric Cooler (TEC): Imax = 5.2A, Vmax = 17.5V
Collimated Lens: Built-in
Wall-plug Efficiency: 5 to 10 %
Temperature Sensor: Built-in thermistor
Laser Peak Current: Typically 1 - 4 A
Operational Temperature Range: 20 to +30 °C
Laser Voltage: 10-20 V
Weight: 120 g

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Key Features of the 4 µm QCW QCL High-Power Mid-Infrared Laser System

  • High-power 4 µm quantum cascade laser: Emits in the mid-infrared spectral region around 4 µm ± 0.1 µm, ideal for MIR spectroscopy, gas sensing, chemical detection, and industrial photonics applications.
  • Quasi-CW high duty-cycle pulsed operation: Designed for QCW operation, delivering high average optical power while improving wall-plug efficiency and reducing thermal dissipation compared with conventional pulsed MIR laser sources.
  • Multiple optical power configurations: Available in versions delivering >1 W, <500 mW, or <100 mW average optical power, allowing users to select the right performance level for research, OEM integration, or export-sensitive applications.
  • ITAR-free MIR laser technology: Manufactured in France using proprietary quantum cascade laser technology, this ITAR-free QCL system simplifies international procurement and deployment for qualified industrial, scientific, and OEM users.
  • Export-control-friendly power options: The <500 mW version is designed to remain below typical dual-use export-control thresholds, supporting easier worldwide distribution for many applications.
  • High pulse repetition frequency: Supports pulse frequencies greater than 500 kHz, making it suitable for fast acquisition systems, high-speed spectroscopy, and synchronized photonic instrumentation.
  • Fabry-Perot QCL architecture: Based on a high-performance Fabry-Perot quantum cascade laser design, providing broad emission around the 3.85 µm to 4.15 µm spectral band.
  • Optimized for the 3.85 µm to 4.15 µm MIR band: Maximum average optical power is available across the key mid-infrared wavelength range centered near 4 µm.
  • Excellent beam quality: Produces a TM00 Gaussian beam, supporting efficient focusing, beam delivery, and optical system integration.
  • Low-divergence standard beam: Standard beam option provides typical far-field divergence of <6 mrad horizontal and <4 mrad vertical, enabling easier coupling into free-space optical setups.
  • Optional circular beam output: Available with a circular beam option to reduce customer-side beam-shaping requirements and simplify integration into optical benches, sensors, and OEM instruments.
  • Compact beam dimensions: Standard window output beam is typically 3 mm vertical × 2 mm horizontal, while the circular beam option provides a typical output beam diameter of <3 mm.
  • Vertically polarized output: Delivers linear vertical polarization greater than 98%, supporting polarization-sensitive spectroscopy and optical system designs.
  • Reliable MIR laser platform: Designed for long operational lifetime with reported reliability of >3500 hours, supporting demanding laboratory and industrial use.
  • High wall-plug efficiency: QCW pulsed operation and proprietary QCL chip technology provide improved electrical-to-optical conversion efficiency for high-power MIR laser operation.
  • Reduced thermal load: Quasi-CW operation helps minimize thermal dissipation, improving stability and simplifying thermal management in integrated systems.
  • Multiple integration formats: Available as a plug-and-play benchtop turnkey laser system, OEM driver plus laser module, or HHL-packaged QCL, supporting both laboratory use and embedded product development.
  • Turnkey benchtop option: The complete system configuration provides an easy-to-use MIR laser source for spectroscopy labs, R&D teams, and application development environments.
  • OEM-ready laser module option: Driver and laser module configurations are suitable for integration into analytical instruments, gas analyzers, process-monitoring tools, and custom photonic platforms.
  • HHL-packaged laser option: Available as an HHL-packaged QCL for customers requiring compact packaging and direct integration into existing laser driver and thermal-control architectures.
  • Temperature-referenced performance: Output power specifications are defined with the HHL-package base plate regulated at +20°C, enabling repeatable and comparable performance conditions.
  • Reproducible manufacturing for series producti

Applications

Applications for 4 µm QCW Quantum Cascade Laser Systems

  • Mid-Infrared Spectroscopy: High-power 4 µm QCW QCL source for MIR absorption spectroscopy, broadband Fabry-Perot QCL spectroscopy, laser-based chemical analysis, and molecular fingerprinting in the 3.85 µm to 4.15 µm spectral region.
  • Gas Sensing and Trace Gas Detection: Suitable for high-sensitivity detection of gases and vapors with absorption features near 4 µm, including industrial process gases, combustion-related species, environmental pollutants, and specialty chemical vapors.
  • Photoacoustic Spectroscopy: Powerful pulsed mid-infrared laser source for photoacoustic gas sensing, resonant photoacoustic detection, and compact trace-gas analyzers requiring high optical power and efficient modulation.
  • Stand-Off Chemical Detection: 4 µm high-power MIR laser for remote sensing, stand-off detection, and identification of chemical plumes, hazardous substances, and vapor-phase compounds in industrial, environmental, and security applications.
  • Free-Space Optical Communication: Mid-infrared QCW laser source for 3–5 µm free-space optical communication research, atmospheric transmission studies, and high-power MIR transmitter development.
  • Infrared Countermeasure and Test Systems: ITAR-free mid-infrared laser source for laboratory testing, sensor evaluation, target simulation, seeker characterization, and development of infrared countermeasure test benches.
  • Active Infrared Illumination: High-brightness 4 µm laser illumination for active MIR imaging, thermal camera testing, scene projection, target illumination, and infrared system calibration.
  • Laser-Based Metrology: Stable mid-infrared QCL source for optical metrology, beam propagation studies, wavelength-dependent material characterization, and MIR optical component testing.
  • Material Characterization: Useful for studying the mid-infrared optical response of polymers, coatings, semiconductors, thin films, ceramics, and specialty materials in the 4 µm wavelength range.
  • Industrial Process Monitoring: High-power MIR laser for real-time monitoring of chemical processes, exhaust streams, thermal processes, reactor emissions, and manufacturing environments where 4 µm absorption spectroscopy is required.
  • Combustion Diagnostics: Suitable for pulsed MIR diagnostics in flames, engines, turbines, exhaust flows, and high-temperature gas environments, including time-resolved absorption and emission-related studies.
  • Environmental Monitoring: Mid-infrared laser source for atmospheric sensing, pollution monitoring, greenhouse gas research, leak detection studies, and field-deployable optical sensing instruments.
  • Defense and Security Research: ITAR-free 4 µm QCL platform for MIR sensing research, hazardous chemical detection, optical threat simulation, infrared signature analysis, and security screening instrumentation.
  • Biomedical and Breath Analysis Research: Mid-infrared source for non-invasive breath analysis research, biomarker spectroscopy, tissue optics studies, and laboratory development of MIR diagnostic tools.
  • Optical Component Testing: Ideal for testing MIR lenses, windows, filters, coatings, fibers, detectors, beam expanders, and other optical components designed for operation near 4 µm.
  • MIR Detector Characterization: High-power pulsed 4 µm laser source for responsivity testing, saturation studies, modulation response, linearity measurements, and calibration of mid-infrared detectors and focal plane arrays.
  • Thermal Imaging System Calibration: Suitable for evaluating and calibrating mid-wave infrared cameras, MWIR imagers, infrared sensors, and thermal imaging systems operating in the 3–5 µm band.
  • Laboratory Research and Development: Flexible 4 µm QCW quantum cascade laser platform for universities, national laboratories, photonics companies, and OEM R&D teams developing MIR instruments and systems.
  • OEM Integration: Available for integration into compact MIR analyzers, industrial sensors, spectroscopy platforms, defense test equipment, process control systems, and high-power mid-infrared laser modules.
  • Beam Delivery and Optical Bench Development: Circular beam option and low-divergence output make the laser suitable for optical alignment, beam shaping, MIR beam delivery experiments, and compact optical system design.

Frequently Asked Questions

What is the mirSense PowerMir 4 µm QCW QCL laser system?
The PowerMir 4 µm QCW QCL is an ITAR-free mid-infrared quantum cascade laser system manufactured in France by mirSense. It is a high-power pulsed Fabry-Perot QCL designed to emit around 4 µm, with a specified central wavelength of 4 µm ± 0.1 µm across the 3.85 µm to 4.15 µm spectral band. It is available as a plug-and-play benchtop turnkey system, an OEM driver plus laser module, or an HHL-packaged laser.
What output power is available from the 4 µm quasi-CW quantum cascade laser?
The 4 µm QCW QCL is offered in multiple average output power classes, including greater than 1 W, under 500 mW, and under 100 mW. The under-500 mW version typically provides about 450 mW to 500 mW average optical power at a regulated HHL baseplate temperature of +20 °C, while the under-100 mW version is typically around 90 mW to 100 mW. Output power is specified as the sum across the full spectral bandwidth.
What does QCW operation mean for this mid-infrared QCL?
QCW, or quasi-continuous-wave operation, means the laser operates in a high-duty-cycle pulsed mode rather than true continuous wave. This operating mode helps improve wall-plug efficiency and reduces thermal dissipation compared with some continuous high-power operation approaches. The PowerMir 4 µm QCL supports pulse frequencies above 500 kHz, making it suitable for high-speed mid-IR applications that require strong average power.
Is the 4 µm PowerMir QCL ITAR free and suitable for export-sensitive applications?
Yes. The datasheet states that mirSense PowerMir 4 µm QCL technology is ITAR free. In addition, the version specified below 500 mW is noted as not being considered a dual-use product, meaning no export control applies according to the datasheet. Customers should still confirm final export classification for their destination country, end use, and system configuration.
What beam quality, divergence, and polarization does the 4 µm QCL provide?
The laser provides a TM00 Gaussian far-field beam with linear vertical polarization greater than 98%. For the standard beam option, the full-angle far-field divergence is less than 6 mrad horizontally and less than 4 mrad vertically, with a slightly elliptical beam shape. The typical standard output beam size at the window is about 3 mm vertical by 2 mm horizontal.
Is a circular beam option available for the 4 µm quantum cascade laser?
Yes. A circular beam option is available, with a typical output beam dimension below 3 mm at the window. Unlike external beam-shaping optics, the circular beam option is implemented through a specially manufactured mirSense chip that emits a circular beam directly, making it a more robust solution for OEM integration and reducing the customer’s need for additional beam-shaping optics.
What applications are suitable for a high-power 4 µm mid-IR QCL laser?
A high-power 4 µm mid-infrared QCL is commonly used in applications such as infrared spectroscopy, gas sensing, chemical detection, defense and security research, standoff detection, free-space optical testing, and laboratory mid-IR source development. The combination of 4 µm emission, high average pulsed power, >500 kHz pulse frequency, Gaussian beam quality, and OEM or turnkey packaging makes it suitable for both research systems and series-production instruments.

Got more questions? Use the inquiry form to ask the supplier directly.
