Description

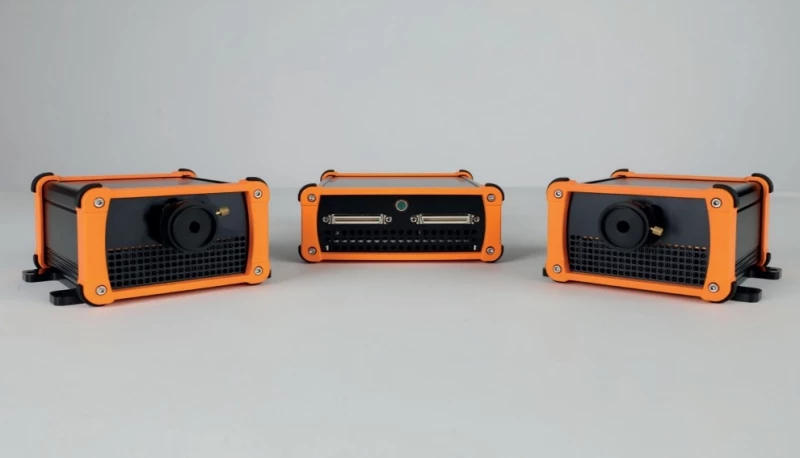

The PowerMir 4.0um High-Power Pulsed Quantum Cascade Laser System is a versatile and user-friendly air-cooled benchtop system designed for lab development purposes. It offers plug-and-play functionality, allowing customers to easily set up and operate the system. This quantum cascade laser (QCL) system is equipped with user-friendly Windows software that controls both temperature and current, ensuring optimal performance and preventing laser damage.

With software modulation or external TTL signal control, users can easily adjust the power output according to their requirements. Additionally, the system's driver can be connected to one or two laser heads, accommodating different projects regardless of wavelength or power. CE-marked and featuring an interlock, this system prioritizes safety and compliance.

PW4000090HSTK1A: PowerMir 4.0um High Power Pulsed Quantum Turnkey System 100mW Standard Beam

Specifications

Output Power (avg): 0.1 W
Wavelength: 4 um
Pulse Duration: 1 – 1 ns
Tuning Range Around Center Wavelength: Not Applicable
Physical Interface: USB interface for PC connection (USB cable supplied); TTL trig IN connector for TTL external signal; TTL trig OUT connector for synchronization
Software: A user friendly Windows software is supplied
Input Power: 24V DC (an AC/DC power transformer is supplied)
Dimensions: Laser head: 20cm x 15cm x 6cm | Driver: 25cm*15cm*6cm
Weight: 925 g
Operating Temperature: +10 to +30 °C
Laser Head Cooling: Air cooled
Pulse Frequency: 500 kHz
Beam Quality: TM00 Gaussian beam, M²<1.5
Output Beam Dimension For The Standard Beam Option (window Output): Typically 3 mm (vertical) x 2 mm (horizontal)
Polarization: Linear vertically polarized (>98%)
Reliability: > 3500 h
Mode Of Operation: Quasi-CW, high duty cycled pulsed

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 4 µm mid-infrared quantum cascade laser system: High-power pulsed Fabry-Pérot QCL designed for MIR emission around 4 µm ± 0.1 µm, covering the 3.85 µm to 4.15 µm spectral band.
  • High average optical power options: Available in configurations delivering >1 W, <500 mW, or <100 mW average optical output power, enabling flexible selection for research, OEM integration, and export-sensitive applications.
  • Quasi-CW operation: Operates in QCW high-duty-cycle pulsed mode for improved wall-plug efficiency and reduced thermal dissipation compared with conventional pulsed MIR laser operation.
  • High pulse repetition frequency: Supports pulse frequencies of >500 kHz, making it suitable for high-speed mid-infrared spectroscopy, gas sensing, and industrial laser applications.
  • ITAR-free MIR laser technology: Manufactured in France with ITAR-free technology, simplifying procurement and international deployment for qualified customers.
  • Export-control-friendly low-power versions: The <500 mW version is designed for applications requiring reduced export-control constraints, while maintaining strong MIR QCL performance.
  • Excellent beam quality: Delivers a TM00 Gaussian beam with a slightly elliptical standard beam profile for efficient optical coupling and system integration.
  • Low-divergence standard beam: Standard beam divergence is typically <6 mrad horizontal and <4 mrad vertical full angle in the far field.
  • Circular beam option: Optional circular-beam chip design provides a robust near-circular output beam without requiring external beam-shaping optics, reducing optical alignment complexity.
  • Compact output beam dimensions: Standard window-output beam is typically 3 mm vertical x 2 mm horizontal; circular beam option provides a typical beam diameter of <3 mm.
  • Highly polarized output: Provides >98% vertically linear polarization, supporting polarization-sensitive MIR optical setups and spectroscopy systems.
  • Multiple system configurations: Available as a plug-and-play benchtop turnkey system, OEM driver plus laser module, or HHL-packaged QCL for integration into custom instruments.
  • OEM-ready design: Reproducible manufacturing specifications support series production, instrument integration, and consistent performance across multiple units.
  • High wall-plug efficiency: Proprietary high-performance QCL technology is optimized for strong optical output with reduced heat load, helping simplify thermal management.
  • Reliable operation: Designed for dependable MIR laser performance with reliability specified at >3500 hours.
  • Temperature-regulated performance: Output power specifications are provided with the HHL package baseplate regulated at +20°C, supporting stable and repeatable operation.
  • Ideal for MIR spectroscopy and sensing: Well suited for mid-infrared spectroscopy, gas detection, environmental monitoring, industrial process control, defense-free photonics platforms, and OEM MIR analytical instruments.
  • High-power 4 µm QCL platform: Combines high average power, QCW operation, ITAR-free availability, and configurable packaging for demanding mid-infrared laser applications.

Applications

Applications for 4 µm QCW QCL High-Power Mid-Infrared Quantum Cascade Laser Systems

  • Mid-infrared laser spectroscopy: High-power 4 µm QCW QCL source for molecular absorption spectroscopy, tunable laser absorption spectroscopy, and broadband Fabry-Perot QCL spectroscopy in the 3.85–4.15 µm spectral region.
  • Trace gas sensing and analysis: Suitable for detection and measurement of gases with absorption features near 4 µm, including application-specific monitoring of greenhouse gases, industrial gases, combustion species, and atmospheric pollutants.
  • Photoacoustic spectroscopy: High average power and pulsed quasi-CW operation make the laser well suited for photoacoustic gas detection, quartz-enhanced photoacoustic spectroscopy, and compact high-sensitivity gas analyzers.
  • Environmental monitoring: Used in mid-IR sensing systems for air quality monitoring, emissions analysis, greenhouse gas studies, atmospheric chemistry research, and pollution source identification.
  • Industrial process control: Ideal for real-time inline or extractive gas monitoring in chemical processing, petrochemical production, power generation, waste treatment, and manufacturing environments.
  • Combustion diagnostics: Supports high-speed measurement of gas species, temperature, and reaction dynamics in engines, turbines, burners, flames, and propulsion research platforms.
  • Leak detection: Can be integrated into mid-infrared leak detection systems for industrial facilities, gas handling lines, chemical plants, refineries, and safety monitoring applications.
  • Stand-off chemical detection: High-power MIR output is applicable to remote sensing and stand-off detection systems for identifying chemical signatures over distance in the 3–5 µm atmospheric window.
  • Defense and security sensing: ITAR-free mid-infrared QCL technology can support security screening, hazardous chemical detection, CBRN sensing research, infrared signature analysis, and field-deployable analytical instruments.
  • Mid-IR LIDAR and DIAL systems: Suitable for differential absorption LIDAR, range-resolved gas sensing, atmospheric propagation studies, and active remote sensing in the mid-wave infrared band.
  • Active infrared imaging: Used as a high-brightness illumination source for active MWIR imaging, hyperspectral imaging, target illumination, and contrast-enhanced inspection systems.
  • Hyperspectral and multispectral sensing: Enables development of mid-infrared hyperspectral imaging platforms for chemical mapping, material identification, surface contamination detection, and remote spectral analysis.
  • Infrared detector and camera testing: Useful for testing, calibration, and characterization of MWIR detectors, InSb cameras, MCT/HgCdTe sensors, thermal imaging modules, and infrared focal plane arrays.
  • FTIR and spectrometer source replacement: Provides a compact high-brightness alternative or complementary source for mid-IR spectrometers, FTIR systems, monochromator-based setups, and laboratory spectroscopy benches.
  • Optical bench and OEM instrument integration: Available as turnkey, OEM driver plus laser module, or HHL-packaged laser for integration into analyzers, embedded sensors, laboratory instruments, and production systems.
  • Biomedical and breath analysis research: Applicable to non-invasive breath diagnostics, biomarker detection research, medical gas monitoring, and mid-infrared analysis of biological samples where 4 µm absorption features are relevant.
  • Pharmaceutical and chemical analysis: Supports mid-IR identification and monitoring of chemical compounds, process gases, residual solvents, reaction products, and quality-control parameters in analytical instrumentation.
  • Materials characterization: Used for studying polymers, coatings, thin films, optical materials, semiconductors, and specialty materials with absorption or transmission properties in the 4 µm mid-infrared region.
  • Semiconductor and plasma process monitoring: Can be incorporated into process monitoring tools for CVD, etching, chamber diagnostics, exhaust analysis, and gas-phase metrology in advanced manufacturing.
  • Nonlinear optics and mid-IR photonics research: High-power pulsed 4 µm emission is valuable for testing nonlinear crystals, waveguides, fibers, MIR components, and frequency-conversion experiments.
  • Free-space optical communication research: Applicable to experimental mid-infrared free-space optical links, atmospheric transmission studies, and communica

Frequently Asked Questions

What is the mirSense PowerMir 4µm QCW QCL laser system used for?
The mirSense PowerMir 4µm QCW QCL is a high-power mid-infrared quantum cascade laser designed for applications around 4 microns, including gas sensing, infrared spectroscopy, defense and security research, countermeasure test systems, industrial process monitoring, and scientific R&D. Its high average optical power, quasi-CW pulsed operation, and ITAR-free French manufacturing make it suitable for both laboratory and OEM integration.
What wavelength does the 4µm QCW QCL emit?
This laser emits in the mid-infrared around 4 µm, with a specified central wavelength of 4 µm ± 0.1 µm. The maximum average optical power is specified across the 3.85 µm to 4.15 µm spectral band.
How much optical power is available from the PowerMir 4µm QCW quantum cascade laser?
The PowerMir 4µm QCW QCL is available in several power classes, including versions with more than 1 W average optical power, under 500 mW, or under 100 mW. According to the datasheet, the under-500 mW option typically provides about 450–500 mW when the HHL package base plate is regulated at +20 °C, while the under-100 mW option is roughly 90–100 mW.
What does QCW operation mean for a 4µm quantum cascade laser?
QCW stands for quasi-continuous-wave operation. In this product, it means the QCL operates in a high-duty-cycle pulsed mode rather than true continuous-wave mode. This enables high average power while improving wall-plug efficiency and reducing thermal dissipation compared with less efficient operating conditions. The datasheet specifies pulse frequencies greater than 500 kHz.
Is the mirSense 4µm QCW QCL ITAR free?
Yes. The datasheet identifies the PowerMir 4µm QCW QCL product line as ITAR free and manufactured in France. This can simplify procurement and export considerations compared with some ITAR-controlled mid-infrared laser systems. The datasheet also notes that versions under 500 mW are not considered dual-use products, so no export control applies to those lower-power configurations.
What beam quality and divergence does the 4µm QCW QCL provide?
The laser provides a TM00 Gaussian beam with linear vertical polarization greater than 98%. With the standard beam option, far-field full-angle divergence is specified as less than 6 mrad horizontally and less than 4 mrad vertically, with a slightly elliptical beam. A circular beam option is also available, typically producing an output beam below 3 mm and reducing the need for external beam-shaping optics.
What system configurations are available for the PowerMir 4µm QCW QCL?
The PowerMir 4µm QCW QCL can be purchased in multiple configurations, including a plug-and-play benchtop turnkey laser system, an OEM driver plus laser module, or an HHL-packaged laser. This allows users to choose between easy laboratory operation and compact integration into OEM instruments or custom mid-infrared platforms.

Got more questions? Use the inquiry form to ask the supplier directly.
