Description

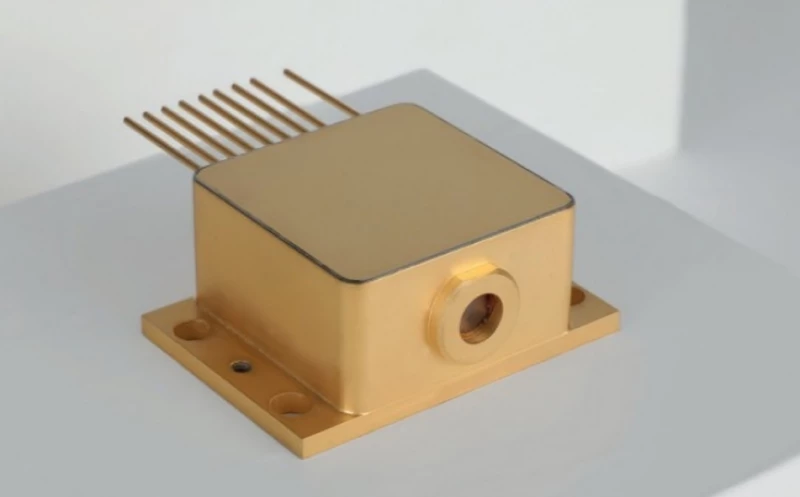

The PowerMir 4.0um High-Power Pulsed Quantum Cascade Laser is an advanced mid-infrared laser solution engineered for demanding applications. Encased in a robust High Heat Load (HHL) package, this quantum cascade laser (QCL) boasts built-in thermoelectric cooling and collimated optics to ensure precise and stable performance even in harsh environments. With a hermetically sealed design and nitrogen gas fill, it offers exceptional reliability and longevity.

The integrated thermoelectric cooler (TEC) allows for efficient temperature control, while the built-in collimated lens enhances beam quality for accurate targeting and measurement. Operating at peak currents ranging from 1 to 4 Amps, and with a wall-plug efficiency of 5 to 10%, this QCL delivers consistent and powerful performance. Whether used for gas sensing, environmental monitoring, or industrial processes, the PowerMir 4.0um laser offers unmatched versatility and reliability in mid-infrared laser technology.

PW4000450HCNA: PowerMir 4.0um High Power Pulsed Quantum Cascade Laser 450mW HHL Package Circular Beam

Specifications

Output Power (avg): 0.45 W
Wavelength: 4 um
Pulse Duration: 300 – 300 ns
Tuning Range Around Center Wavelength: Not Applicable
Packaging: Hermetically sealed HHL package with nitrogen gas fill
Thermoelectric Cooler (TEC): Imax = 5.2A, Vmax = 17.5V
Collimated Lens: Built-in
Wall-plug Efficiency: 5 to 10 %
Temperature Sensor: Built-in thermistor
Laser Peak Current: Typically 1 - 4 A
Operational Temperature Range: -20 to +30 °C
Laser Voltage: 10-20 V
Weight: 120 g

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-power 4 µm QCW quantum cascade laser system designed for demanding mid-infrared applications, emitting in the 3.85 µm to 4.15 µm spectral range with a central wavelength of 4 µm ± 0.1 µm.
  • ITAR-free MIR laser technology proudly manufactured in France, offering simplified international procurement compared with controlled high-power infrared laser sources.
  • Quasi-CW pulsed operation provides high duty-cycle performance with improved wall-plug efficiency and reduced thermal dissipation versus conventional pulsed MIR laser operation.
  • Maximum average optical power options available in multiple configurations, including >1 W, <500 mW, and <100 mW output classes to support both high-power research and export-friendly OEM integration.
  • High pulse repetition frequency with operation above 500 kHz, making the laser suitable for fast mid-infrared spectroscopy, sensing, and industrial measurement systems.
  • Fabry-Perot QCL architecture based on proprietary high-performance mirSense technology for robust mid-IR emission around 4 microns.
  • TM00 Gaussian beam quality supports efficient optical coupling, beam delivery, and integration into precision MIR optical systems.
  • Low-divergence standard beam with full-angle far-field divergence of <6 mrad horizontal and <4 mrad vertical, with a slightly elliptical beam profile.
  • Optional circular beam output reduces the need for external beam-shaping optics and simplifies integration into spectroscopy, sensing, and optical test setups.
  • Typical standard beam size at window output is approximately 3 mm vertical × 2 mm horizontal, enabling straightforward alignment into free-space MIR systems.
  • Typical circular beam size at window output is <3 mm, offering a more symmetric beam for easier optical system design.
  • Vertically linear polarized output with polarization purity greater than 98%, ideal for polarization-sensitive MIR spectroscopy and optical experiments.
  • High reliability with demonstrated operating lifetime greater than 3,500 hours, supporting long-term use in laboratory, industrial, and OEM environments.
  • Multiple product configurations available, including plug-and-play benchtop turnkey systems, OEM driver plus laser modules, and standalone HHL-packaged QCL lasers.
  • Reproducible manufacturing specifications support series production, repeatable performance, and easier qualification for OEM mid-infrared laser platforms.
  • Thermally managed HHL package option enables stable performance when the laser base plate temperature is regulated, typically at +20°C.
  • Export-friendly lower-power options are available, including the <500 mW version, specified to fall below dual-use power thresholds according to the product datasheet.
  • Optimized for mid-infrared spectroscopy and sensing, including gas analysis, environmental monitoring, industrial process control, defense-adjacent sensing, laboratory research, and OEM MIR instrumentation.
  • Compact MIR laser integration path with choices ranging from complete turnkey systems to embeddable OEM modules, reducing development time for 4 µm quantum cascade laser applications.
  • Competitive high-power MIR QCL performance for users seeking an ITAR-free alternative to conventional mid-infrared quantum cascade laser sources listed in photonics marketplaces and supplier catalogs.

Applications

  • Mid-Infrared Gas Sensing and Molecular Spectroscopy: High-power 4 µm QCW QCL source for MIR absorption spectroscopy, laser spectroscopy, and trace gas analysis in the 3.85 µm to 4.15 µm spectral region.
  • Photoacoustic Spectroscopy: Ideal laser source for photoacoustic gas detection systems requiring high peak power, high repetition rate pulsed operation, and efficient mid-infrared excitation.
  • Environmental Monitoring: Suitable for monitoring atmospheric gases, industrial emissions, greenhouse gas-related species, and air quality using mid-IR molecular fingerprint absorption bands.
  • Industrial Process Control: Enables real-time optical sensing in chemical plants, petrochemical processing, combustion systems, semiconductor manufacturing, and other process environments where MIR laser absorption provides selective molecular detection.
  • Stand-Off Chemical Detection: High average power and quasi-CW pulsed operation make this 4 µm quantum cascade laser system suitable for remote detection of chemical vapors, hazardous substances, and industrial leaks.
  • Open-Path Gas Monitoring: Can be integrated into open-path mid-infrared sensing systems for perimeter monitoring, leak detection, pipeline safety, and long-path atmospheric measurements.
  • Mid-IR LIDAR and DIAL Systems: Applicable to differential absorption LIDAR, remote sensing, and active mid-infrared illumination systems requiring a compact high-power QCL laser around 4 microns.
  • Hyperspectral and Active Infrared Imaging: Useful as an illumination source for active MIR imaging, hyperspectral imaging, chemical imaging, and scene illumination in the mid-wave infrared region.
  • Defense, Security, and Hazard Detection: ITAR-free 4 µm MIR QCL technology can support security screening, chemical threat detection, situational awareness, and hazardous material identification applications.
  • Infrared Countermeasure and DIRCM Research: High-power pulsed mid-infrared output is suitable for laboratory research, testing, and development of MIR optical systems, jamming concepts, and infrared threat simulation platforms where applicable.
  • Detector Testing and Calibration: Can be used to characterize and calibrate mid-infrared detectors, MCT detectors, InAs/InSb detectors, thermal cameras, IR sensors, and MWIR imaging systems.
  • MWIR Camera and Sensor Evaluation: Provides a controlled 4 µm laser source for testing infrared cameras, laser warning sensors, imaging arrays, and optical assemblies operating in the mid-wave infrared band.
  • FTIR and Broadband Source Replacement: A high-brightness MIR QCL source can be used in specialized spectroscopy setups where higher spectral brightness and pulsed laser output are preferred over conventional thermal IR sources.
  • Combustion Diagnostics: Supports optical diagnostics in engines, flames, turbines, burners, and combustion chambers for measuring temperature, species concentration, and gas dynamics using mid-infrared absorption techniques.
  • Automotive and Aerospace Emissions Testing: Suitable for MIR laser-based exhaust analysis, combustion research, propulsion testing, and emissions monitoring in automotive, aviation, and aerospace applications.
  • Chemical Analysis and Laboratory Research: Enables molecular spectroscopy, reaction monitoring, vapor-phase chemical analysis, and fundamental research requiring a reliable 4 µm quantum cascade laser source.
  • Pharmaceutical and Biotechnology Analysis: Can be integrated into MIR analytical instruments for non-contact chemical identification, process analytical technology, quality control, and spectroscopy-based material verification.
  • Medical and Breath Analysis Research: Applicable to research systems for mid-infrared breath analysis, biomarker detection, and non-invasive diagnostic spectroscopy where target molecules absorb near the 4 µm region.
  • Food and Agriculture Monitoring: Useful for detecting volatile compounds, monitoring storage atmospheres, evaluating packaging integrity, and supporting MIR spectroscopy in food quality and agricultural research.
  • Materials Identification and Polymer Analysis: Suitable for mid-infrared material analysis, polymer characterization, coating inspection, residue detection, and chemical fingerprinting using MIR absorption features.
  • Semiconductor and Thin-Film Metrology: Can support optical characterization, process monitoring, wafer-level inspection, and thin-film analysis in semiconductor and advanced materials manufacturing.
  • N

Frequently Asked Questions

What is the PowerMir 4 µm QCW quantum cascade laser used for?
The PowerMir 4 µm QCW QCL is a mid-infrared high-power quantum cascade laser system designed for applications requiring strong emission around 4 microns, such as gas sensing, MIR spectroscopy, infrared countermeasure research, materials analysis, and OEM integration. Its high average power, quasi-CW pulsed operation, and ITAR-free status make it suitable for both laboratory and industrial deployments.
What wavelength does this 4 µm QCW QCL emit?
This laser emits around 4 µm, with a specified central wavelength of 4 µm ± 0.1 µm. The maximum average optical power is specified over the 3.85 µm to 4.15 µm spectral band.
What output power options are available for the PowerMir 4 µm QCL?
The PowerMir 4 µm QCW QCL is available in several average optical power configurations, including versions above 1 W, below 500 mW, and below 100 mW. The
Is the PowerMir 4 µm quantum cascade laser ITAR free?
Yes. The datasheet specifies that mirSense PowerMir lasers are manufactured in France and are ITAR free. In addition, the
What is QCW operation and why is it useful for a high-power MIR QCL?
QCW, or quasi-continuous-wave operation, means the laser operates in high-duty-cycle pulsed mode rather than true continuous wave. For high-power mid-infrared QCLs, QCW operation helps improve wall-plug efficiency and reduce thermal dissipation while still enabling high average optical output power. This is especially useful for compact OEM modules and benchtop systems where heat management is important.
What beam quality and divergence does the 4 µm PowerMir QCL provide?
The laser provides a TM00 Gaussian beam with vertical linear polarization greater than 98%. With the standard beam option, the far-field full-angle divergence is specified as less than 6 mrad horizontally and less than 4 mrad vertically, with a slightly elliptical beam shape. A circular beam option is also available, typically producing an output beam diameter below 3 mm.
What system configurations are available for this 4 µm QCW QCL?
The PowerMir 4 µm QCL can be supplied in multiple configurations, including a plug-and-play benchtop turnkey laser system, an OEM laser driver plus QCL module, or an HHL-packaged laser. This flexibility allows users to select a ready-to-use laboratory source or integrate the laser into custom mid-infrared instruments and production systems.

Got more questions? Use the inquiry form to ask the supplier directly.
