QuickSwitch Hybrid Pulsed Laser Diode with Shortest Pulse Duration
Description
LASER COMPONENTS Canada has developed a hybrid pulsed laser diode with the currently shortest pulse duration in the world. In one second, the QuickSwitch PLD generates up to 200,000 laser pulses with a typical duration of 2.5 ns. Depending on the operating voltage, it achieves an optical peak power of up to 89 watts.
A high current switch, charge storage capacitor, and pulsed laser diode are all embedded in a small hermetic package which provides EMI shielding when the switch is active.
The high peak power laser with short pulse width and high frequency enables more precise distance measurement in LiDAR and other time-of-flight applications. With high kHz pulse frequencies, the device is also ideal for scanning.
QuickSwitch Hybrid Pulsed Laser Diode with Shortest Pulse Duration
Specifications |
|
|---|---|
| Output Power (avg): | 89 W |
| Wavelength: | 0.905 um |
| Pulse Duration: | 2.4-3ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
Features
Hermetic TO-56 package
905 nm triple junction laser diode
Pulse width of 2.5 ns typical
Low voltage charge capacitor
Pulse frequency: up to 200 kHz
Available for mass production
Applications
Autonomous vehicles
Drones
Robotics
Safety&Security
Scanning
3D mapping
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
Laser Components USA, Inc. -
On FindLight:
since 2017
Frequently Asked Questions
The QuickSwitch PLD has the currently shortest pulse duration in the world with a typical duration of 2.5 ns.
The QuickSwitch PLD can generate up to 200,000 laser pulses in one second.
Depending on the operating voltage, the QuickSwitch PLD can achieve an optical peak power of up to 89 watts.
The QuickSwitch PLD is suitable for a variety of applications, including LiDAR and other time-of-flight applications, scanning, autonomous vehicles, drones, robotics, safety and security, and 3D mapping.

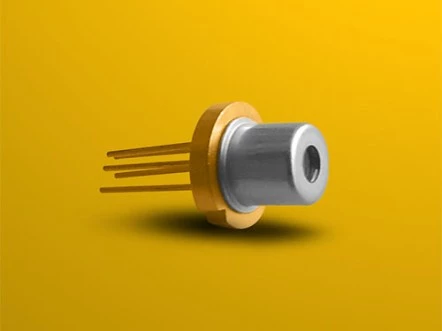

The QuickSwitch PLD comes in a hermetic TO-56 package that provides EMI shielding when the switch is active.
