Description

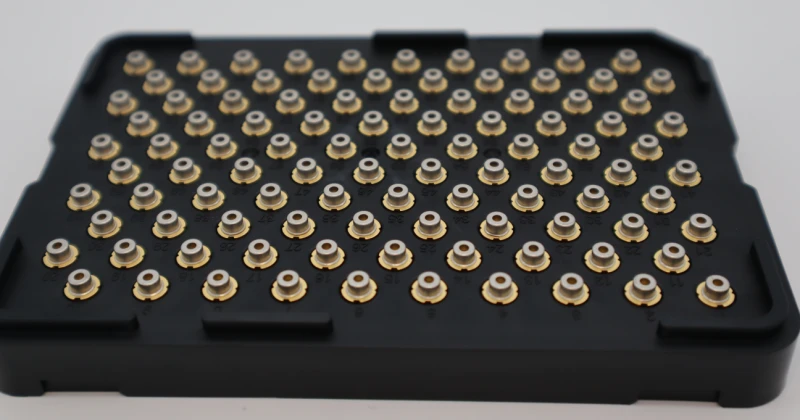

The QSI 650nm 50mw Red Laser Diode QL65J7SA is a high-performance component designed to deliver precision and reliability in various demanding environments. Operating at a wavelength of 650nm, this laser diode offers an optical output power of 50mW, making it an ideal choice for applications that require consistent and powerful laser performance. Its continuous wave (CW) operation ensures stable and uninterrupted laser emission, which is crucial for both medical and industrial optical sensor applications.
Encased in a compact 5.6mm package, the QL65J7SA/B/C red laser diode module is engineered for efficiency and ease of integration into existing systems. The laser diode operates within a temperature range of -10°C to +70°C, ensuring functionality in a wide array of environmental conditions.
Additionally, its robust design allows for storage temperatures ranging from -40°C to +85°C, providing flexibility in handling and storage. The QL65J7SA/B/C red laser diode is designed with user safety and device longevity in mind. It incorporates features to prevent damage from electrostatic discharge (ESD) and surge currents, which are critical for maintaining the integrity of the laser diode during operation. Proper grounding and the use of anti-static measures are recommended to safeguard the device.
Furthermore, attention to soldering practices, such as maintaining a die-pad temperature below 200°C and utilizing a heat sink, is essential to ensure optimal performance and durability of the laser diode.
Notes on order quantity options and delivery times to the USA:
Minimum Order Quantity (MOQ): 10 (in multiples of 10)
Price for QTY 50: $500
Price for QTY 100: $850
Price for QTY 500: $4,000
Price for QTY 1000: $7,500
Delivery time to the USA: 5 to 7 days
Estimated tariff for the USA: 25%
QSI QL65J7SA 650nm 50mW Red Laser Diode for Medical and Industrial Use
Specifications
| Center Wavelength: | 0.65 um |
|---|---|
| Output Power: | 50 mW |
| Optical Output Power: | 50 mW |
| Laser Diode Reverse Voltage: | 2 V |
| Photo Diode Reverse Voltage: | 30 V |
| Beam Angle ∆θ II: | -3 - 3 deg |
| Beam Angle ∆θ ⊥: | -3 - 3 deg |
| Operating Temperature: | -10 ~ +70 ℃ |
| Optical Distance ∆X, ∆Y, ∆Z: | ±60 μm |
| Storage Temperature: | -40 ~ +85 ℃ |
| Threshold Current: | 30 - 60 mA |
| Operating Current: | 90 - 120 mA |
| Operating Voltage: | 2.6 - 3.0 V |
| Slope Efficiency: | 1.0 mW/mA |
| Lasing Wavelength: | 653 - 667 nm |
| Beam Divergence: | 6 - 12 deg |
| FWHM: | 15 - 25 deg |
| Monitor Current: | 0.01 - 1.0 mA |
| Minimum Order Quantity: | 10 diodes (in multiples of 10) |
| Price For QTY 50: | $500 |
| Price For QTY 100: | $850 |
| Price For QTY 500: | $4,000 |
| Price For QTY 1000: | $7,500 |
| ECCN: | EAR99 |
| HTS: | 8541.41.0000 |
| Approximate Delivery Time To USA: | 5 to 7 days |
| Estimated Tariff In USA: | 25% |
Download Data Sheet
Features
- 650nm Red Laser: This red diode laser provides a bright and visible red laser beam, ideal for various applications.
- 50mW Optical Output Power: Delivers a powerful and consistent laser output for demanding tasks.
- Continuous Wave (CW) Laser: Ensures a stable and uninterrupted laser operation.
- Single Transverse / TE Mode Laser: Offers high beam quality and precision.
- Compact 5.6mm Package: Designed for easy integration into various systems and devices.
- Wide Operating Temperature Range: Functions effectively between -10°C and +70°C, suitable for diverse environments.
- Robust Electrical Characteristics: Features a reverse voltage of 2V for the laser diode and 30V for the photo diode.
- Efficient Slope Efficiency: Provides a slope efficiency of 1.0 mW/mA, ensuring energy-efficient performance.
- Precise Beam Divergence: Offers a beam divergence of 6° to 12° parallel and 15° to 25° perpendicular, allowing for accurate targeting.
- Stable Lasing Wavelength: Operates within a wavelength range of 653nm to 667nm, ensuring consistent performance.
- Durable Design: Built to withstand storage temperatures from -40°C to +85°C, ensuring longevity and reliability.
- Advanced Safety Features: Includes precautions against surge current and electrostatic discharge (ESD) to protect the laser diode.
Applications
- Medical
- Industrial Optical Sensor
- Metrology
- Inspection
- Spectroscopy
Frequently Asked Questions
What is the wavelength of the QL65J7SA/B/C laser diode?
What is the maximum optical output power of the QL65J7SA/B/C diode laser?
What are the operating temperature limits for the QL65J7SA/B/C red laser diode?
What precautions should be taken to prevent damage to the QL65J7SA/B/C laser diode?
What is the recommended soldering temperature for the QL65J7SA/B/C laser?
What is the beam divergence of the QL65J7SA/B/C laser?
What applications are suitable for the QL65J7SA/B/C laser diode?
