Description

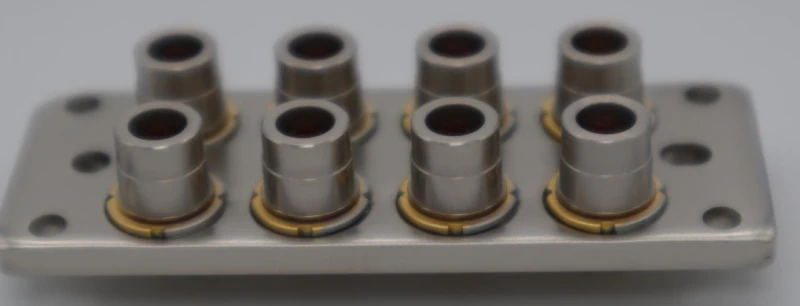

Introducing the Nichia Blue Laser Diode Bank at 455nm and 5.4W output power, part number NUBM0F, a cutting-edge innovation from Nichia Corporation. This advanced laser diode bank, referred to as "LD-Bank," is designed to deliver exceptional performance and reliability. The LD-Bank incorporates a laser diode with a collimator lens, ensuring precise and efficient operation. This product is engineered to meet the demands of various applications, providing a robust solution for industries requiring high-quality laser technology.
The Nichia Blue Laser Diode Bank is crafted with meticulous attention to detail, ensuring optimal performance under rigorous conditions. With a forward current of 3.0A during continuous wave (CW) operation and a maximum allowable forward current of 3.5A, this laser diode bank is built to withstand demanding environments. The device operates efficiently within a temperature range of 0 to 70 degrees Celsius, making it suitable for a wide array of operational settings.
One of the standout features of the Nichia Blue Laser Diode Bank is its impressive optical output power, reaching up to 42 watts at a forward current of 3.0A. The dominant wavelength of the laser diode is finely tuned between 450 and 460 nanometers, ensuring a consistent and reliable performance. Additionally, the forward voltage ranges from 29 to 37 volts, highlighting the device's efficiency and power management capabilities.
The Nichia Blue Laser Diode Bank is engineered for longevity, with an estimated lifetime of up to 10,000 hours at a cumulative failure rate of 50%. This durability is achieved through Nichia's rigorous testing and quality assurance processes, ensuring that the product meets the highest standards of reliability and performance. The laser diode bank's beam pointing tilt angle is precisely controlled, providing a stable and accurate laser output.
In summary, the Nichia Blue Laser Diode Bank NUBM0F is a state-of-the-art solution for those seeking high-performance laser technology. Its robust design, exceptional optical output, and extended lifespan make it an ideal choice for various industrial applications. Trust in Nichia's expertise and innovation to deliver a laser diode bank that meets and exceeds your expectations.
Notes on order quantity options and delivery times to the USA:
Minimum Order Quantity (MOQ): 10 (in multiples of 10)
Price for QTY 50: $10,000
Price for QTY 100: $18,500
Price for QTY 500: $82,500
Price for QTY 1000: $150,000
Delivery time to the USA: 5 to 7 days
Estimated tariff for the USA: 25%
Nichia 455nm 5.4W Blue Laser Diode Bank NUBM0F
Specifications
| Center Wavelength: | 0.455 um |
|---|---|
| Output Power: | 5400 mW |
| Forward Current: | 3.0 A |
| Optical Output Power: | 42 W |
| Dominant Wavelength: | 450 nm |
| Forward Voltage: | 29 V |
| Beam Pointing Tilt Angle: | 0.7 ° |
| Estimated Lifetime (50% Cumulative Failure Rate): | 10000 hrs |
| Estimated Lifetime (1% Cumulative Failure Rate): | 1000 hrs |
| Threshold Current: | 240 mA |
| Beam Divergence Parallel: | 0.65 ° |
| Beam Divergence Perpendicular: | 1.0 ° |
| Slope Efficiency: | 2.0 W/A |
| Minimum Order Quantity: | 10 diodes (in multiples of 10) |
| Price For QTY 50: | $10,000 |
| Price For QTY 100: | $18,500 |
| Price For QTY 500: | $82,500 |
| Price For QTY 1000: | $150,000 |
| ECCN: | EAR99 |
| HTS: | 8541.41.0000 |
| Approximate Delivery Time To USA: | 5 to 7 days |
| Estimated Tariff In USA: | 25% |
Download Data Sheet
Features
- High Optical Output Power: The Nichia Blue Laser Diode Bank (NUBM0F) delivers an impressive optical output power of 42W, making it ideal for high-performance applications.
- Efficient Forward Current: Operates at a forward current of 3.0A in continuous wave (CW) mode, ensuring stable performance.
- Wide Operating Temperature Range: Designed to function efficiently within a temperature range of 0°C to 70°C, providing flexibility for various environments.
- Dominant Wavelength: Emits light at a dominant wavelength of 450nm, perfect for applications requiring precise blue laser light.
- Robust Lifetime: Estimated lifetime of up to 10,000 hours at a 50% cumulative failure rate, ensuring long-term reliability.
- Compact Forward Voltage: Operates with a forward voltage range of 29V to 37V, optimizing power consumption.
- Minimal Beam Pointing Tilt Angle: Features a beam pointing tilt angle of up to 0.7°, ensuring precise targeting and minimal deviation.
- Low Threshold Current: The laser diode has a threshold current range of 240mA to 440mA, allowing for efficient activation.
- High Slope Efficiency: Achieves a slope efficiency of approximately 2.0 W/A, enhancing the conversion of electrical power to optical power.
- Beam Divergence: Offers controlled beam divergence with parallel and perpendicular angles, ensuring focused and directed laser output.
Applications
- Industrial Applications: The Nichia Blue Laser Diode Bank is ideal for industrial applications that require high power and precision, such as cutting, welding, and material processing.
- Medical Equipment: Utilized in medical devices for procedures that require precise laser technology, ensuring accuracy and safety.
- Scientific Research: Suitable for scientific experiments and research that demand reliable and consistent laser performance.
- Optical Communication: Used in optical communication systems for efficient data transmission over long distances.
- Display Technology: Enhances display technologies by providing vibrant and accurate color reproduction.
- Holography: Essential for holographic applications, offering high-quality and detailed holographic images.
- 3D Printing: Supports advanced 3D printing technologies by providing precise and controlled laser beams for detailed printing.
Frequently Asked Questions
What is the part number of the Nichia Blue Laser Diode Bank?
What is the forward current for continuous wave (CW) operation?
What are the absolute maximum ratings for forward and reverse current?
What is the operating temperature range for the LD-Bank?
What is the typical optical output power of the LD-Bank at 3.0A?
What is the estimated lifetime of the LD-Bank at a cumulative failure rate of 50%?
What is the dominant wavelength range for the LD-Bank?
