DWDM Butterfly Laser Module

Name: DWDM Butterfly Laser Module
Brand: CSRayzer Optical Technology
Availability: InStock

Description

The DWDM Butterfly Laser Module RZLD-1562.23-10-BP-FA-14 is a high-quality, high-power DFB laser diode with a butterfly package that's perfect for optical transmitter systems. With a built-in thermo-electric cooler (TEC), this laser diode is able to function properly in a variety of environments.

This laser module features high linearity Direct Modulation DFB laser technology and a built-in isolator, TEC, and thermistor. It has an operating temperature range of -20~ +70℃ (optional) and comes with a single-mode/PM fiber pigtail.

Investing in the DWDM Butterfly Laser Module RZLD-1562.23-10-BP-FA-14 means you'll have access to a reliable, high-quality laser diode that can meet the demands of any optical transmitter system. So why wait? Contact us today to learn more about this cutting-edge technology!

Specifications

Center Wavelength:	1.562 um
Output Power:	5 mW
Optical Isolation (optional):	35 dB
Spectral Width (-20 DB):	0.1 to 1 nm
Wavelength Temperature Coefficient:	0.08 to 0.12 nm/degC
Polarization Extinction Ratio:	17 dB
TEC Voltage:	2.6 V
TEC Current:	1.5 A

Download Data Sheet

Features

High linearity Direct Modulation DFB laser

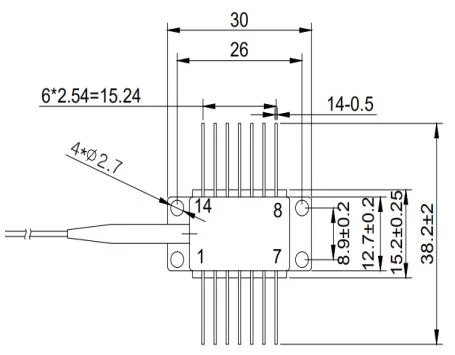

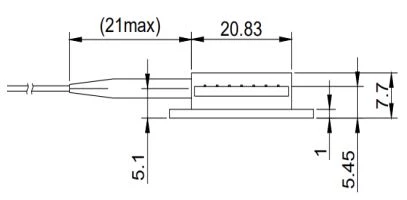

Butterfly package

Built-in Isolator, TEC, Thermistor

Operating Temperature -20~ +70℃ (Optional)

Single-mode/PM fiber pigtail

Applications

Optical transmitter systems

Fiber optic communication systems

High-speed data transmission

Telecommunications

Cable TV networks

Fiber-to-the-home (FTTH) applications

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

CSRayzer Optical Technology

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the operating temperature range for the RZLD-1562.23-10-BP-FA-14?

The operating temperature range is -20~ +70℃ (optional).

What type of fiber pigtail does the RZLD-1562.23-10-BP-FA-14 come with?

The laser module comes with a single-mode/PM fiber pigtail.

What is the butterfly package?

The butterfly package is a type of packaging used for laser diodes that includes a heatsink, thermoelectric cooler (TEC), and optical isolator to protect the laser diode from environmental factors.

What are the potential applications of the RZLD-1562.23-10-BP-FA-14?

This laser module is suitable for use in optical transmitter systems, fiber optic communication systems, high-speed data transmission, telecommunications, cable TV networks, and fiber-to-the-home (FTTH) applications.

Can the RZLD-1562.23-10-BP-FA-14 be used in harsh environments?

Yes, the built-in thermo-electric cooler (TEC) allows the laser diode to function properly in a variety of environments. However, it's important to ensure that the operating temperature range is not exceeded.

How does the RZLD-1562.23-10-BP-FA-14 ensure high linearity?

The RZLD-1562.23-10-BP-FA-14 utilizes high linearity Direct Modulation DFB laser technology, which reduces distortion in the optical signal and improves the overall performance of the laser diode. This makes it a great choice for applications that require high linearity, such as optical transmission systems and telecommunications.

What is the operating temperature range of the DWDM Butterfly Laser Module?

The operating temperature range is -20~ +70℃ (optional).

What are the features of the DWDM Butterfly Laser Module?

The features include high linearity Direct Modulation DFB laser, butterfly package, built-in isolator, TEC, and thermistor, and a single-mode/PM fiber pigtail.

What applications is the DWDM Butterfly Laser Module suitable for?

The module is suitable for optical transmitter systems, fiber optic communication systems, high-speed data transmission, telecommunications, cable TV networks, and fiber-to-the-home (FTTH) applications.

Does the DWDM Butterfly Laser Module come with a built-in thermo-electric cooler?

Yes, the module has a built-in thermo-electric cooler (TEC) that allows it to function properly in various environments.

Where can I find more information about the DWDM Butterfly Laser Module?

You can find more information on the Specialist in Special Optic Devices website at www.csrayzer.cn or contact them directly at +86-27-87697602.
