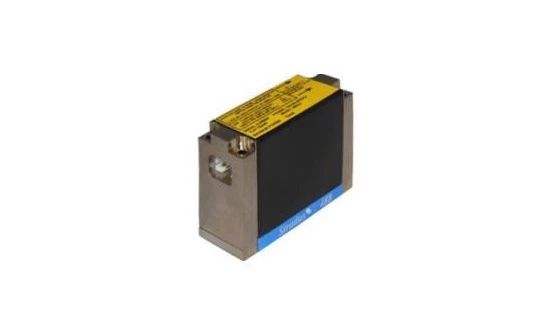

Stradus® Lite OEM Laser Head 375-785nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
The Stradus® Lite diode laser module from Vortran Laser Technology, Inc. is a groundbreaking innovation in the realm of laser technology, designed specifically for applications in the medical, biomedical, and industrial sectors. This product is a testament to Vortran's commitment to delivering high-performance laser solutions at an economical price point. The Stradus® Lite is an ideal choice for those seeking a compact yet powerful laser module that does not compromise on quality or efficiency.
One of the standout features of the Stradus® Lite is its patented sealed optical cavity, which ensures exceptional beam quality and stability. This design is integral in maintaining a low optical noise environment, which is crucial for precision-driven tasks. The module operates in a continuous wave (CW) mode, managed by an internal microprocessor, eliminating the need for external electronics and simplifying the setup process. This self-contained system is engineered for ease of use, requiring only a DC power supply to function efficiently.
The Stradus® Lite's compact design does not detract from its performance. With a remarkably small footprint, it integrates seamlessly into various OEM applications. The module's lightweight construction, weighing only 66 grams, further enhances its suitability for diverse environments. Vortran Laser Technology, Inc. has ensured that the Stradus® Lite meets rigorous standards, including RoHS compliance for both the EU and China, and is equipped with ESD protection to class 4 standards. This laser module is a prime example of Vortran's philosophy of delivering low cost without compromise.
Stradus® Lite OEM Laser Head 375-785nm
Specifications |
|
|---|---|
| Center Wavelength: | 0.375 um |
| Output Power: | 100 mW |
| Spatial Mode: | TEM00 |
| Beam Type: | Elliptical (~2:1 or 3:1) |
| Beam Divergence: | <1.0 mrad |
| M² (typical): | < 1.25 |
| Pointing Stability: | < 5 µrad/⁰C |
| Power Stability (over 24 Hours): | < 0.5% |
| Polarization Orientation: | Vertical ±5⁰ |
| Polarization Extinction Ratio: | >100:1 |
| Input Power (Head): | 5V DC, 1.5A (max) |
| Storage Temperature: | -10⁰C to +60⁰C |
| Operating Temperature: | +10⁰C to +45⁰C |
| Laser Head Weight: | 66g |
| CDRH Class: | Class IIIb |
| ESD Protection: | Class 4 |
| RoHS Compliance: | EU and China |
Features
- Versatile Applications: Ideal for Medical, Biomedical, and Industrial uses.
- Patented Sealed Optical Cavity: Ensures durability and protection against environmental factors.
- Exceptional Beam Quality: Provides excellent beam stability and low optical noise.
- Compact Design: Self-contained and compact for easy integration into various systems.
- OEM Head Only: Designed for original equipment manufacturers seeking high performance.
- Wide Wavelength Range: Operates within 375 - 785 nm with center wavelength typically +/-5 nm.
- Power Output: Available in 5-100 mW power range.
- Superior Spatial Mode: TEM00 beam type for precise applications.
- Elliptical Beam: Beam type is elliptical with a ratio of approximately 2:1 or 3:1.
- Minimal Beam Divergence: Less than 1.0 mrad, ensuring focused output.
- High Beam Quality: M² typically less than 1.25.
- Precise Beam Centration: Less than 0.5 mm for accurate targeting.
- Accurate Beam Alignment: Less than 5 mrad for consistent performance.
- Stable Pointing: Pointing stability is less than 5 µrad/°C.
- Excellent Power Stability: Power stability is less than 0.5% over 24 hours.
Applications
- Medical Diagnostics & Imaging: Provides stable, high-quality beams for fluorescence imaging and diagnostic systems.
- Biomedical Research: Ideal for optical trapping, spectroscopy, and cellular analysis applications.
- Industrial Alignment & Inspection: Supports precision alignment, metrology, and inspection systems requiring compact laser sources.
- OEM Integration: Designed for integration into end-user systems demanding reliable, cost-effective laser heads with minimal footprint.
Frequently Asked Questions
The Stradus Lite diode laser module is the economical version of the standard Stradus laser module. It is a CW mode operation only with microprocessor control with no external electronics required.
The Stradus Lite diode laser module can be used in medical, biomedical, and industrial applications.
The polarization extinction ratio of the Stradus Lite diode laser module is >100:1.
The wavelength range of the Stradus Lite diode laser module is 375 - 785 nm.
The weight of the Stradus Lite diode laser module is 66g.
