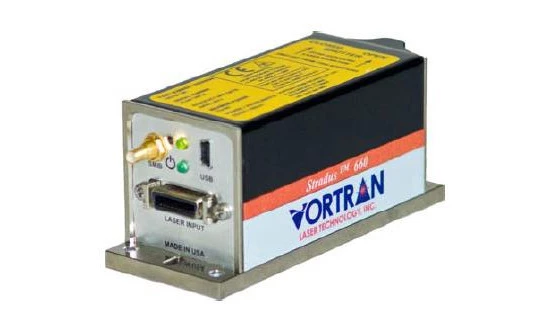

Stradus® 660-100 Diode Laser Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
The Stradus® 660-100 Diode Laser Module by Vortran Laser Technology, Inc. is an advanced, fully integrated laser solution designed for maximum efficiency and reliability. This self-contained, plug-and-play module features a patented sealed optical cavity, ensuring exceptional power stability and beam pointing accuracy over time and varying temperatures. With its compact design, the Stradus® laser module is ideal for environments where space is at a premium, yet performance cannot be compromised.
One of the standout features of the Stradus® 660-100 is its unparalleled beam quality and low noise operation. This is achieved through innovative electronics that enhance the module's performance, making it suitable for a wide range of applications. The laser operates at a wavelength of 660 nm with a power output of 100 mW, providing a robust solution for precise and demanding tasks.
For ease of use and enhanced control, the Stradus® 660-100 comes equipped with Vortran’s Graphical User Interface (GUI) software. This intuitive software allows users to remotely control and monitor the laser module via USB or RS-232 connections. The module supports both analog and digital modulation, offering flexibility and adaptability for various operational requirements.
Engineered with the user in mind, the Stradus® 660-100 is compliant with EU and China RoHS standards and features ESD protection, ensuring safe and reliable operation. Its power stability, pointing stability, and polarization characteristics are designed to meet the rigorous demands of medical, biomedical, and industrial applications. With continuous improvement processes in place, Vortran Laser Technology, Inc. ensures that the Stradus® 660-100 remains at the forefront of laser technology.
Stradus® 660-100 Diode Laser Module
Specifications |
|
|---|---|
| Center Wavelength: | 0.66 um |
| Output Power: | 100 mW |
| Spatial Mode: | TEM 00 |
| Small Beam: | ~1.1 mm, ~1.0 mrad |
| Standard Beam: | ~1.4 mm, ~0.6 mrad |
| M² (typical): | < 1.25 |
| Pointing Stability: | < 5 µrad/⁰C |
| Power Stability: | < 0.5% over 24 hours |
| Polarization Orientation: | Vertical ±2⁰ |
| Polarization Extinction Ratio: | >100:1 |
| Input Power (Head): | 12V DC, 1.5A (max) |
| Input Power (Control Box): | 90‐250 VAC, 50/60Hz |
| Storage Temperature: | -10⁰C to +60⁰C |
| Operating Temperature: | +10⁰C to +45⁰C |
| Laser Head Weight: | 210g |
| Communication: | Mini‐USB and RS‐232 |
| CDRH Class: | Class IIIb |
| ESD Protection: | Class 4 |
| EU Compliance: | CE Mark Certified with control box |
| RoHS Compliance: | EU and China |
Features
- Wavelength 660 nm: Provides bright red emission for diverse optical applications
- High Power Output: 100 mW with exceptional stability and low RMS noise
- Excellent Beam Quality: TEM00 mode with M² < 1.25 for precise focusability
- Outstanding Power Stability: <0.5% variation over 24 hours ensures reliability
- Ultra Low Noise: RMS noise <0.15% from 10 Hz to 10 MHz for clean signal output
- Fast Modulation Capability: Supports digital up to 200 MHz and analog up to 500 kHz
- Compact & Integrated Design: Self-contained module with sealed optical cavity
- User-Friendly Interface: Remote control via USB or RS-232 with GUI software
- Regulatory Compliance: CE Mark certified and RoHS compliant for global markets
Applications
- Medical Diagnostics: Ideal for high-precision imaging and optical analysis
- Biomedical Research: Suitable for fluorescence excitation and lab instrumentation
- Industrial Measurement: Enables reliable alignment, inspection, and sensing
- OEM System Integration: Easily integrates into custom laser-based solutions
- Scientific Instrumentation: Provides stable performance for spectroscopy and R&D
Frequently Asked Questions
The Stradus diode laser module is a fully integrated, plug and play, and self-contained laser module with unparalleled power stability, beam pointing stability, and low noise over time and temperature.
The Stradus diode laser module has a USB or RS-232 interface with GUI for remote control and monitoring.
The Stradus diode laser module is suitable for medical, biomedical, and industrial applications.
The Stradus diode laser module can operate in the temperature range of +10⁰C to +45⁰C.
The power output of the Stradus diode laser module is 100 mW (-0%, +10%).
