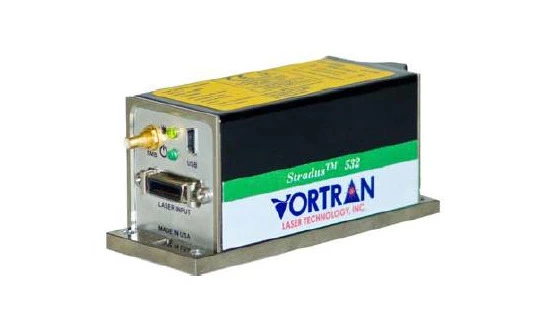

Stradus® 532-40 Diode Laser Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Vortran Laser Technology, Inc. presents the Stradus® 532-40 Diode Laser Module, a state-of-the-art laser solution designed for precision and reliability. This fully integrated, plug-and-play laser module is renowned for its exceptional performance and ease of use. The Stradus® laser is engineered with a patented sealed optical cavity, ensuring unmatched power stability and beam pointing accuracy across various conditions. Its innovative electronics and design guarantee low noise and consistent performance, making it a top choice for professionals in various fields.
One of the standout features of the Stradus® 532-40 is its excellent beam quality, characterized by a TEM00 spatial mode and a beam circularity of over 90%. The laser's beam diameter is approximately 0.8 mm, with a divergence of around 1.0 mrad, ensuring precise and focused output. With a power output of 40 mW and a wavelength of 532 nm ± 1, this laser module is ideal for applications requiring high precision and stability.
The Stradus® 532-40 is designed with user convenience in mind. It features a robust Graphical User Interface (GUI) software that allows users to control and monitor the laser module remotely via USB or RS-232 connections. This capability ensures seamless integration into existing systems, whether for OEM applications or end-user systems. The laser module is compact and self-contained, making it easy to incorporate into various setups without compromising on performance.
In addition to its technical prowess, the Stradus® 532-40 is built to meet rigorous standards of safety and compliance. It is classified as a CDRH Class IIIb laser and features ESD protection of Class 4. The module is also CE Mark Certified with the control box and complies with RoHS standards in both the EU and China. With its combination of advanced technology and user-friendly features, the Stradus® 532-40 is an excellent choice for medical, biomedical, and industrial applications.
Stradus® 532-40 Diode Laser Module
Specifications |
|
|---|---|
| Center Wavelength: | 0.532 um |
| Output Power: | 40 mW |
| Spatial Mode: | TEM 00 |
| Beam Diameter: | ~0.8 mm (1/e^2) |
| Beam Divergence: | ~1.0 mrad |
| M² (typical): | < 1.25 |
| Polarization Orientation: | Vertical ±2⁰ |
| Polarization Extinction Ratio: | >100:1 |
| Input Power (Control Box): | 90‐250 VAC, 50/60Hz |
| Storage Temperature: | -10⁰C to +60⁰C |
| Operating Temperature: | +10⁰C to +45⁰C |
| Laser Head Weight: | 210g |
| Communication: | Mini‐USB and RS‐232 |
| CDRH Class: | Class IIIb |
| ESD Protection: | Class 4 |
| EU Compliance: | CE Mark Certified with control box |
| RoHS Compliance: | EU and China |
Features
- Wavelength (nm): 532 ± 1
- Power Output (mW): 40 (‐0%, +10%)
- Spatial Mode: TEM 00
- Beam Diameter (mm, 1/e²): ~0.8
- Beam Divergence (mrad): ~1.0
- M² (typical): < 1.25
- Beam Circularity: > 90%
- Beam Centration (mm): < 0.5
- Beam Alignment (mrad): < 5
- Pointing Stability (µrad/°C): < 5
- Power Stability (over 24 hours): < 0.5%
- Polarization Orientation: Vertical ±2°
- Polarization Extinction Ratio: >100:1
Applications
- Biomedical Research & Imaging: Ideal for fluorescence excitation in microscopy and imaging systems requiring stable 561 nm illumination.
- Flow Cytometry: Provides reliable excitation for precise cell analysis in life science laboratories.
- Industrial Alignment & Inspection: Suitable for precision alignment and optical inspection tasks.
- Scientific Instrumentation: Integrates into OEM and laboratory systems demanding high stability and low noise laser sources.
Frequently Asked Questions
The Stradus® diode laser module is a fully integrated, plug and play, and self-contained laser module.
The Stradus® diode laser module is used in medical, biomedical, and industrial applications.
The operating temperature range of the Stradus® diode laser module is +10⁰C to +45⁰C.
The Stradus® diode laser module has a Mini-USB and RS-232 communication interface.
The power output of the Stradus® diode laser module is 40 (‐0%, +10%) mW.
