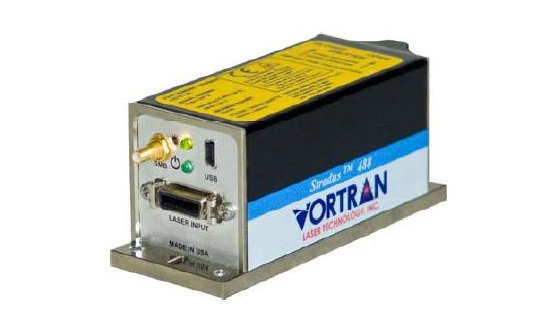

Stradus® 488‐50 Diode Laser Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
The Stradus® 488-50 Diode Laser Module by Vortran Laser Technology, Inc. represents a pinnacle of precision and reliability in laser technology. This fully integrated, plug-and-play laser module is designed to deliver exceptional performance with minimal user intervention. Its patented sealed optical cavity ensures that the laser maintains unparalleled power stability, beam pointing stability, and low noise levels, even under varying temperature conditions. This makes it an ideal choice for applications requiring consistent and precise laser output.
At the heart of the Stradus® 488-50 is its innovative electronic design, which allows for seamless integration into various systems. The module features both analog and digital modulation capabilities, offering flexibility and precision in laser control. Users can conveniently manage and monitor the laser's performance via Vortran’s Graphical User Interface (GUI) software, which supports remote operation through USB or RS-232 connections. This user-friendly interface ensures that operators can easily adjust settings and optimize the laser's output to meet specific application needs.
The Stradus® 488-50 is built with a focus on quality and compliance. It boasts excellent beam quality with a beam circularity of over 90% and a pointing stability of less than 5 µrad/°C. The laser module is CE Mark Certified with the control box and complies with EU and China RoHS standards, underscoring its commitment to safety and environmental responsibility. With its robust design and advanced features, the Stradus® 488-50 is well-suited for medical, biomedical, and industrial applications, providing users with a reliable and high-performance laser solution.
Stradus® 488‐50 Diode Laser Module
Specifications |
|
|---|---|
| Center Wavelength: | 0.488 um |
| Output Power: | 50 mW |
Features
- Wavelength: 488 ± 5 nm
- Power Output: 50 mW (-0%, +10%)
- Spatial Mode: TEM 00
- Beam Size: Small Beam: ~0.8 mm, ~1.0 mrad; Standard Beam: ~1.3 mm, ~0.5 mrad
- M² (typical): < 1.25
- Beam Circularity: > 90%
- Beam Centration: < 0.5 mm
- Beam Alignment: < 5 mrad
- Pointing Stability: < 5 µrad/°C
- Power Stability (over 24 hours): < 0.5%
- Polarization Orientation: Vertical ±2°
- Polarization Extinction Ratio: > 100:1
Applications
- Fluorescence Microscopy: Enables high-contrast imaging with stable 488 nm excitation
- Flow Cytometry: Provides precise laser excitation for cell analysis applications
- Spectroscopy: Ideal for Raman and absorption spectroscopy requiring low noise and high beam quality
- Biomedical Instrumentation: Supports diagnostic devices with reliable laser performance
- Industrial Inspection Systems: Facilitates precision alignment and optical measurement tasks
Frequently Asked Questions
The Stradus® diode laser module is a fully integrated, plug and play, and self‐contained laser module.
The Stradus® diode laser module is used in medical, biomedical, and industrial applications.
The power output of the Stradus® diode laser module is 50mW (‐0%, +10%).
The weight of the laser head of the Stradus® diode laser module is 210g.
The Stradus® diode laser module has a USB or RS‐232 interface with GUI.
