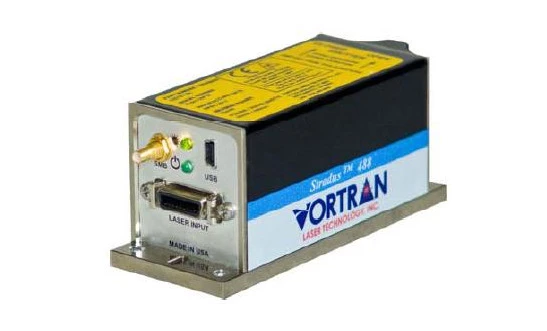

Stradus@ 488‐150 Diode Laser Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
The Stradus® 488-150 diode laser module by Vortran Laser Technology, Inc. represents the pinnacle of precision and reliability in laser technology. This fully integrated, plug-and-play module is designed for ease of use and exceptional performance across a wide range of applications. With a wavelength of 488 nm and a power output of 150 mW, the Stradus® laser is engineered to deliver consistent and reliable results, making it an ideal choice for professionals in the medical, biomedical, and industrial sectors.
One of the standout features of the Stradus® 488-150 is its patented sealed optical cavity, which ensures unparalleled power stability and beam pointing stability over time and varying temperatures. This innovative design, coupled with advanced electronics, results in a laser module with remarkably low noise levels and excellent beam quality. The module's beam circularity exceeds 90%, and its M² value is typically less than 1.25, showcasing its superior optical performance.
For enhanced user convenience, the Stradus® laser module is equipped with Vortran’s Graphical User Interface (GUI) software, allowing remote control and monitoring via USB or RS-232 interfaces. This feature, combined with both analog and digital modulation capabilities, provides users with the flexibility and control necessary for precise laser operation. The module's compact and self-contained design further enhances its usability, making it suitable for both OEM head and end-user systems.
Vortran Laser Technology, Inc. is committed to continuous improvement, ensuring that the Stradus® 488-150 remains at the forefront of laser technology. With CE and RoHS compliance, as well as Class IIIb CDRH classification, this laser module meets the highest standards of quality and safety. Whether for research, development, or industrial applications, the Stradus® 488-150 diode laser module is a reliable and powerful tool for professionals seeking excellence in laser technology.
Stradus@ 488‐150 Diode Laser Module
Specifications |
|
|---|---|
| Center Wavelength: | 0.488 um |
| Output Power: | 150 mW |
| Spatial Mode: | TEM 00 |
| Small Beam: | ~0.8 mm, ~1.0 mrad |
| Standard Beam: | ~1.2 mm, ~0.6 mrad |
| M² (typical): | < 1.25 |
| Beam Circularity: | > 90% |
| Polarization Orientation: | Vertical ±2⁰ |
| Polarization Extinction Ratio: | >100:1 |
| Input Power (Head): | 12V DC, 1.5A (max) |
| Input Power (Control Box): | 90‐250 VAC, 50/60Hz |
| Storage Temperature: | -10⁰C to +60⁰C |
| Operating Temperature: | +10⁰C to +45⁰C |
| Laser Head Weight: | 210g |
| Communication: | Mini‐USB and RS‐232 |
| CDRH Class: | Class IIIb |
| ESD Protection: | Class 4 |
| EU Compliance: | CE Mark Certified with control box |
| RoHS Compliance: | EU and China |
Features
- Wavelength (nm): 488 ± 5
- Power Output (mW): 150 (-0%, +10%)
- Spatial Mode: TEM 00
- Small Beam (mm, mrad): ~0.8, ~1.0
- Standard Beam (mm, mrad): ~1.2, ~0.6
- M² (typical): < 1.25
- Beam Circularity: > 90%
- Beam Centration (mm): < 0.5
- Beam Alignment (mrad): < 5
- Pointing Stability (µrad/⁰C): < 5
- Power Stability (over 24 hours): < 0.5%
- Polarization Orientation: Vertical ±2⁰
- Polarization Extinction Ratio: >100:1
Applications
- Biomedical Research & Imaging: Ideal for fluorescence excitation in microscopy and imaging systems requiring stable 561 nm illumination.
- Flow Cytometry: Provides reliable excitation for precise cell analysis in life science laboratories.
- Industrial Alignment & Inspection: Suitable for precision alignment and optical inspection tasks.
- Scientific Instrumentation: Integrates into OEM and laboratory systems demanding high stability and low noise laser sources.
Frequently Asked Questions
The Stradus diode laser module is a fully integrated, plug and play, and self-contained laser module.
The Stradus diode laser module has applications in medical, biomedical, and industrial fields.
The power output of the Stradus diode laser module is 150 mW (-0%, +10%).
The weight of the laser head of the Stradus diode laser module is 210g.
The Stradus diode laser module has a USB or RS-232 interface with GUI.
