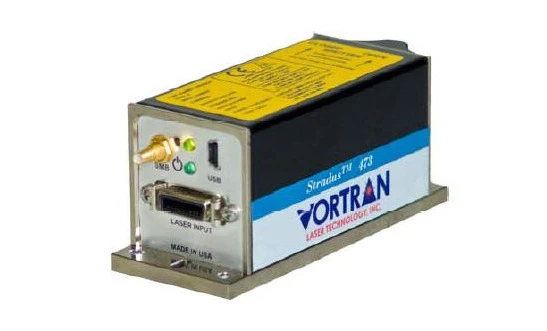

Stradus® 473‐80 Diode Laser Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
The Stradus® 473-80 diode laser module by Vortran Laser Technology, Inc. is a state-of-the-art, fully integrated, plug-and-play laser solution designed for precision and reliability. This compact and self-contained module features a patented sealed optical cavity, ensuring exceptional power stability and beam pointing stability. The innovative electronics incorporated into the Stradus® laser contribute to its unparalleled performance, maintaining low noise levels over varying time and temperature conditions.
Designed with user convenience in mind, the Stradus® laser module comes equipped with Vortran’s Graphical User Interface (GUI) software. This intuitive software allows users to control and monitor the laser module remotely via USB or RS-232 connections. The module's robust design and advanced features make it suitable for a wide range of applications, from medical and biomedical to industrial uses.
With a wavelength of 473 nm and a power output of 80 mW, the Stradus® 473-80 ensures precise and reliable performance. It operates within a temperature range of +10°C to +45°C, offering flexibility in various environments. The laser's beam quality is exceptional, with a TEM00 spatial mode, beam circularity greater than 90%, and pointing stability of less than 5 µrad/°C. This ensures that the Stradus® laser delivers consistent results, making it an ideal choice for demanding applications.
Vortran Laser Technology, Inc. is committed to continuous improvement, ensuring that their products meet the highest standards of quality and compliance. The Stradus® 473-80 is CE Mark Certified, RoHS compliant, and includes ESD protection. Located in Sacramento, CA, Vortran Laser Technology, Inc. is dedicated to providing cutting-edge laser solutions that meet the evolving needs of their customers.
Stradus® 473‐80 Diode Laser Module
Specifications |
|
|---|---|
| Center Wavelength: | 0.473 um |
| Output Power: | 80 mW |
| Spatial Mode: | TEM 00 |
| Small Beam: | ~0.8 mm, ~1.0 mrad |
| Standard Beam: | ~1.2 mm, ~0.6 mrad |
| M² (typical): | < 1.25 |
| Polarization Orientation: | Vertical ±2⁰ |
| Polarization Extinction Ratio: | >100:1 |
| Input Power (Head): | 12V DC, 1.5A (max) |
| Input Power (Control Box): | 90‐250 VAC, 50/60Hz |
| Storage Temperature: | ‐10⁰C to +60⁰C |
| Operating Temperature: | +10⁰C to +45⁰C |
| Laser Head Weight: | 210g |
| Communication: | Mini‐USB and RS‐232 |
| CDRH Class: | Class IIIb |
| ESD Protection: | Class 4 |
| EU Compliance: | CE Mark Certified with control box |
| RoHS Compliance: | EU and China |
Features
- Wavelength: 473 ± 5 nm
- Power Output: 80 mW (‐0%, +10%)
- Spatial Mode: TEM 00
- Beam Size: Small Beam ~0.8 mm, ~1.0 mrad; Standard Beam ~1.2 mm, ~0.6 mrad
- M² (typical): < 1.25
- Beam Circularity: > 90%
- Beam Centration: < 0.5 mm
- Beam Alignment: < 5 mrad
- Pointing Stability: < 5 µrad/°C
- Power Stability (over 24 hours): < 0.5%
- Polarization Orientation: Vertical ±2°
- Polarization Extinction Ratio: > 100:1
Applications
- Fluorescence Microscopy: Delivers stable 473 nm excitation for high-contrast imaging
- Flow Cytometry: Enables accurate cell analysis with low noise and stable beam output
- Spectroscopy: Supports Raman and absorption spectroscopy requiring precise blue wavelengths
- Biomedical Diagnostics: Ideal for devices needing reliable blue laser sources
- Industrial Metrology & Alignment: Provides precision alignment and measurement capabilities in manufacturing environments
Frequently Asked Questions
The Stradus diode laser module is a fully integrated, plug and play, and self-contained laser module.
The Stradus diode laser module is used in medical, biomedical, and industrial applications.
The power output of the Stradus diode laser module is 80 mW (-0%, +10%).
The Stradus diode laser module has a USB or RS-232 interface with GUI.
The weight of the Stradus diode laser module is 210g.
