Description
The Viento HD10 is the evolution of the Viento family of LWIR cameras, offering four times the resolution of its predecessor with the same state-of-the-art ten micron pixel architecture. Sierra-Olympia’s interface options package the DRS Leonardo camera core with a variety of interface options (USB, GigE, SDI, MIPI) that make it easy to integrate and demonstrate in a wide variety of OEM systems. Additionally, a comprehensive development kit is available for MIPI integrators, enabling streamlined integration and accelerated development.

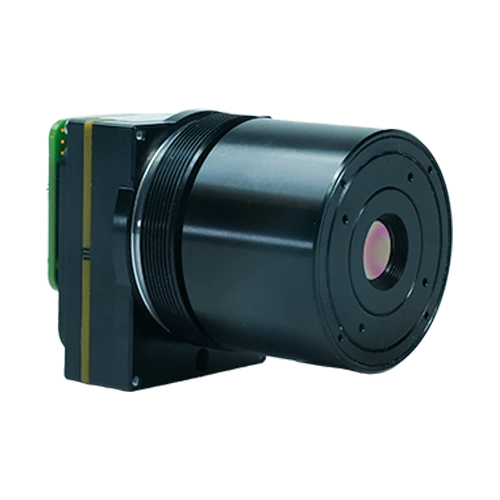

Viento HD10
Specifications
| Camera Type: | Industrial, Scientific, Security, Military, Other |
|---|---|
| Array Type: | Vanadium Oxide (VOx) Microbolometer |
| Spectral Band: | 8 – 14 um |
| # Pixels (Height): | 1280 |
| # Pixels (Width): | 1024 |
| Pixel Pitch: | 10 um |
| Array Cooling: | Uncooled |
| Frame Rate: | 30 Hz |
| Bit Depth: | 14 bit |
| NETD: | <30 mk |
| Operating Temperature: | -40 to +70 °C |
Download Data Sheet
Features
- 10 Micron Pixel Pitch
- USB, GigE, SDI, and MIPI connectors Available
- 1280 x 1024 Array Format
Applications
- Security & Surveillance
- Scientific and industrial
