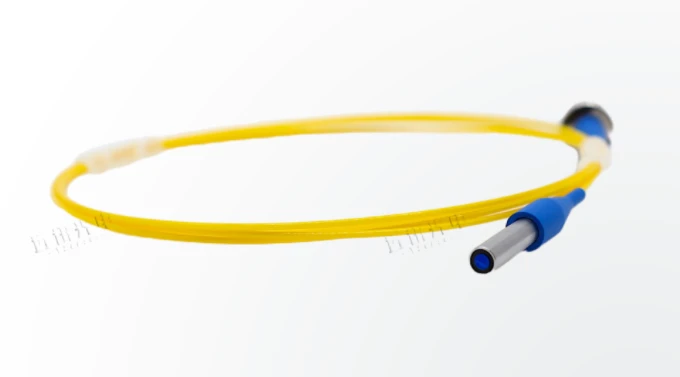

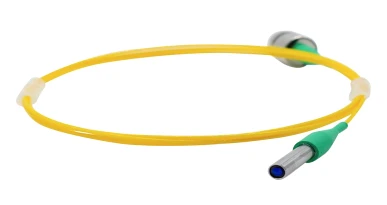

PM Fiber Optic Collimator for Fixed Working Distance
The PM Fiber Optic Collimator by Ysenser is engineered to deliver precision and reliability in optical applications. This collimator is designed to provide a fixed working distance, ensuring consistent performance across various operational environments. With a focus on precision, the collimator features a well-defined beam waist and divergence angle, making it an ideal choice for applications requiring exact beam alignment and stability. Manufactured with high-quality components, the collimator supports multiple wavelength options, including 633nm, 780nm, 850nm, 980nm, 1064nm, and 1310nm, each with a specific bandwidth tolerance. The product is optimized for minimal output loss and high return loss, ensuring efficient signal transmission and reception. The extinction ratio of ≥20dB further enhances the collimator's capability to maintain signal integrity, making it suitable for demanding optical systems. The collimator is packaged in a compact design with a standard Φ3.4mm*L14mm or Φ4.0mm*L20mm enclosure, depending on the model. Its robust construction is complemented by a range of working distances, from 100mm to 1000mm, catering to diverse application needs. The use of premium fiber types such as Nufern PM630, PM780, PM980, and Corning PM1300 ensures compatibility with a wide array of optical setups, enhancing the versatility and adaptability of the collimator in various technological fields.
Polarization-Maintaining Fiber Collimator
Specifications |
|
|---|---|
| Wavelength: | 600~1600nm |
| Bandwidth: | ±20mm |
| WD: | 100~1000mm |
| Waist Beam: | 0.37~1.55mm |
| Divergence Angle: | 0.7~4.4mrad |
| Package Dia.: | φ3.4mm， φ4.0mm |
| Extinction Ratio: | ≥18dB |
| Output Loss: | ≤0.35dB, ≤0.5dB |
| Return Loss: | ≥55dB |
| MFD: | 4.5+0.5um~10.1+0.5um |
| Fiber Type: | PM630-HP, PM780-HP, PM980-HP, PM1300-HP, PM1550-HP |
Features
- Precise Beam Waist: Available in various sizes, including 0.39mm, 0.85mm, 1.32mm, and more, with a tolerance of ±10% for optimized optical performance.
- Fixed Working Distances: Choose from fixed working distances of 50mm, 150mm, 300mm, 500mm, and 1000mm to suit your application needs.
- Divergence Angle: Low divergence angles ranging from 0.7mrad to 4.2mrad ensure minimal beam spread over distances.
- Wavelength Compatibility: Supports multiple wavelengths including 633nm, 780nm, 850nm, 980nm, 1064nm, and 1310nm with a bandwidth of ±20nm.
- High Extinction Ratio: Extinction ratio of ≥20dB ensures excellent polarization maintenance for high-quality signal transmission.
- Low Output and Return Loss: Output loss of ≤0.5dB and return loss of ≥55dB guarantee efficient signal transmission and minimal reflection.
- Fiber Compatibility: Compatible with Nufern PM630, PM780, PM980, and Corning PM1300 fibers, offering flexibility for various fiber optic systems.

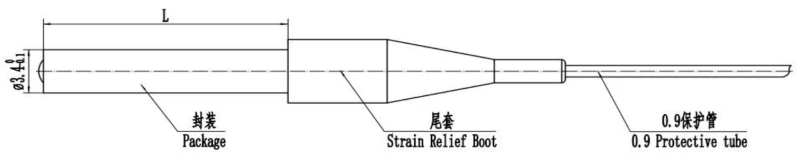

- Compact Package Design: Compact dimensions (Φ3.4mm*L14mm or Φ4.0mm*L20mm) facilitate easy integration into optical setups.
Applications
- Fiber Optic Collimation Systems: Ideal for converting divergent light from fiber optics into collimated beams with minimal aberration
- Laser Diode Beam Shaping: Useful in shaping and directing beams from laser diodes, particularly where Gaussian profiles are desired
- Optical Sensing and Detection: Enhances precision in sensing applications that require tightly controlled beam direction and low divergence
- Spectroscopy and Analytical Instruments: Supports accurate light delivery and collection in instruments used for material analysis and spectral diagnostics
- Optical Communication Systems: Suitable for coupling and transmitting optical signals in high-performance communication networks
- Biomedical and Life Sciences Equipment: Utilized in systems that require stable and well-aligned optical output, such as in microscopy or diagnostic devices
Frequently Asked Questions
The wavelength range for the PM Fiber Optic Collimators is available in 633nm, 780nm, 850nm, 980nm, 1064nm, and 1310nm, each with a bandwidth of ±20nm.
The extinction ratio for all models of the PM Fiber Optic Collimators is ≥20dB.
The output loss for the PM Fiber Optic Collimators is specified as ≤0.5dB for most models, and ≤0.35dB for some models.
The return loss for the PM Fiber Optic Collimators is specified as ≥55dB.
The collimators use Nufern PM630, PM780, PM980, and Corning PM1300 fiber types depending on the model.
The working distance for the collimators varies by model, with available distances of 100mm, 300mm, 500mm, and 1000mm.
The divergence angle ranges from 0.7mrad to 4.2mrad depending on the specific model of the collimator.
