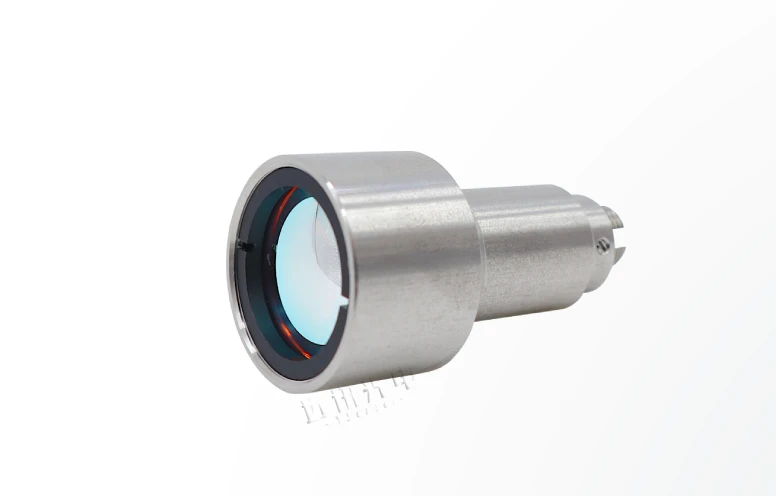

Large Beam Collimators for MM Fibers FC/APC Connector 450nm-1550nm
By using an air gap bonded lens, this collimator can provide better beam quality than aspherical lenses and achromatic lenses in terms of collimation performance. The design of a low aberration lens group can achieve a beam closer to a Gaussian beam, with smaller divergence angles and smaller wavefront errors.
Large Beam Collimators for MM Fibers FC/APC Connector 450nm-1550nm
Specifications
| Center Wavelength: | 520 nm |
|---|---|
| Bandwidth: | 60 nm |
| Numerical Aperture: | 0.27 |
| Effective Focal Length (EFL): | 34.3 mm |
| Beam Size (model Dependent): | 14.6 - 18.0 mm ± 10% |
| Divergence Angle (model Dependent): | 2.3 -11.8 mrad |
| Wavelength (model Dependent): | 450 - 1550 nm |
| Bandwidth: | ±30nm |
| Lens NA (model Dependent): | 0.25 - 0.27 |
| Input Fiber Type: | 62.5/125 |
| Transmittance: | ≥92% |
| EFL (model Dependent): | 33.5 - 37.1 mm |
| Manufacturer Part Number (MPN): | YSD-XXX-XXXX-FC/APC |
| FindLight SKU: | FL-23762 |
Download Data Sheet
Features
- Three Connector Options: FC/PC, FC/APC, SMA905
- Compatible with Narrow and Wide Key Connectors
- Compact structure
- Convenient for installation
- Custom options including wavelengths
- It is recommended to select YSenser's standard patch cords to improve the repeatability and consistency of the parameters
Applications
- Free-Space Optical Systems
- Laser Delivery Systems
- Spectroscopy
- LIDAR and Remote Sensing
- Optical Metrology
- Biomedical and Imaging Systems
- Optical Testing and Characterization
- Machine Vision and Illumination
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9002.90.9500 |
| Estimated US Tariff: | 25% |
Frequently Asked Questions
What are the available wavelengths for the YSD series?
The available wavelengths for the YSD series are 450nm, 488nm, 520nm, 633nm, 780nm, 850nm, and 1064nm.
What is the transmittance of the YSD-450-M2-B18K-FC/PC model?
The transmittance of the YSD-450-M2-B18K-FC/PC model is ≥92%.
What is the beam divergence angle for the YSD-520-M2-B18K-FC/PC model?
The beam divergence angle for the YSD-520-M2-B18K-FC/PC model is 2.2 mrad.
What input fiber types are supported by the YSD-850 series?
The YSD-850 series supports input fiber types of 62.5/125 and 105/125.
Are all models in the YSD series compatible with FC/PC connectors?
Yes, all models in the YSD series are compatible with FC/PC connectors.
What is the lens numerical aperture (NA) for the YSD-633-M2-B18K-FC/PC model?
The lens numerical aperture (NA) for the YSD-633-M2-B18K-FC/PC model is 0.27.
What is the beam size range for the YSD-1064 series?
The beam size for the YSD-1064 series ranges from 15.8mm to 19.4mm, with a tolerance of ±10%.
