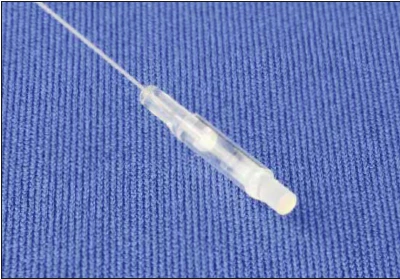

FUSED FIBER COLLIMATOR
OVERVIEW
OZ Optics offers fused fiber collimators designed to collimate light exiting a fiber to a desired beam diameter. In these components, the fiber and lens are fused together to produce a permanent connection with no air-glass interfaces, and with no epoxies in the optical path. The result is a compact collimator capable of handling extremely high laser powers, in excess of 1kW average power.
Applications
High power fiber optic device packaging, including isolators, ASE filters, beam combiners, splitters and integrated optics
Laser marking, laser machining
KEY FEATURES
Over 1 kW power handling
Low insertion loss
Low backreflection
Available in a wide range of wavelengths
Singlemode, multimode, polarization maintaining and
large mode area fiber versions available
No air-glass interfaces for maximum power handling
Compact size
